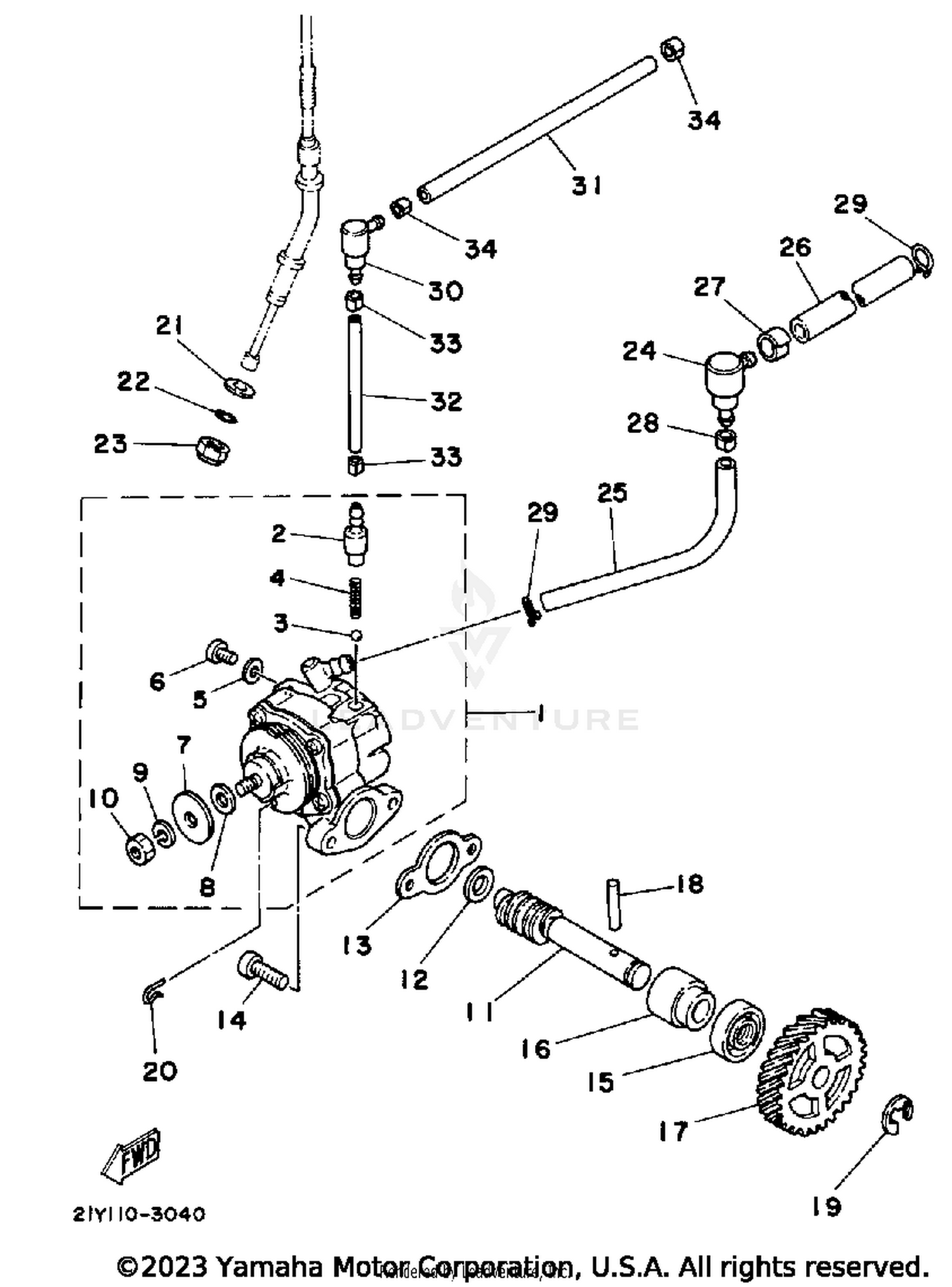

| Ref | Part Number | Description |
|---|
| 1 |
3X3-13101-00-00 |
OIL PUMP ASSEMBLY Price: $199.99 |
| 2 |
402-13552-00-00 |
NOZZLE Price: $11.99 |
| 3 |
93505-32002-00 |
BALL 5-32 Price: $2.90 |
| 4 |
90501-02018-00 |
SPRING, COMPRESSION Price: $10.49 |
| 5 |
90430-04004-00 |
GASKET Price: $10.49 |
| 6 |
98980-04008-00 |
SCREW, BIND This part replaces 98901-04008-00. Price: $3.55 |
| 7 |
137-13138-01-00 |
PLATE, ADJUSTING Price: $14.49 |
| 9 |
92990-05100-00 |
WASHER, SPRING Price: $0.35 |
| 10 |
95380-05600-00 |
NUT Price: $9.49 |
| 11 |
3X3-13175-00-00 |
SHAFT, WORM Price: $21.49 |
| 12 |
90201-08624-00 |
WASHER, PLATE Price: $11.49 |
| 13 |
126-13116-01-00 |
GASKET, PUMP CASE This part replaces 3MT-13116-00-00. Price: $9.99 |
| 14 |
97885-05016-00 |
SCREW, PAN HEAD This part replaces 98580-05016-00. Price: $4.60 |
| 15 |
93101-10002-00 |
OIL SEAL, S-TYPE Price: $9.49 |
| 16 |
137-13176-00-00 |
METAL, WORM SHAFT OUTER This part replaces 1E7-13176-00-00. Price: $7.49 |
| 17 |
2A6-13178-00-00 |
GEAR, PUMP DRIVE Price: $15.49 |
| 18 |
93603-22028-00 |
PIN, DOWEL Price: $4.05 |
| 19 |
99001-08600-00 |
CIRCLIP Price: $9.49 |
| 20 |
3X3-13133-00-00 |
CLIP Price: $2.23 |
| 21 |
92990-08600-00 |
WASHER, PLATE This part replaces 92901-08600-00. Price: $2.70 |
| 22 |
93210-07100-00 |
O-RING Price: $7.49 |
| 23 |
90185-08055-00 |
NUT, SELF-LOCKING Price: $10.49 |
| 24 |
2A6-13115-01-00 |
CONNECTOR, SCTN PPE Price: $10.49 |
| 25 |
90445-07176-00 |
HOSE (L200) This part replaces 90445-07219-00. Price: $7.70 |
| 26 |
5RB-24315-00-00 |
PIPE 5 This part replaces 90445-09100-00. Price: $8.49 |
| 27 |
90468-02078-00 |
CLIP Price: $8.49 |
| 28 |
90468-02025-00 |
CLIP Price: $10.49 |
| 29 |
90467-08003-00 |
CLIP, SCISSOR Price: $11.49 |
| 30 |
2A6-13165-01-00 |
UNAVAILABLE IN PRICE BOOK Price: Call Us |
| 31 |
90445-05N13-00 |
HOSE (L200) This part replaces 90445-05024-00. Price: $9.49 |
| 32 |
90445-05N13-00 |
HOSE (L200) This part replaces 90445-05019-00. Price: $9.49 |
| 33 |
90468-02033-00 |
CLIP Price: $9.49 |
