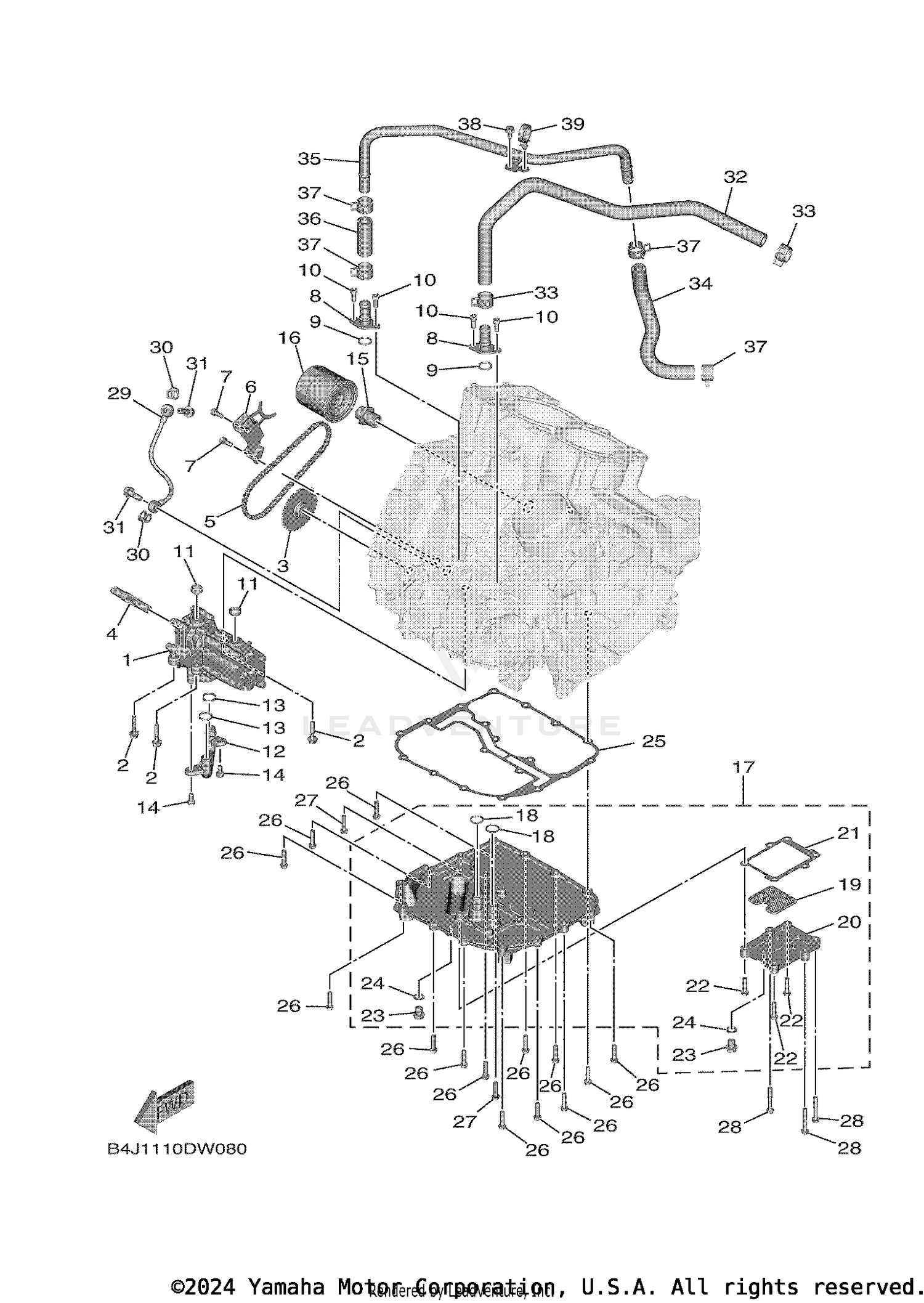

| Ref | Part Number | Description |
|---|
| 1 |
B1R-E3300-00-00 |
OIL PUMP ASSY Price: $223.99 |
| 2 |
95812-06030-00 |
BOLT, FLANGE Price: $2.15 |
| 3 |
B1R-E3355-00-00 |
SPROCKET, DRIVEN Price: $37.99 |
| 4 |
B1R-E3344-00-00 |
SHAFT, DRIVEN GEAR Price: $21.99 |
| 5 |
94582-53070-00 |
CHAIN (DID25SH-70LE) Price: $31.99 |
| 6 |
B1R-E3898-00-00 |
HOLDER Price: $24.99 |
| 7 |
91312-06014-00 |
BOLT This part replaces 90110-06168-00. Price: $5.49 |
| 8 |
B4D-E3115-00-00 |
CONNECTOR, SUCTION PIPE Price: $10.99 |
| 9 |
93210-16629-00 |
O-RING Price: $8.49 |
| 10 |
91317-06016-00 |
BOLT (4MY) This part replaces 90110-06193-00. Price: $1.25 |
| 11 |
5GJ-13475-00-00 |
GASKET Price: $5.99 |
| 12 |
B1R-13418-00-00 |
PIPE, OIL 2 Price: $45.99 |
| 13 |
93210-14003-00 |
O-RING Price: $9.49 |
| 14 |
91317-06012-00 |
BOLT This part replaces 90110-06182-00. Price: $9.49 |
| 15 |
90401-20011-00 |
BOLT, UNION Price: $41.99 |
| 16 |
1WD-E3440-21-00 |
ELEMENT ASSY, OIL CLEANER This part replaces 1WD-E3440-10-00. Price: $16.49 |
| 17 |
B1R-E3400-00-00 |
STRAINER COVER ASS Price: $134.99 |
| 18 |
93210-14003-00 |
O-RING Price: $9.49 |
| 22 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 23 |
90340-10003-00 |
PLUG, STRAIGHT SCREW Price: $9.49 |
| 24 |
90430-10148-00 |
GASKET Price: $5.99 |
| 25 |
B1R-E3414-00-00 |
GASKET, STRAINER C Price: $27.99 |
| 26 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 27 |
90105-06221-00 |
BOLT, FLANGE Price: $2.20 |
| 28 |
95022-06040-00 |
BOLT, FLANGE Price: $3.70 |
| 29 |
B1R-13171-00-00 |
PIPE, DELIVERY 2 Price: $53.99 |
| 30 |
B1R-13475-00-00 |
GASKET Price: $7.99 |
| 31 |
90401-08801-00 |
BOLT, UNION Price: $2.45 |
| 32 |
BG4-E316F-00-00 |
HOSE, OIL 1 Price: $25.99 |
| 33 |
90467-22097-00 |
CLIP Price: $10.49 |
| 34 |
BG4-E316G-00-00 |
HOSE, OIL 2 Price: $12.49 |
| 35 |
B4J-E3161-00-00 |
PIPE, DELIVERY 1 Price: $31.99 |
| 36 |
2HC-E3464-00-00 |
HOSE, OIL 1 Price: $22.99 |
| 37 |
90467-22097-00 |
CLIP Price: $10.49 |
| 38 |
95817-06012-00 |
BOLT, FLANGE This part replaces 90105-06181-00. Price: $1.95 |
