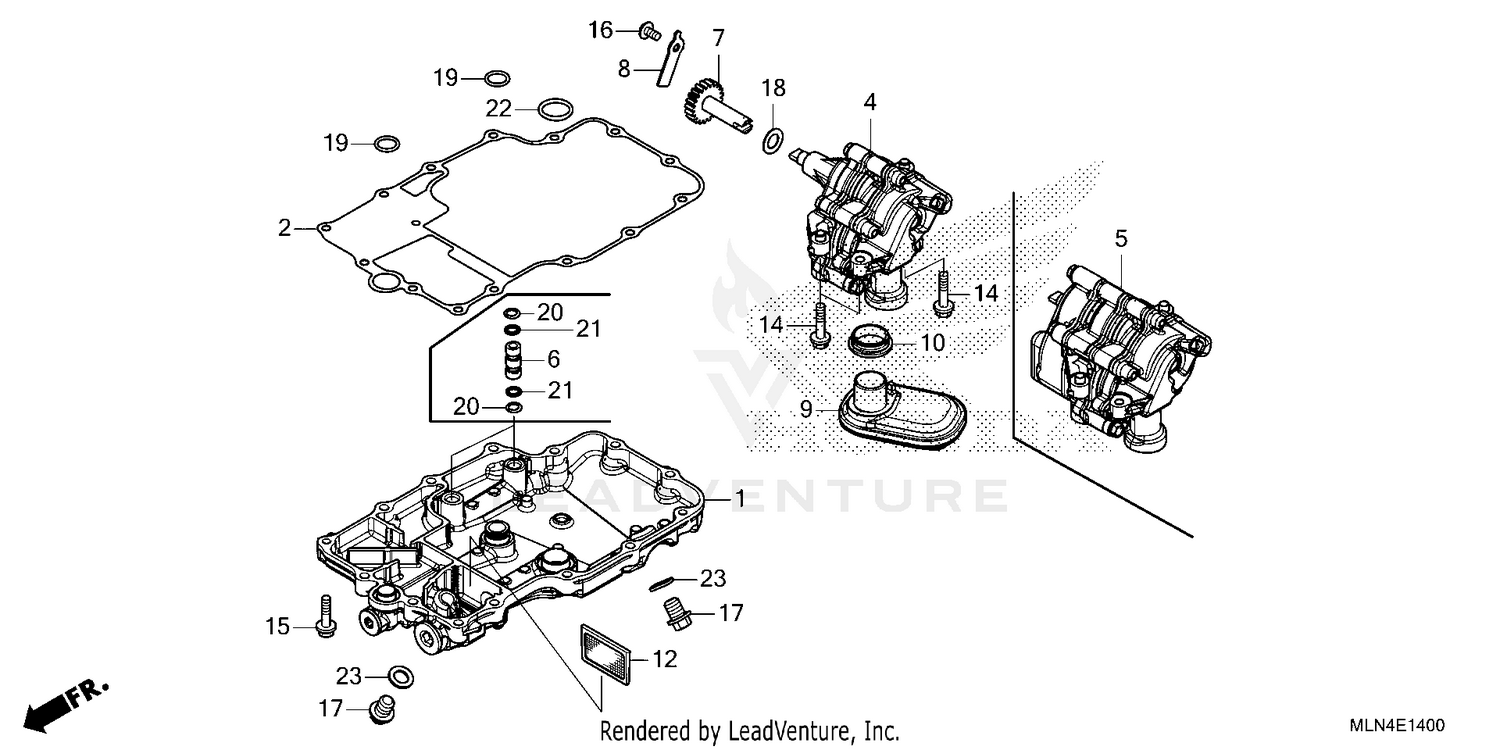

| Ref | Part Number | Description |
|---|
| 1 |
11210-MLA-A00 |
PAN, OIL Price: $347.22 |
| 2 |
11395-MJP-G51 |
GASKET, OIL PAN Price: $55.42 |
| 4 |
15100-MJP-G51 |
PUMP ASSY., OIL Price: $264.27 |
| 7 |
15130-MKS-E00 |
GEAR, OIL PUMP DRIVEN (21T) Price: $91.35 |
| 8 |
15136-MJP-G50 |
PLATE, OIL PUMP DRIVEN GEAR SHAFT Price: $3.33 |
| 9 |
15150-MJP-G50 |
STRAINER, OIL Price: $42.93 |
| 10 |
15154-MAT-000 |
GASKET, OIL STRAINER Price: $7.73 |
| 12 |
15421-MJP-G50 |
SCREEN, OIL FILTER Price: $11.15 |
| 14 |
90022-MJP-G50 |
BOLT, SPECIAL (6X32) Price: $2.42 |
| 15 |
90026-GHB-690 |
BOLT, FLANGE (6X28) Price: $2.49 |
| 16 |
90103-MEN-710 |
BOLT, SPECIAL (6MM) Price: $2.16 |
| 17 |
90131-896-650 |
BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000. Price: $2.76 |
| 18 |
90401-MKE-A70 |
WASHER (12.1X25X1) Price: $2.65 |
| 19 |
91303-KF0-003 |
O-RING (14.8X2.4) (ARAI) Price: $2.02 |
| 22 |
91352-MGE-003 |
O-RING (21.5X2.9) Price: $2.22 |
