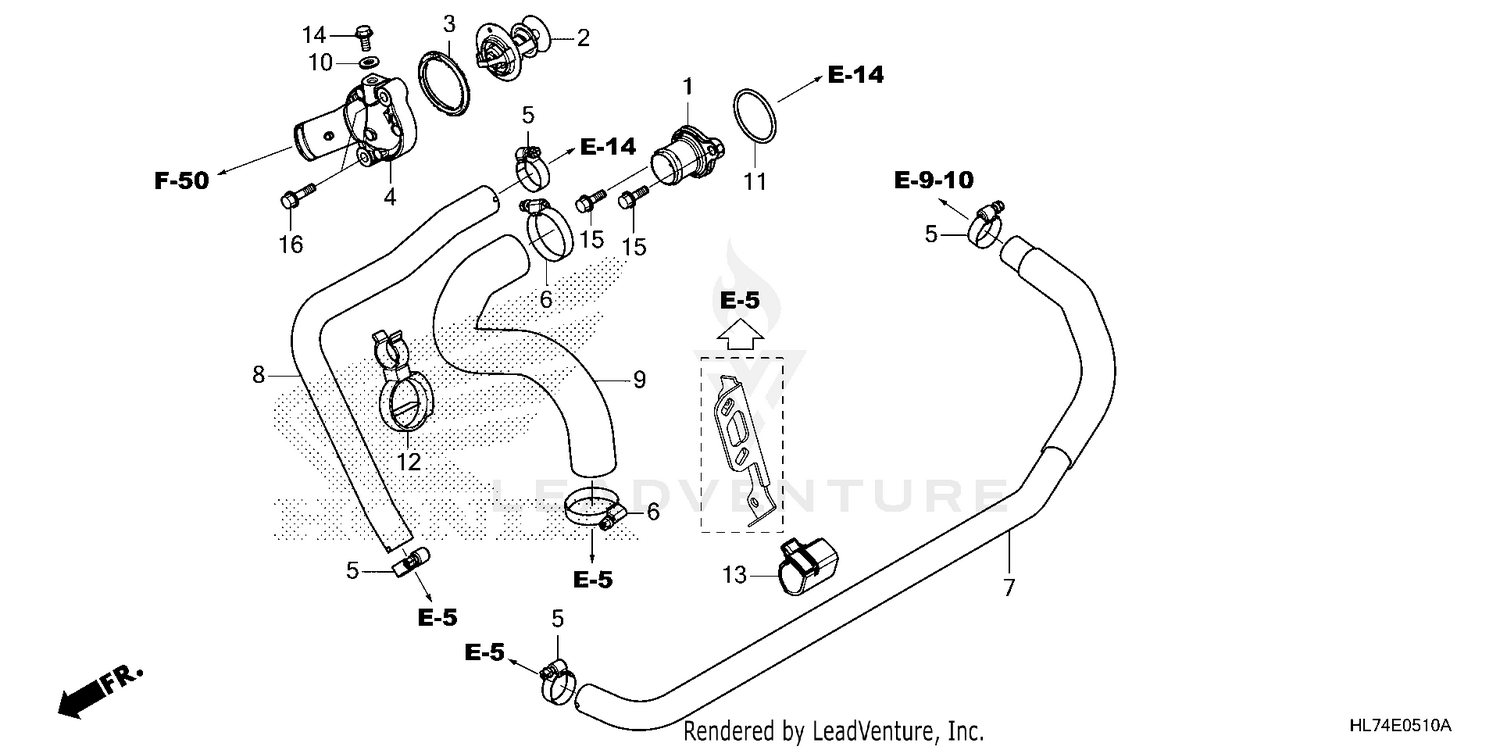

| Ref | Part Number | Description |
|---|
| 1 |
19060-HL4-000 |
JOINT, WATER Price: $23.64 |
| 2 |
19300-MCJ-003 |
THERMOSTAT ASSY. Price: $62.93 |
| 3 |
19305-KV3-010 |
RUBBER, THERMOSTAT Price: $7.62 |
| 4 |
19315-HL6-A00 |
COVER, THERMOSTAT Price: $35.55 |
| 5 |
19504-KY1-003 |
CLAMP, WATER HOSE (25MM) Price: $12.47 |
| 6 |
19516-GAG-003 |
CLAMP, HOSE (30-37MM) Price: $17.45 |
| 7 |
19522-HL4-000 |
HOSE, OIL COOLER OUTLET Price: $47.67 |
| 8 |
19523-HL4-000 |
HOSE, WATER BYPASS Price: $15.45 |
| 9 |
19524-HL4-000 |
HOSE, WATER Price: $20.42 |
| 10 |
90441-706-000 |
WASHER, SEALING (6MM) Price: $1.46 |
| 11 |
91356-425-005 |
O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003. Price: $3.51 |
| 12 |
91558-HL4-003 |
CLIP, WATER HOSE Price: $6.60 |
| 13 |
91558-TA0-003 |
CLIP, WIRE HARNESS (BLACK) Price: $1.08 |
| 14 |
95701-06012-08 |
BOLT, FLANGE (6X12) Price: $1.70 |
| 15 |
95701-06018-00 |
BOLT, FLANGE (6X18) BOLT, HEX. (6X18) Price: $1.70 |
