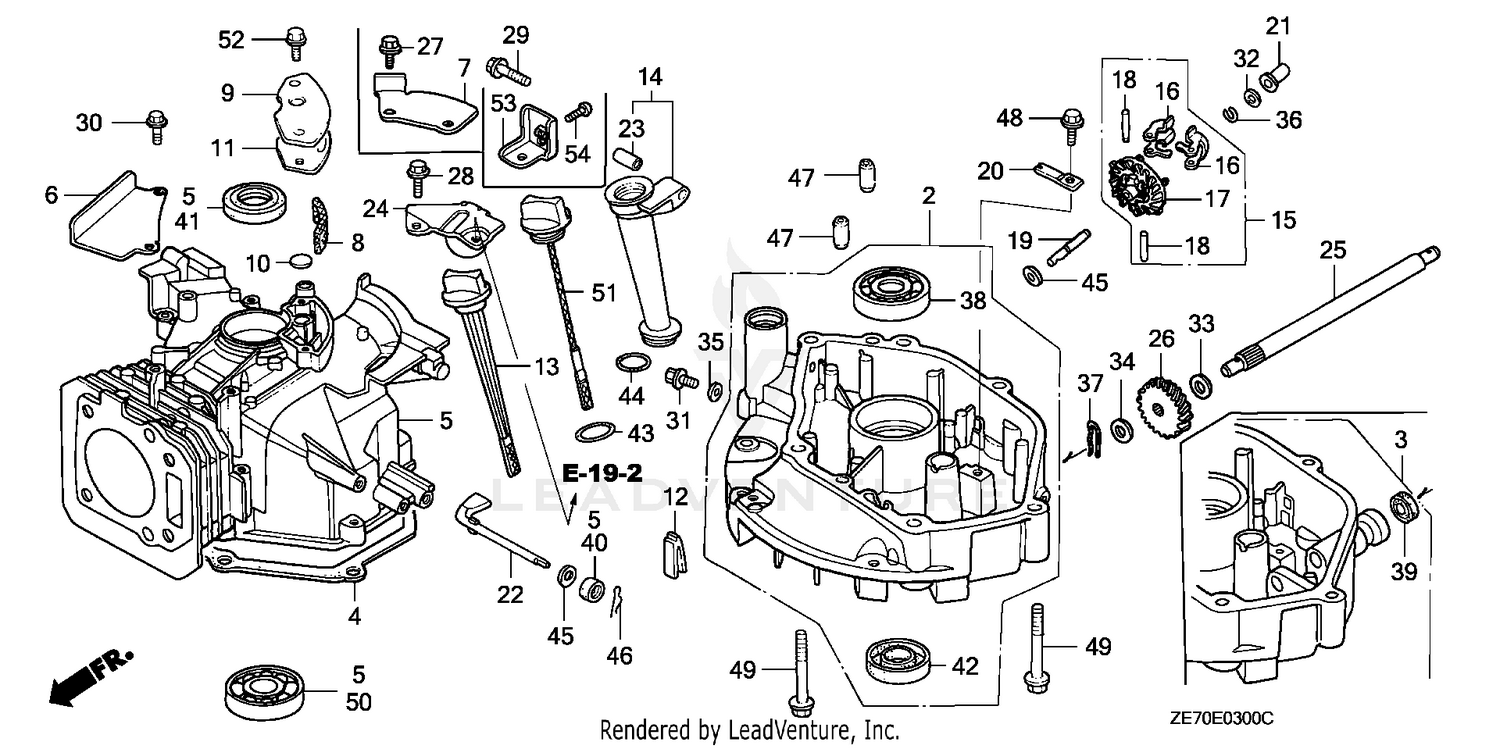

| Ref | Part Number | Description |
|---|
| 2 |
11300-ZE7-010 |
PAN ASSY., OIL Price: Call Us |
| 4 |
11381-ZE7-M10 |
SEE PART DETAILS - PRI; GASKET, OIL PAN Price: $15.50 |
| 5 |
120A0-ZE7-010 |
CYLINDER ASSY. Price: Call Us |
| 8 |
12367-883-003 |
SEE PART DETAILS - PRI; FILTER, BREATHER (Honda Code 1083484). Price: $3.50 |
| 9 |
12370-ZE7-000 |
COVER, BREATHER Price: $10.84 |
| 10 |
12372-ZE7-000 |
VALVE, BREATHER Price: $4.58 |
| 11 |
12373-ZE7-000 |
GASKET, BREATHER COVER Price: $3.34 |
| 12 |
15335-ZE7-000 |
RUBBER, OIL RETURN Price: $4.08 |
| 13 |
15620-ZE6-810 |
SEE PART DETAILS - PRI; GAUGE, OIL LEVEL Use up to Engine SN 1257294. Price: $12.40 |
| 14 |
15630-ZE6-810 |
EXTENSION, OIL FILLER (106MM) (Honda Code 3337870). Price: $51.92 |
| 15 |
16510-ZE6-000 |
GOVERNOR ASSY. (Honda Code 3337904). Price: $24.66 |
| 16 |
16511-ZE1-000 |
WEIGHT, GOVERNOR (Honda Code 1427228). Price: $3.94 |
| 17 |
16512-ZE6-000 |
HOLDER, GOVERNOR WEIGHT (Honda Code 1452846). Price: $15.20 |
| 18 |
16513-ZE1-000 |
PIN, GOVERNOR WEIGHT (Honda Code 1427244). Price: $2.22 |
| 19 |
16515-ZE6-010 |
SEE PART DETAILS - PRI; SHAFT, GOVERNOR HOLDER This part replaces 16515-ZE6-000. Price: $7.16 |
| 20 |
16525-ZE6-010 |
SEE PART DETAILS - PRI; PLATE, GOVERNOR SHAFT HOLDER (Honda Code 3337912). Price: $6.90 |
| 21 |
16531-ZE1-000 |
SEE PART DETAILS - PRI; SLIDER, GOVERNOR Price: $3.54 |
| 22 |
16541-ZE7-000 |
SHAFT, GOVERNOR ARM (Honda Code 2289643). Price: $15.20 |
| 23 |
17240-ZE6-000 |
COLLAR, EXTENSION Use up to Engine SN 1257294. Price: $4.58 |
| 24 |
17517-ZE7-000 |
STAY, TANK Price: $12.12 |
| 28 |
90014-952-000 |
BOLT, FLANGE (6X14) (Honda Code 0803619). Price: $2.94 |
| 29 |
90017-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076). Price: $3.36 |
| 31 |
90131-ZE1-000 |
SEE PART DETAILS - PRI; BOLT, DRAIN PLUG Price: $3.04 |
| 32 |
90451-ZE1-000 |
SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862). Price: $1.98 |
| 35 |
90601-ZE1-000 |
WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583). Price: $0.68 |
| 36 |
90602-ZE1-000 |
SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697). Price: $1.74 |
| 38 |
91001-894-004 |
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (Honda Code 0821124). Price: $23.06 |
| 40 |
91231-891-003 |
OIL SEAL (6X11X4) (Honda Code 0801043). Price: $2.92 |
| 41 |
91201-ZG9-U71 |
SEE PART DETAILS - PRI; OIL SEAL (25X38X7) (Honda Code 5230073). Price: $4.72 |
| 42 |
91252-894-004 |
SEE PART DETAILS - PRI; OIL SEAL (25.4X40X7) (Honda Code 0821140). Price: $13.58 |
| 43 |
91301-ZE9-003 |
SEE PART DETAILS - PRI; O-RING (22.5X2.2) Use from Engine SN 1257295. Price: $2.32 |
| 44 |
91301-805-000 |
SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185). Price: $5.00 |
| 45 |
94101-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900). Price: $0.82 |
| 46 |
94251-08000 |
SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527). Price: $1.54 |
| 47 |
94301-08140 |
SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310). Price: $2.82 |
| 48 |
95701-06012-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984. Price: $2.04 |
| 49 |
95701-08050-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X50) (Honda Code 2935740). Price: $3.08 |
| 50 |
96100-62050-00 |
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977). Price: $24.84 |
| 52 |
90014-952-000 |
BOLT, FLANGE (6X14) (Honda Code 0803619). Price: $2.94 |
| 53 |
43143-ZE7-000 |
BASE, HOLDER Price: $9.92 |
