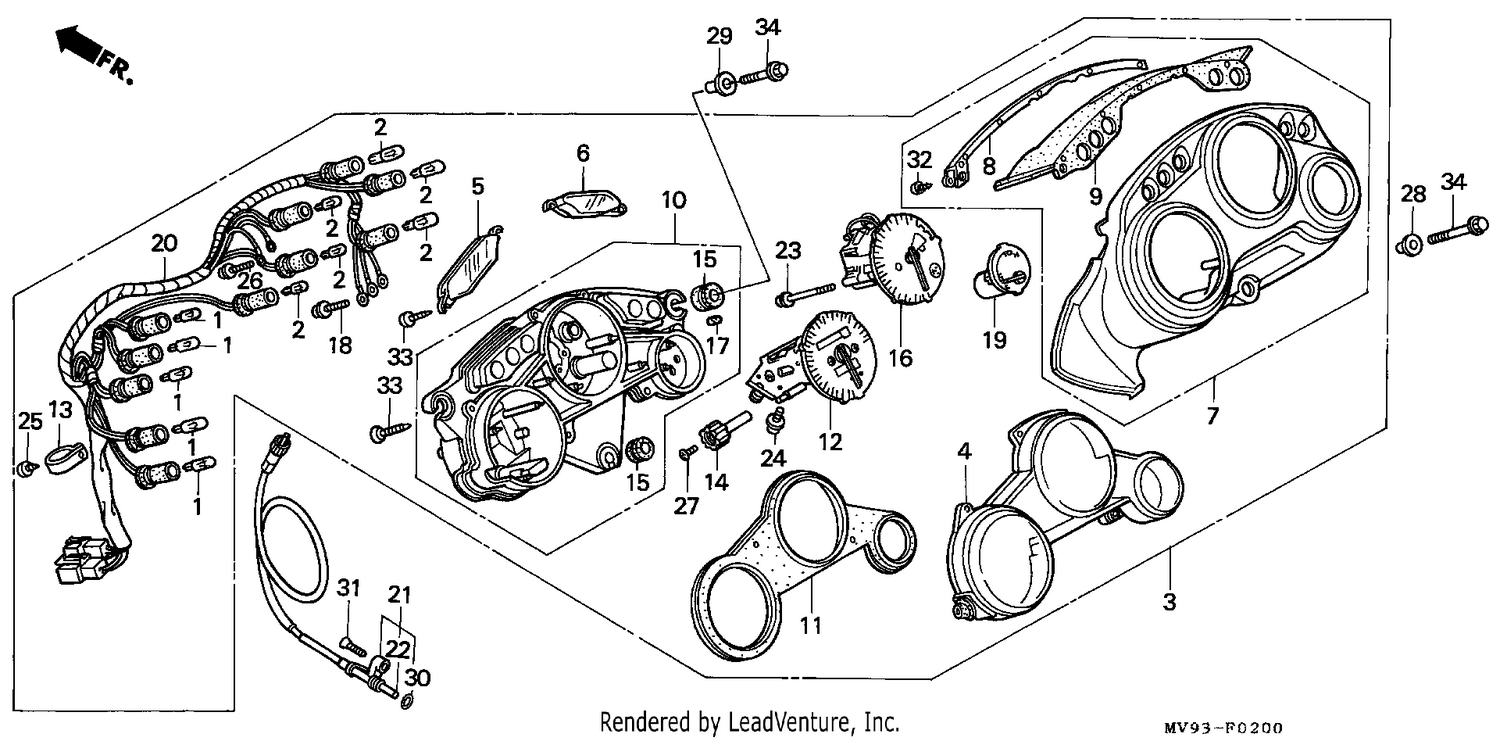

METER (1)

METER (1)

Parts (33)

RefPart NumberDescription
1 34908GA7701 BULB, WEDGE BASE (T10) (12V 3.4W) (NIPPON SEIKI) Price: Call Us
2 34908MB9871 BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY) Price: Call Us
3 37100MV9611 METER ASSY., COMBINATION (KPH) Price: Call Us
4 37102MV9601 LENS ASSY., METER Price: Call Us
5 37103MV9601 LENS, L. SMOKE Price: Call Us
6 37104MV9601 LENS, R. SMOKE Price: Call Us
7 37110MV9601 VISOR ASSY. Price: Call Us
8 37112MV9601 BRACKET Price: Call Us
9 37113MV9601 COVER, UPPER Price: Call Us
10 37120MV9601 CASE ASSY. Price: Call Us
11 37130MV9601 PLATE ASSY., REFLECTING Price: Call Us
12 37200MV9611 SPEEDOMETER COMP. Price: Call Us
13 37215KR1760 CLAMP Price: Call Us
14 37220445008 KNOB, TRIP METER Price: Call Us
15 37244MV9601 RUBBER, METER MOUNTING Price: Call Us
16 37250MV9601 TACHOMETER COMP. Price: Call Us
17 37304198901 RUBBER, CUSHION Price: Call Us
18 37305KE5008 SCREW-WASHER, 3X22 Price: Call Us
19 37400MV9601 METER COMP., TEMPERATURE Price: Call Us
20 37612MV9601 SOCKET COMP. Price: Call Us
21 44830MN4000 CABLE ASSY., SPEEDOMETER Price: Call Us
22 44831MN4000 CABLE, INNER Price: Call Us
23 90032ML7671 SCREW, TAPPING, 4X36 Price: Call Us
24 90035166008 SCREW-WASHER, SPECIAL, 4X10 Price: Call Us
25 90102SB2003 SCREW, TAPPING, 4X14 Price: Call Us
26 90108GN2008 SCREW-WASHER, 3X10 Price: Call Us
27 90158KM7911 SCREW, PAN, 2X6 Price: Call Us
28 90501MN4000 COLLAR, 19X6.2X18 Price: Call Us
29 90502MN4000 COLLAR, 19X6.2X14.5 Price: Call Us
30 91301027000 O-RING, 6.8X1.9 Price: Call Us
31 93700050200G SCREW, OVAL, 5X20 Price: Call Us
32 9390122220 SCREW, TAPPING, 3X10 Price: Call Us
33 9390324520 SCREW, TAPPING, 4X20 Price: Call Us
