Parts Catalog

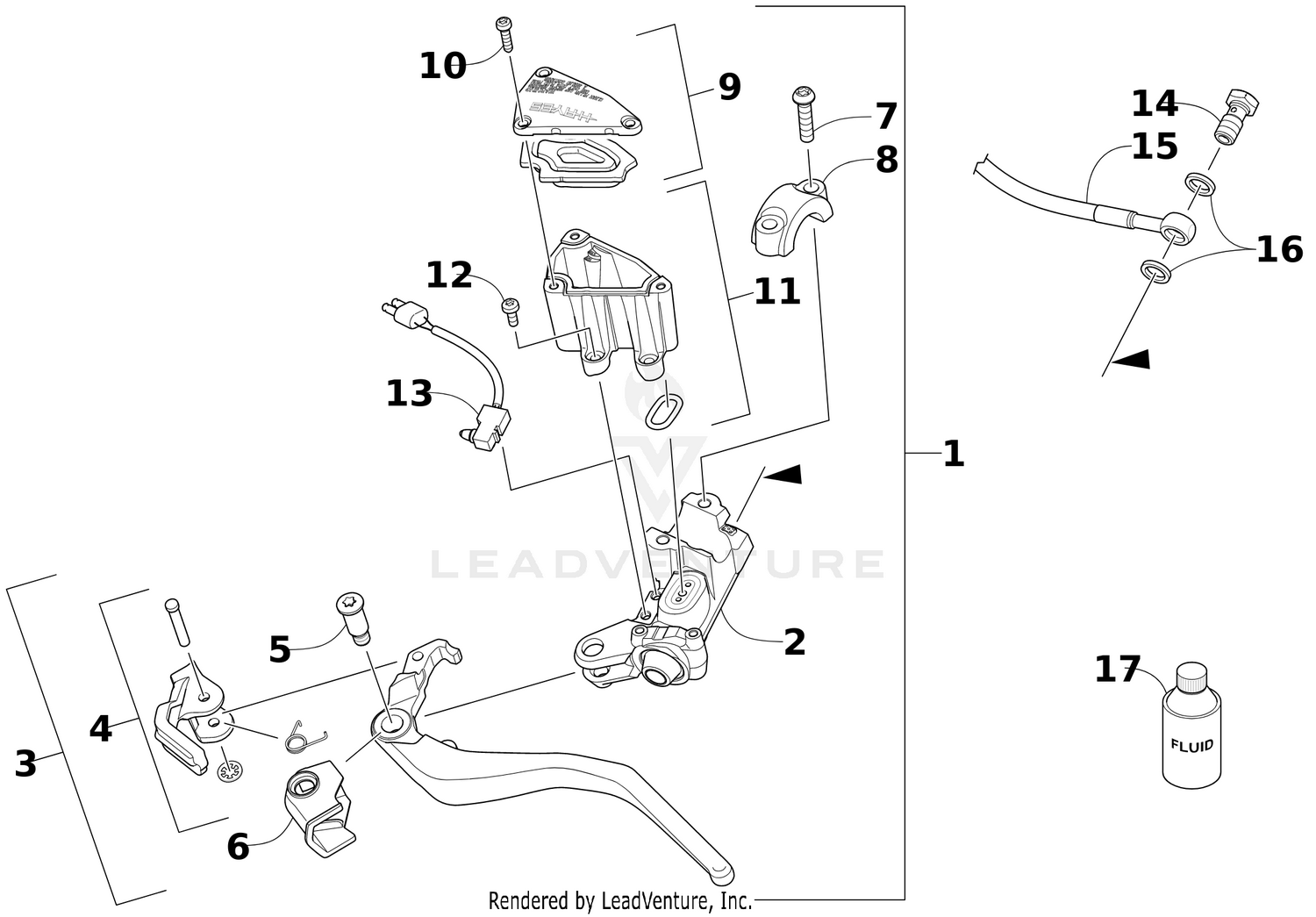

HYDRAULIC BRAKE CONTROL ASSEMBLY [106148]

Parts (13)

Ref	Part Number	Description
2	2602-426	Piston Assembly Price: $368.95
4	2602-428	Lock, Brake Lever - Kit Price: $47.95
5	2602-624	Screw, Shoulder Price: $11.95
6	2602-625	Boot Price: $36.95
7	1602-936	Screw, Machine Price: $20.56
8	0502-869	CLAMP(BLACK) Price: $58.95
9	2602-429	Cover, Reservoir Price: $35.95
10	2602-430	Screw, Self-Tapping Price: $5.81
12	2602-519	Screw, Self-Tapping Price: $1.92
13	2602-432	Switch, Brake Price: $93.95
14	0423-413	Bolt, Banjo Fitting Price: $4.48
15	3602-100	Brakeline, Hydraulic Price: $97.95
16	0423-178	Washer, Crush Price: $1.92
