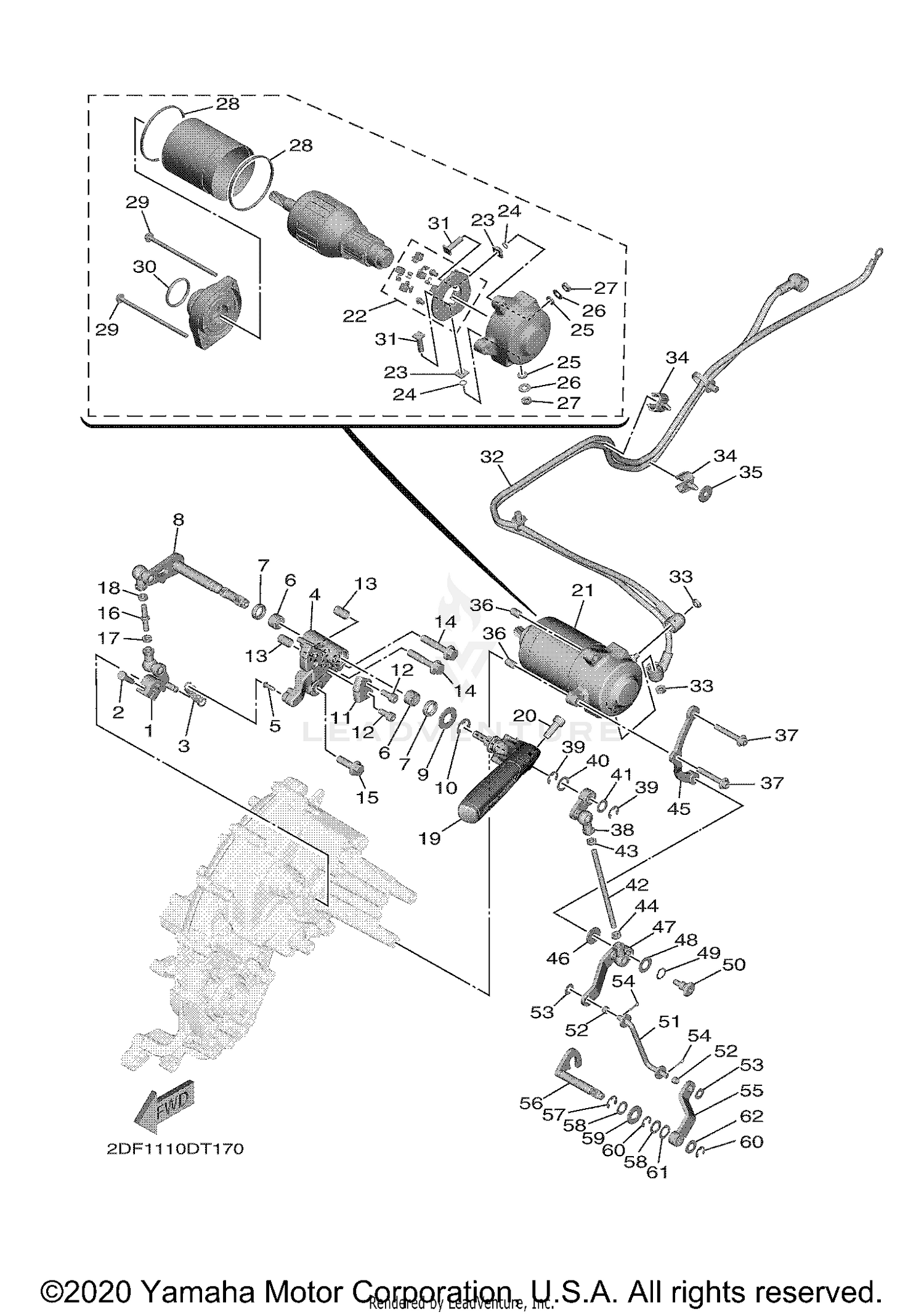

| Ref | Part Number | Description |
|---|
| 1 |
2DF-18169-00-00 |
ARM, SHIFT 2 Price: $46.99 |
| 2 |
91317-06020-00 |
BOLT, HEX. SOCKET HEAD Price: $2.75 |
| 3 |
90506-18026-00 |
SPRING, TENSION Price: $4.25 |
| 4 |
2DF-18381-00-00 |
BRACKET, SHIFTE Price: $44.99 |
| 5 |
2DF-16346-00-00 |
HOOK, SPRING Price: $0.95 |
| 6 |
93317-11295-00 |
BEARING Price: $50.99 |
| 7 |
93102-12224-00 |
OIL SEAL Price: $11.49 |
| 8 |
2DF-18341-00-00 |
SHAFT, RINK Price: $47.99 |
| 9 |
90201-12575-00 |
WASHER, PLATE Price: $9.49 |
| 10 |
99002-10600-00 |
CIRCLIP Price: $9.49 |
| 11 |
2DF-17665-00-00 |
PLATE 1 Price: $15.99 |
| 12 |
91317-06014-00 |
BOLT This part replaces 90110-06004-00. Price: $10.49 |
| 13 |
99530-10116-00 |
PIN, DOWEL Price: $4.40 |
| 14 |
95817-08040-00 |
BOLT, FLANGE Price: $7.49 |
| 15 |
95817-08025-00 |
BOLT, FLANGE Price: $9.49 |
| 16 |
5XT-18115-10-00 |
ROD, SHIFT Price: $44.99 |
| 17 |
90170-06022-00 |
NUT Price: $3.70 |
| 18 |
95317-06700-00 |
NUT, HEX Price: $9.49 |
| 19 |
2DF-18190-00-00 |
LEVER COMP. 1 Price: $307.99 |
| 20 |
91317-08020-00 |
BOLT, HEX. SOCKET HEAD Price: $3.05 |
| 21 |
2DF-81101-00-00 |
MOTOR ASSY Price: $1,021.99 |
| 22 |
2DF-81801-00-00 |
BRUSH SET Price: $78.99 |
| 23 |
2S3-8182G-00-00 |
BUSH, TERMINAL Price: $5.99 |
| 24 |
93210-06632-00 |
O-RING This part replaces 93210-06422-00. Price: $9.49 |
| 25 |
8FA-8181L-00-00 |
WASHER, PLAIN Price: $4.85 |
| 26 |
1D7-81835-00-00 |
WASHER Price: $2.90 |
| 27 |
95380-06700-00 |
NUT This part replaces 95302-06700-00. Price: $9.49 |
| 28 |
1D7-81861-00-00 |
GASKET Price: $15.49 |
| 29 |
8FA-81846-01-00 |
SCREW Price: $8.49 |
| 30 |
93210-25711-00 |
O-RING Price: $8.49 |
| 31 |
2S3-81828-00-00 |
SCREW 2 Price: $4.65 |
| 32 |
2DF-8183G-11-00 |
CORD COMP. Price: $86.99 |
| 33 |
95380-06700-00 |
NUT This part replaces 95302-06700-00. Price: $9.49 |
| 34 |
90464-09130-00 |
CLAMP Price: $1.54 |
| 35 |
90201-06021-00 |
WASHER, PLATE Price: $1.30 |
| 36 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 37 |
90110-06406-00 |
BOLT, HEXAGON SOCKET HEAD Price: $1.75 |
| 38 |
2DF-18691-00-00 |
PLATE, 1 Price: $37.99 |
| 39 |
99001-08600-00 |
CIRCLIP This part replaces 99002-08600-00. Price: $9.49 |
| 40 |
90201-12M34-00 |
WASHER, PLATE This part replaces 90201-12163-00. Price: $3.80 |
| 41 |
90201-10029-00 |
WASHER, PLATE Price: $8.49 |
| 42 |
2DF-18318-00-00 |
SHAFT, SHIFTER Price: $17.49 |
| 43 |
95317-06700-00 |
NUT, HEX Price: $9.49 |
| 44 |
90170-06022-00 |
NUT Price: $3.70 |
| 45 |
2DF-18128-00-00 |
BRACKET Price: $30.99 |
| 46 |
90201-06M94-00 |
WASHER, PLATE Price: $5.35 |
| 47 |
2DF-18692-00-00 |
PLATE, 2 Price: $52.99 |
| 48 |
90201-10079-00 |
WASHER, PLATE Price: $4.60 |
| 49 |
90206-10001-00 |
WASHER, WAVE Price: $0.60 |
| 50 |
2DF-27434-00-00 |
BOLT Price: Call Us |
| 51 |
2DF-18319-00-00 |
SHAFT 2 Price: $33.99 |
| 52 |
90380-06002-00 |
BUSH, SOLID Price: $1.40 |
| 53 |
92907-06200-00 |
WASHER Price: $9.49 |
| 54 |
91490-20015-00 |
PIN. COTTER This part replaces 91402-20012-00. Price: $2.20 |
| 55 |
2DF-18693-00-00 |
PLATE, 3 Price: $31.99 |
| 56 |
2DF-1812E-00-00 |
SHAFT, STOPPER Price: $45.99 |
| 57 |
99001-08600-00 |
CIRCLIP This part replaces 99002-08600-00. Price: $9.49 |
| 58 |
90201-10029-00 |
WASHER, PLATE Price: $8.49 |
| 59 |
92907-10200-00 |
WASHER, PLAIN Price: $5.49 |
| 60 |
99080-07600-00 |
CIRCLIP This part replaces 99002-07600-00. Price: $3.55 |
| 61 |
90206-10M24-00 |
WASHER, WAVE Price: $5.55 |
