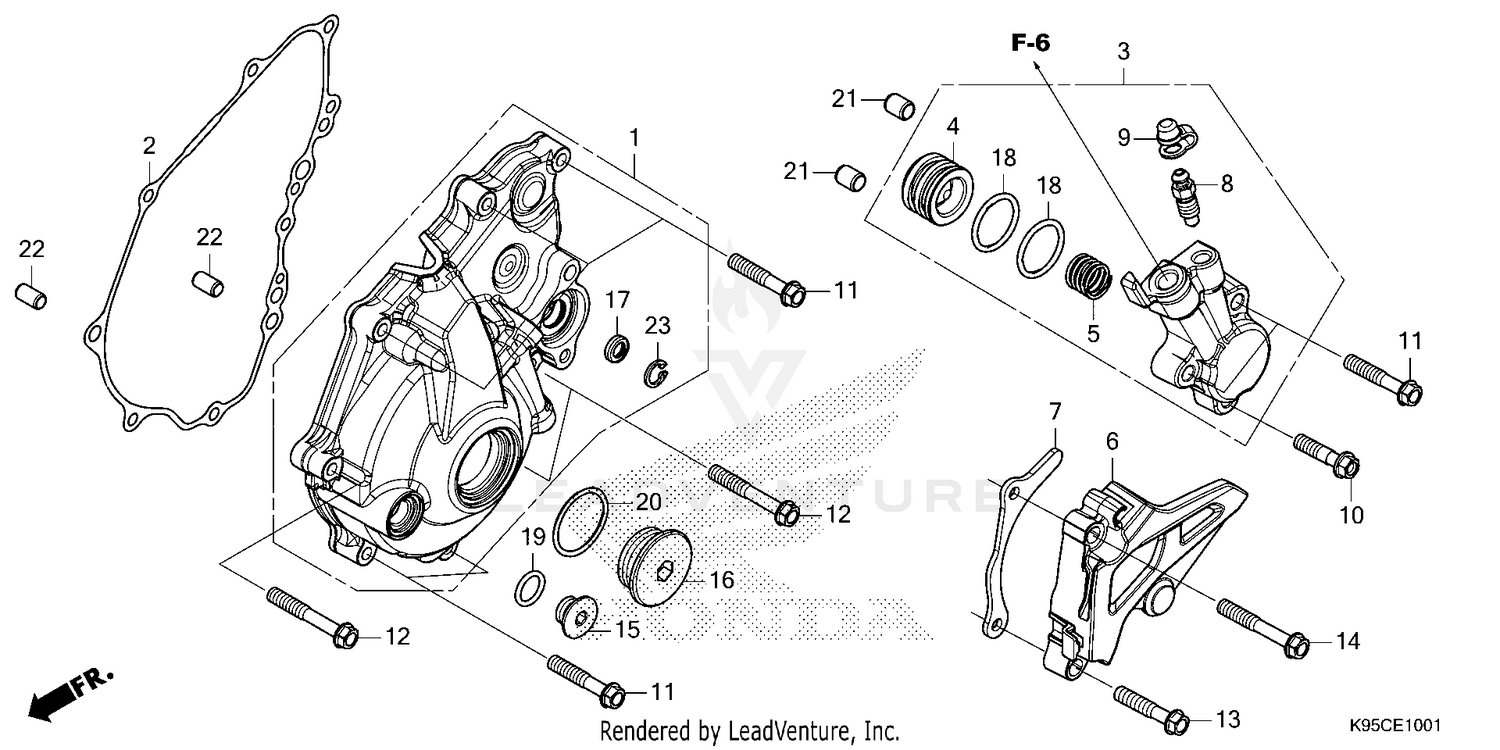

| Ref | Part Number | Description |
|---|
| 1 |
11340-K95-AJ0 |
COVER, L. CRANKCASE Price: $192.27 |
| 2 |
11395-K95-A21 |
GASKET, L. COVER Price: $20.44 |
| 3 |
22860-K95-AJ1 |
CYLINDER ASSY., SLAVE Price: $236.22 |
| 4 |
22862-MKE-AF1 |
PISTON, SLAVE CYLINDER Price: $59.56 |
| 5 |
22863-MKE-AF1 |
SPRING, SLAVE CYLINDER Price: $5.00 |
| 6 |
23810-K95-AJ0 |
COVER, DRIVE SPROCKET Price: $21.76 |
| 7 |
23812-K95-A20 |
GUIDE, DRIVE CHAIN Price: $12.89 |
| 8 |
43352-568-003 |
SCREW, BLEEDER (NISSIN) Price: $9.98 |
| 9 |
43353-461-771 |
CAP, BLEEDER Price: $6.35 |
| 10 |
90020-GHB-680 |
BOLT, FLANGE (6X25) Price: $2.58 |
| 11 |
90020-GHB-710 |
BOLT, FLANGE (6X32) Price: $3.04 |
| 12 |
90020-GHB-740 |
BOLT, FLANGE (6X40) Price: $3.04 |
| 13 |
90021-GHB-700 |
BOLT, FLANGE (6X30) Price: $2.65 |
| 14 |
90021-GHB-740 |
BOLT, FLANGE (6X40) Price: $3.09 |
| 15 |
90085-K95-AA0 |
CAP (14MM) Price: $11.58 |
| 16 |
90087-K95-AA0 |
CAP (32MM) Price: $20.04 |
| 17 |
91202-MKE-AF1 |
OIL SEAL (7X14.5X5) Price: $4.07 |
| 18 |
91301-MKE-AF1 |
O-RING (21.1X2.45) Price: $2.44 |
| 19 |
91303-377-000 |
O-RING (13.8X2.5) Price: $4.29 |
| 20 |
91305-KRM-840 |
O-RING (31.7X2.4) Price: $1.58 |
| 21 |
94301-08100 |
PIN A, DOWEL (8X10) Price: $2.35 |
| 22 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
