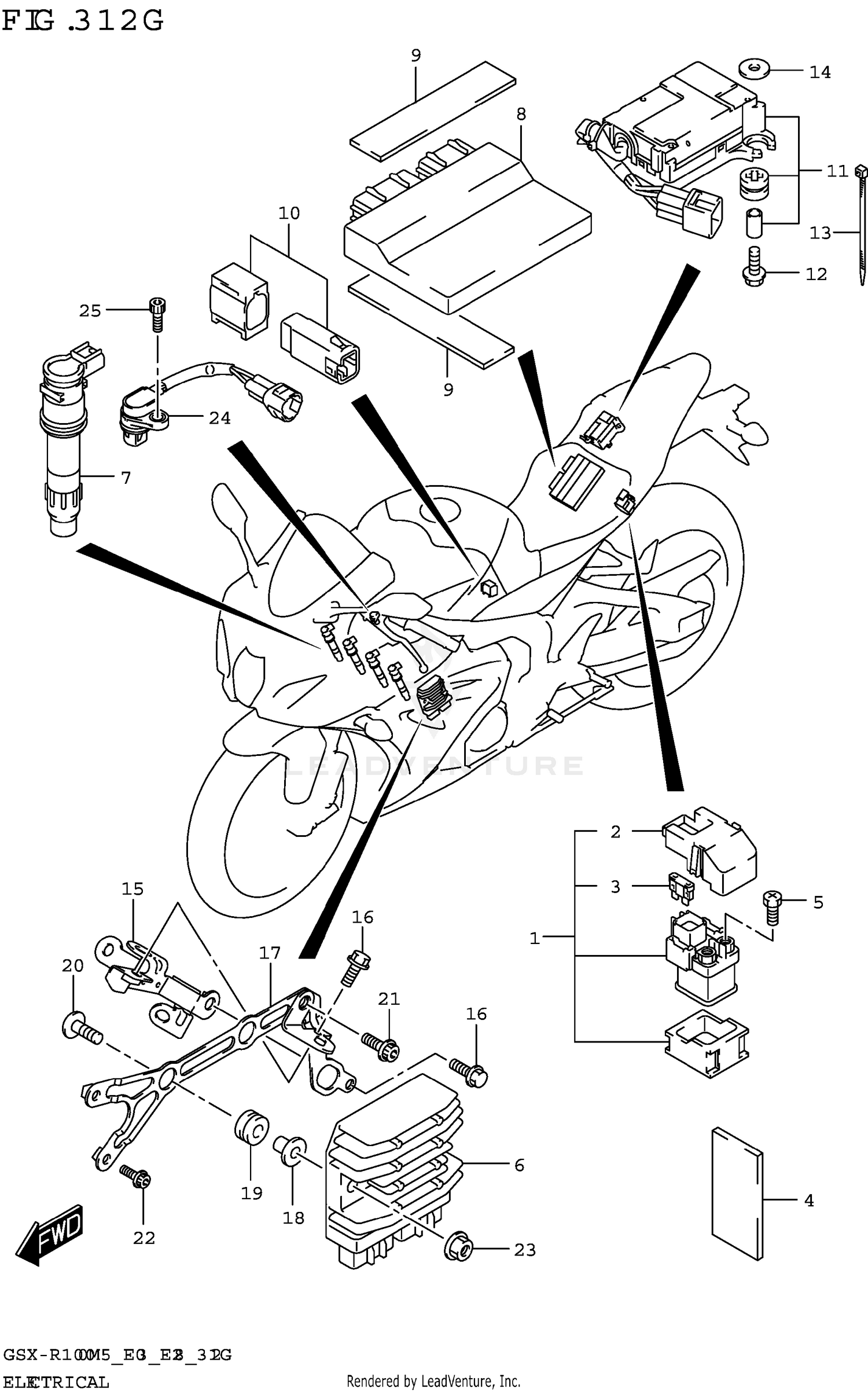

ELECTRICAL (GSX-R1000A:(E03,E28))
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31800-21E30 | RELAY ASSY,STARTING MOTOR Price: $83.16 |
| 4 | 36920-08D00 | PROTECTOR (30X60X3) Price: $2.03 |
| 5 | 09128-06013 | SCREW (6X8) Price: $1.50 |
| 6 | 32800-26J02 | RECTIFIER ASSY Price: $271.46 |
| 7 | 33410-17K01 | COIL ASSY,IGNITION Price: $196.01 |
| 11 | 33970-47H03 | ACTUATOR ASSY Price: $452.23 |
| 12 | 09103-06066 | BOLT (6X23) Price: $1.54 |
| 13 | 09407-10404 | CLAMP (L:100) Price: $3.06 |
| 14 | 08322-0106A | WASHER Price: $2.22 |
| 15 | 36670-17K00 | BRACKET,HARNESS Price: $34.37 |
| 16 | 01547-0612A | BOLT Price: $2.45 |
| 17 | 32830-17K00 | BRACKET,RECT FTG Price: $60.51 |
| 18 | 09180-06331 | SPACER (6.2X8.4X10.9) Price: $5.01 |
| 19 | 09320-08501 | CUSHION (8X18X10) Price: $3.99 |
| 20 | 02142-0635A | SCREW Price: $2.87 |
| 21 | 07120-0620A | BOLT Price: $3.20 |
| 22 | 07120-0630B | BOLT Price: $4.31 |
| 23 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 24 | 33220-01H01 | SENSOR ASSY,CAM POSITION Price: $133.41 |
