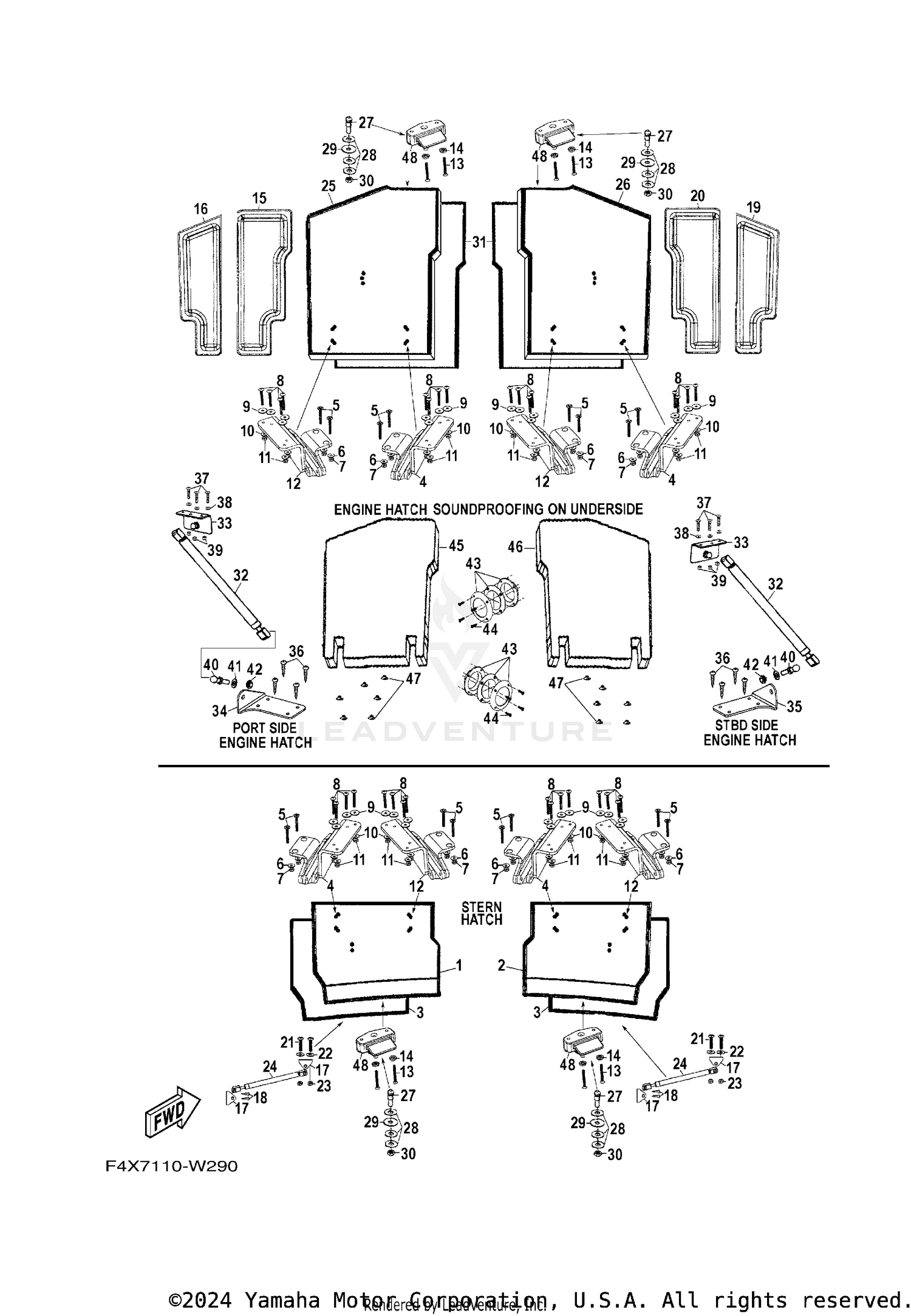

| Ref | Part Number | Description |
|---|
| 1 |
F4X-U518A-00-00 |
STERN HATCH ASSY Price: $746.99 |
| 2 |
F4X-U518A-10-00 |
STERN HATCH ASSY Price: $696.99 |
| 3 |
F4X-U3262-30-00 |
SEAL Price: $46.99 |
| 4 |
F4X-U3714-00-00 |
BRACKET,SEAT Price: $209.99 |
| 5 |
90151-14S24-00 |
SCREW, COUNTERSUNK Price: $0.45 |
| 6 |
90201-14S00-00 |
WASHER, PLATE Price: $6.99 |
| 7 |
90185-14S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 8 |
90149-10SD6-00 |
SCREW Price: $6.99 |
| 9 |
90209-10SB1-00 |
WASHER Price: $5.99 |
| 10 |
90201-10S00-00 |
WASHER, PLATE Price: $4.99 |
| 11 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 12 |
F4X-U3714-10-00 |
BRACKET,SEAT Price: $177.99 |
| 13 |
90149-12SD1-00 |
SCREW Price: $0.70 |
| 14 |
90209-12SB6-00 |
WASHER Price: $5.99 |
| 15 |
F4X-U89A1-21-00 |
STORAGE, STERN Price: $272.99 |
| 16 |
F4X-U89A1-30-00 |
STORAGE, STERN Price: $300.99 |
| 17 |
F3F-U2899-00-00 |
BRACKET, HATCH SUPPORT 2 Price: $11.99 |
| 18 |
90169-10SA1-00 |
TAPPING SCREW Price: $5.99 |
| 19 |
F4X-U89A1-40-00 |
STORAGE, STERN Price: $300.99 |
| 20 |
F4X-U89A1-51-00 |
STORAGE, STERN Price: $207.99 |
| 21 |
90149-10S20-00 |
SCREW Price: $7.99 |
| 22 |
90209-10SB1-00 |
WASHER Price: $5.99 |
| 23 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 24 |
F4X-U2896-00-00 |
SUPPORT, HATCH 2 Price: $62.99 |
| 25 |
F4X-U516A-00-00 |
ENGINE HATCH COMP. Price: $1,883.99 |
| 26 |
F4X-U516A-10-00 |
ENGINE HATCH COMP. Price: $1,884.99 |
| 27 |
GP1-U3774-01-00 |
PIN Price: $29.99 |
| 28 |
90209-17SA5-00 |
WASHER Price: $5.99 |
| 29 |
GP1-U5194-01-00 |
WASHER, SPECIAL Price: $17.99 |
| 30 |
95680-10100-00 |
NUT, U Price: $6.99 |
| 31 |
F4X-U266C-00-00 |
SEAL Price: $71.99 |
| 32 |
F4A-U2896-00-00 |
SUPPORT, HATCH 2 Price: $182.99 |
| 33 |
F3M-U288B-10-00 |
BASE, HATCH SUPPORT Price: $34.99 |
| 34 |
F4X-U288B-00-00 |
BASE, HATCH SUPPORT Price: $87.99 |
| 35 |
F4X-U288B-10-00 |
BASE, HATCH SUPPORT Price: $87.99 |
| 36 |
90169-12S24-00 |
TAPPING SCREW Price: $0.50 |
| 37 |
90149-10SD6-00 |
SCREW Price: $6.99 |
| 38 |
90209-10SB1-00 |
WASHER Price: $5.99 |
| 39 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 40 |
F3M-U146E-00-00 |
STUD, JOINT BALL Price: $17.99 |
| 41 |
90201-15S00-00 |
WASHER, 5/16" FLAT Price: $0.15 |
| 42 |
90185-15S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 43 |
F2D-U273A-00-00 |
PLATE 2 ASSY Price: $32.99 |
| 44 |
90161-08SA4-00 |
SCREW, TAPPING Price: $4.99 |
| 45 |
F4X-U5164-00-00 |
SOUND-PROOF 1 Price: $75.99 |
| 46 |
F4X-U5165-00-00 |
SOUND-PROOF 2 Price: $27.99 |
| 47 |
F3F-U4817-00-00 |
NUT, SPECIAL Price: $6.99 |
