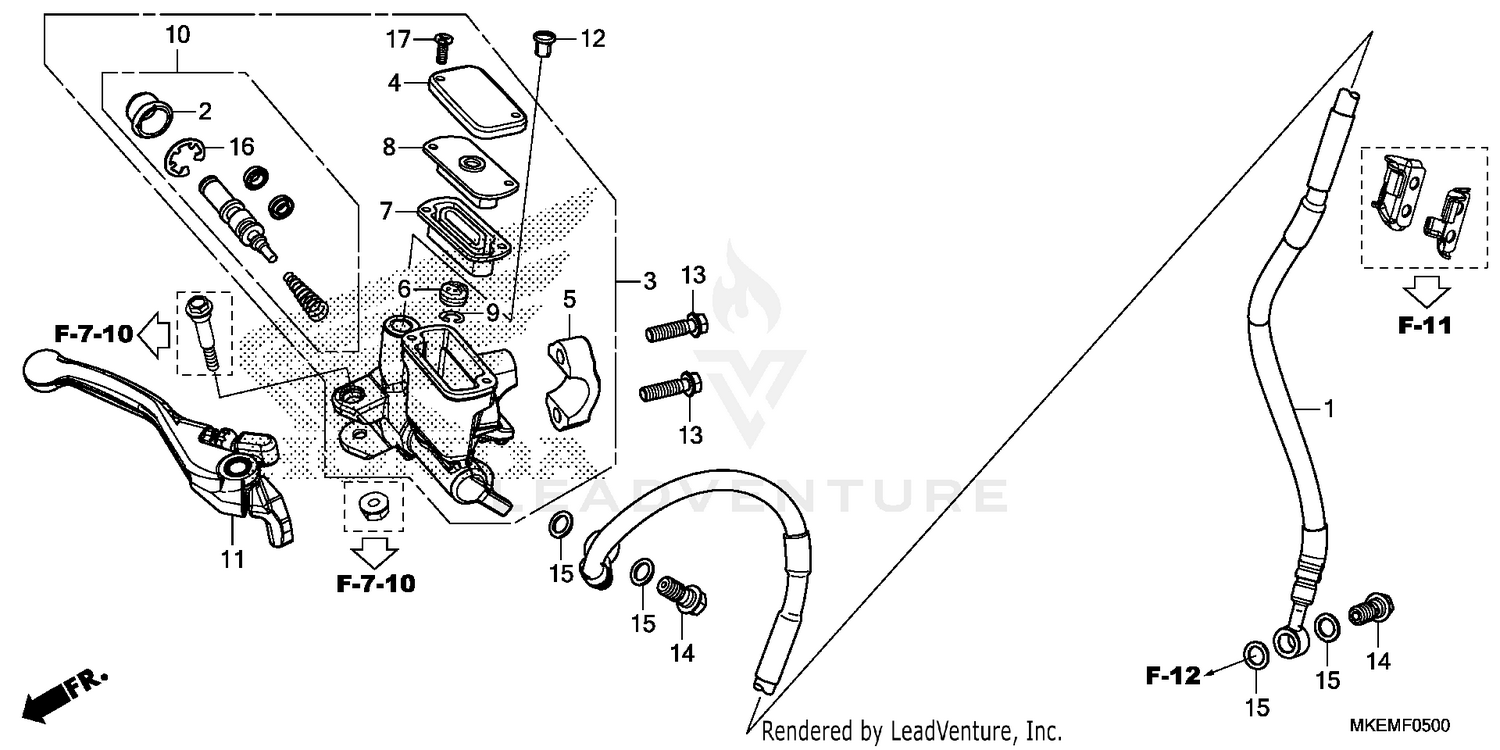

| Ref | Part Number | Description |
|---|
| 1 |
45125-MKE-A51 |
HOSE, FR. BRAKE Price: $160.78 |
| 2 |
45504-410-003 |
BOOT Price: $14.75 |
| 3 |
45510-MKE-A41 |
MASTER CYLINDER SUB-ASSY., FR. Price: $260.78 |
| 4 |
45513-MKE-A51 |
CAP, MASTER CYLINDER Price: $29.51 |
| 5 |
45517-GW0-751 |
HOLDER, MASTER CYLINDER Price: $15.04 |
| 6 |
45518-KA3-731 |
SEPARATOR Price: $14.76 |
| 7 |
45520-GW0-911 |
DIAPHRAGM Price: $9.15 |
| 8 |
45521-GW0-911 |
PLATE, DIAPHRAGM Price: $7.20 |
| 9 |
45523-KA3-731 |
RING Price: $3.35 |
| 10 |
45530-MKE-A51 |
MASTER CYLINDER SET Price: $51.96 |
| 11 |
53170-MKE-A51 |
LEVER ASSY., R. HANDLE Price: $53.95 |
| 12 |
53174-116-670 |
PLUG, HANDLE LEVER BRACKET Price: $2.84 |
| 13 |
90020-GHB-670 |
BOLT, FLANGE (6X22) Price: $2.65 |
| 14 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 15 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 16 |
90651-K03-M61 |
CIRCLIP (INNER) (18.8) Price: $0.78 |
| 17 |
93600-04012-0G |
SCREW, FLAT (4X12) Price: $0.95 |
