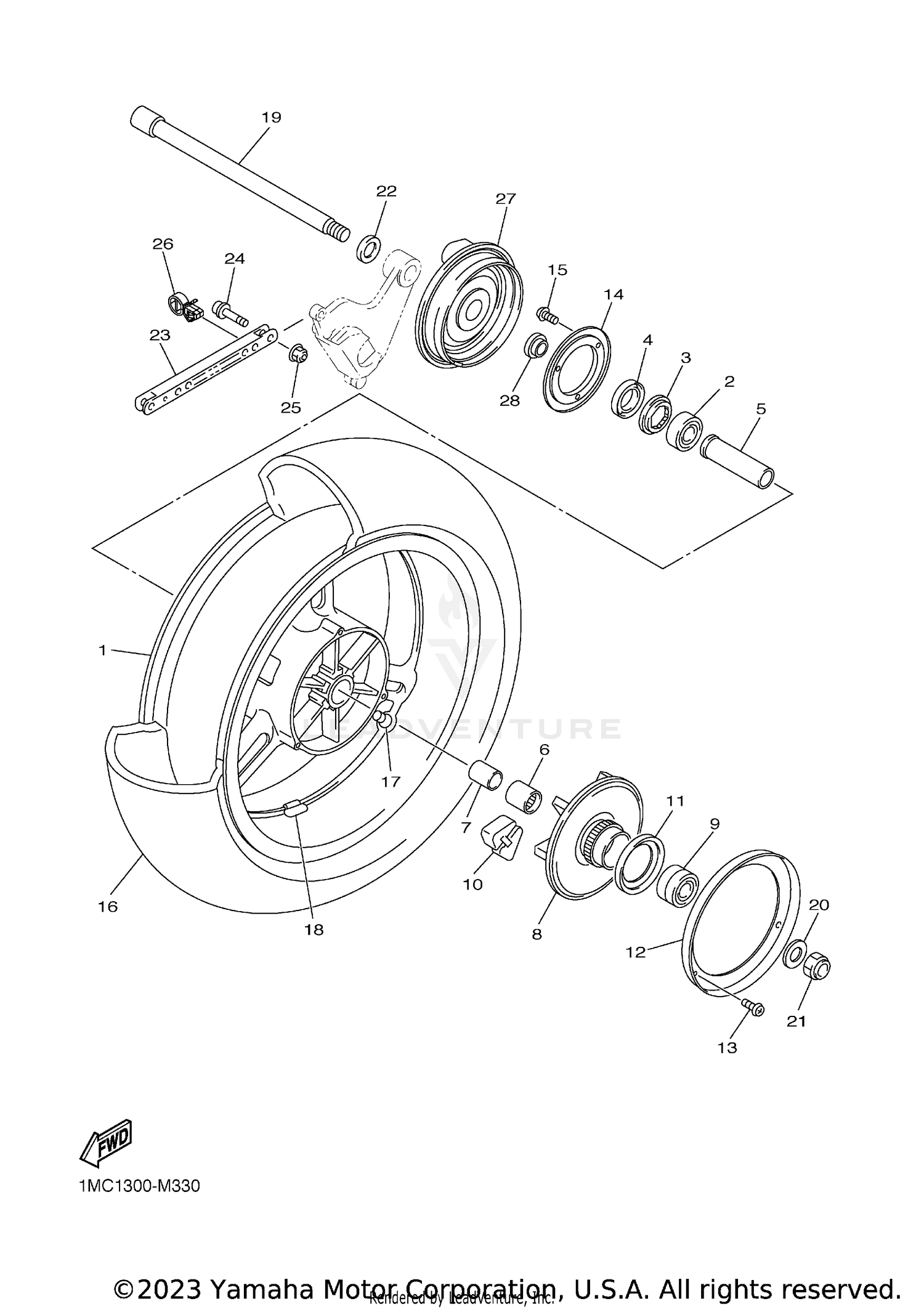

| Ref | Part Number | Description |
|---|
| 2 |
93306-30446-00 |
BEARING Price: $72.99 |
| 3 |
1MC-2538E-00-00 |
NUT, ADJUSTING Price: $44.99 |
| 4 |
93106-40013-00 |
OIL SEAL Price: $16.49 |
| 5 |
3P6-25317-00-00 |
SPACER, BEARING Price: $44.99 |
| 6 |
93317-42592-00 |
BEARING Price: $53.99 |
| 7 |
5JW-25383-00-00 |
COLLAR, WHEEL Price: $44.99 |
| 8 |
5JW-25366-00-00 |
CLUTCH, HUB Price: $200.99 |
| 9 |
93306-20480-00 |
BEARING Price: $48.99 |
| 10 |
5JW-25364-00-00 |
DAMPER Price: $31.99 |
| 11 |
5JW-25319-00-00 |
SEAL, HUB DUST Price: $41.99 |
| 12 |
5JW-25327-00-00 |
COVER, PLATE Price: $79.99 |
| 13 |
90149-05030-00 |
SCREW Price: $2.80 |
| 14 |
3P6-2517G-00-00 |
ROTOR, SENSOR Price: $49.99 |
| 15 |
90149-05030-00 |
SCREW This part replaces 90149-05029-00. Price: $2.80 |
| 19 |
5JW-25381-10-00 |
AXLE, WHEEL Price: $92.99 |
| 20 |
90201-181U5-00 |
WASHER, PLATE Price: $25.99 |
| 21 |
90185-18009-00 |
NUT, SELF-LOCKING Price: $20.99 |
| 22 |
92903-20600-00 |
WASHER This part replaces 92902-20600-00. Price: $9.49 |
| 23 |
5JW-25371-10-00 |
BAR, TENSION Price: $48.99 |
| 24 |
90110-08106-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 25 |
95602-08200-00 |
NUT, SELF-LOCKING Price: $3.20 |
| 26 |
90464-23239-00 |
CLAMP Price: $2.80 |
| 27 |
1MC-2537A-00-00 |
HOUSING, SENSOR REAR Price: $139.99 |
