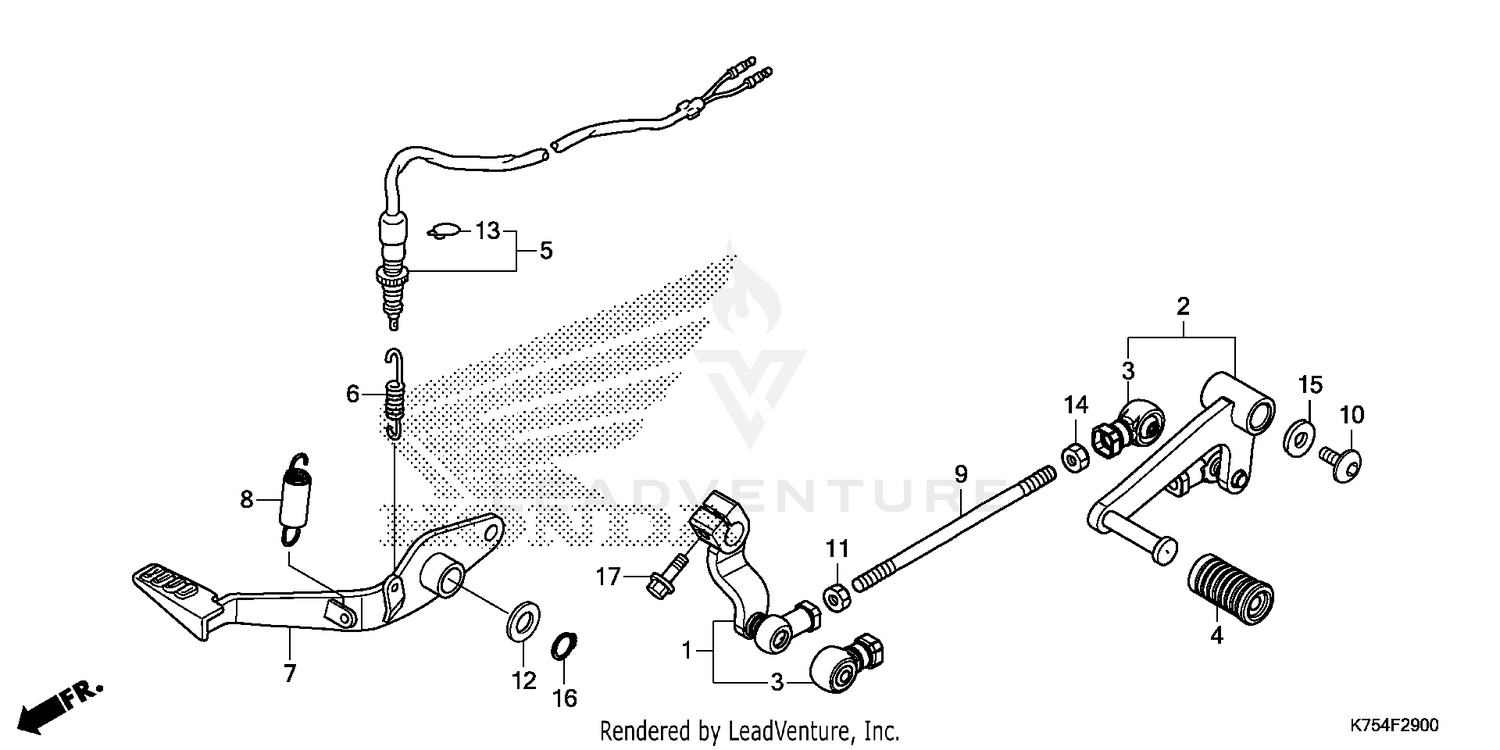

| Ref | Part Number | Description |
|---|
| 1 |
24710-KYJ-305 |
ARM, GEARSHIFT (COO) This part replaces 24710-KYJ-000. Price: $29.60 |
| 2 |
24720-KYJ-305 |
PEDAL, GEARSHIFT (COO) This part replaces 24720-KYJ-000. Price: $25.78 |
| 3 |
24724-MBW-D21 |
COVER, DUST Price: $8.76 |
| 4 |
24781-KR3-770 |
RUBBER, GEARSHIFT PEDAL Price: $4.25 |
| 5 |
35350-KYJ-902 |
SWITCH ASSY., RR. STOP Price: $18.22 |
| 6 |
35357-HP0-A00 |
SPRING, STOP SWITCH Price: $2.93 |
| 7 |
46500-KYJ-305 |
PEDAL, RR. BRAKE (COO) Price: $23.05 |
| 8 |
46513-KYJ-900 |
SPRING ASSY., BRAKE PEDAL Price: $3.69 |
| 9 |
90105-KYJ-900 |
BOLT, TIE ROD Price: $2.53 |
| 10 |
90132-KPP-T00 |
SCREW, PAN (6X10) Price: $0.98 |
| 11 |
90301-KYJ-900 |
NUT, SPECIAL (6MM) (LEFT HAND THREAD) Price: $2.60 |
| 12 |
90557-230-000 |
WASHER (15.2X25) Price: $2.73 |
| 13 |
90601-KAF-003 |
CLIP, SWITCH COVER Price: $3.05 |
| 14 |
94001-06200-0S |
NUT, HEX. (6MM) This part replaces 94001-06000-0S. Price: $1.37 |
| 15 |
94103-06700 |
WASHER, PLAIN (6MM) Price: $0.75 |
| 16 |
94511-15000 |
CIRCLIP (OUTER) (15MM) Price: $0.78 |
