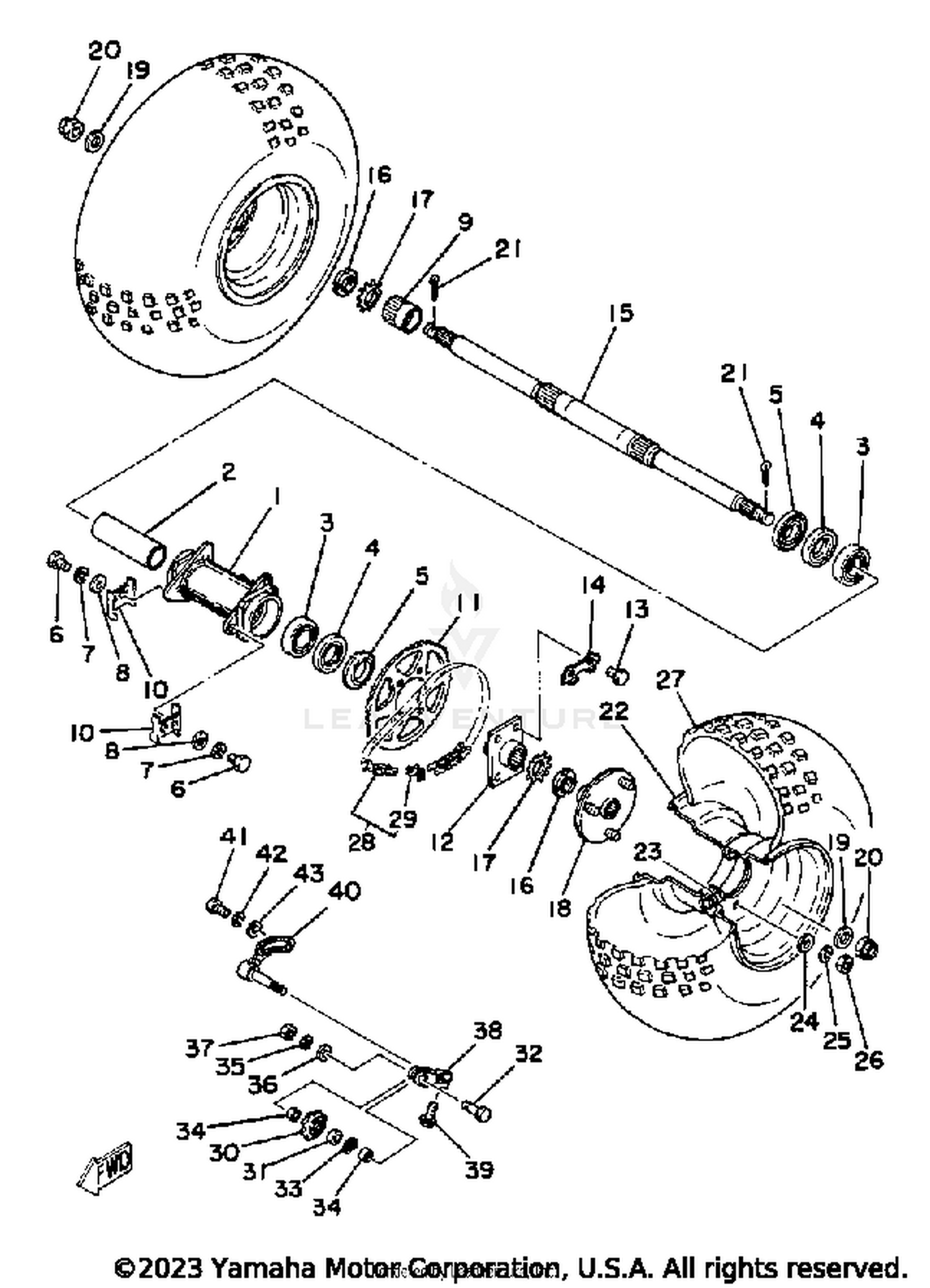

| Ref | Part Number | Description |
|---|
| 1 |
3X3-25311-00-00 |
HUB, REAR Price: $119.99 |
| 2 |
3X3-25317-00-00 |
SPACER, BEARING Price: $21.99 |
| 3 |
93306-00702-00 |
BEARING This part replaces 93306-00704-00. Price: $66.99 |
| 4 |
93106-40041-00 |
OIL SEAL This part replaces 93102-40211-00. Price: $19.49 |
| 5 |
3X3-25367-00-00 |
COVER, HUB DUST Price: $11.99 |
| 6 |
97027-08022-00 |
BOLT,HEXAGON This part replaces 97322-08022-00. Price: $1.30 |
| 7 |
92990-08100-00 |
WASHER, SPRING Price: $5.60 |
| 8 |
92990-08600-00 |
WASHER, PLATE This part replaces 92901-08600-00. Price: $2.70 |
| 9 |
3X3-25386-00-00 |
COLLAR, SPRKT AXLE Price: $38.99 |
| 10 |
3X3-25318-01-00 |
STOPPER,HUB Price: $6.86 |
| 11 |
3X3-25449-01-00 |
SPROCKET DRVN 49T Price: $50.49 |
| 12 |
3X3-25521-00-00 |
BOSS Price: $38.79 |
| 13 |
97013-08012-00 |
BOLT (661) This part replaces 97313-08012-00. Price: $3.55 |
| 14 |
3X3-25412-00-00 |
WASHER Price: $7.99 |
| 15 |
3X3-25381-00-00 |
AXLE, WHEEL Price: $143.99 |
| 16 |
90179-32365-00 |
NUT,SPEC'L SHAPE This part replaces 90179-32295-00. Price: $7.49 |
| 17 |
90215-33163-00 |
WASHER, LOCK Price: $7.99 |
| 18 |
5V7-25383-00-00 |
COLLAR, WHEEL (3X3-25383-00) Price: $117.99 |
| 19 |
92903-20600-00 |
WASHER This part replaces 92901-20600-00. Price: $9.49 |
| 20 |
95302-20900-00 |
NUT, SLOTTED Price: $4.37 |
| 21 |
91490-40045-00 |
PIN,COTTER This part replaces 91401-40040-00. Price: $9.49 |
| 23 |
93900-00030-00 |
VALVE, RIM (TR412) Price: $18.49 |
| 24 |
92990-10200-00 |
WASHER, PLAIN Price: $3.72 |
| 25 |
92990-10200-00 |
WASHER, PLAIN Price: $3.72 |
| 26 |
95380-10600-00 |
NUT Price: $2.80 |
| 28 |
94580-30060-00 |
CHAIN Price: $32.99 |
| 29 |
94682-51001-00 |
JOINT, CHAIN This part replaces 94680-30001-00. Price: $7.99 |
| 30 |
3X3-25417-00-00 |
SPROCKET, DRIVN 17T Price: $26.99 |
| 31 |
93300-60804-00 |
BEARING Price: $13.49 |
| 32 |
90101-08476-00 |
BOLT Price: $12.49 |
| 33 |
99009-22500-00 |
CIRCLIP This part replaces 93420-22056-00. Price: $9.49 |
| 34 |
90387-080A2-00 |
COLLAR Price: $4.80 |
| 35 |
92990-08100-00 |
WASHER, SPRING Price: $5.60 |
| 36 |
92990-08600-00 |
WASHER, PLATE This part replaces 92901-08600-00. Price: $2.70 |
| 37 |
95333-08600-00 |
NUT (6L2) Price: $3.80 |
| 38 |
3X3-25388-01-00 |
PULLER,CHAIN 1 Price: $16.54 |
| 39 |
97017-06020-00 |
BOLT This part replaces 97011-06020-00. Price: $4.06 |
| 40 |
3X3-25380-00-00 |
CHAIN PULLER CMPLT Price: $124.99 |
| 41 |
90101-08691-00 |
BOLT, HEX This part replaces 97313-08018-00. Price: $4.65 |
| 42 |
92990-08100-00 |
WASHER, SPRING Price: $5.60 |
