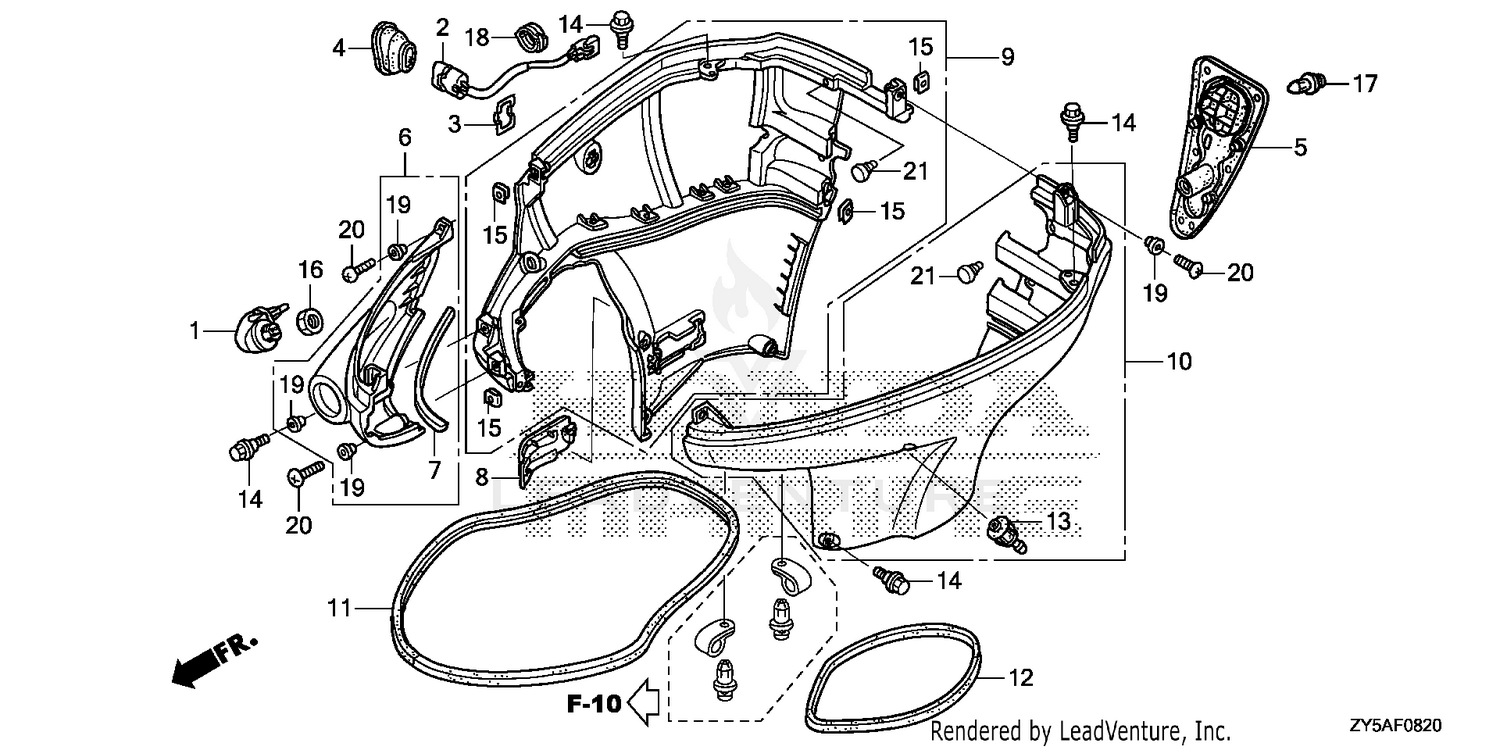

| Ref | Part Number | Description |
|---|
| 1 |
19289-ZY6-000 |
CAP, WATER JOINT Price: $38.26 |
| 2 |
35640-ZY6-003 |
SWITCH ASSY., POWER TILT Price: $74.24 |
| 3 |
35645-ZY3-000 |
STAY, POWER TILT SWITCH Price: $13.26 |
| 4 |
40114-ZY6-010 |
GROMMET, POWER TILT SWITCH Price: $15.14 |
| 5 |
40116-ZY6-000 |
GROMMET, COVER (LOWER) Price: $124.92 |
| 6 |
40151-ZY6-010ZB |
COVER, FR. SEPARATE *NHB14M* (AQUA MARINE SILVER METALLIC) Price: $150.62 |
| 6 |
40151-ZY6-010ZE |
COVER,SEPAR*NH565* Price: $122.36 |
| 7 |
40152-ZY6-300 |
SEAL, FR. SEPARATE COVER Price: $7.64 |
| 8 |
40212-ZY6-020ZB |
COVER, DRAIN PLUG *NHB14M* (AQUA MARINE SILVER METALLIC) Price: $46.76 |
| 8 |
40212-ZY6-020ZD |
COVER,DRAIN*NH565* Price: $37.98 |
| 9 |
63711-ZY6-010ZB |
COVER, R. ENGINE (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC) Price: $466.26 |
| 9 |
63711-ZY6-010ZD |
COVER COMP*NH565* Price: $390.22 |
| 10 |
63716-ZY6-010ZB |
COVER, L. ENGINE (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC) Price: $466.26 |
| 10 |
63716-ZY6-010ZD |
COVER COMP*NH565* Price: $390.22 |
| 11 |
63718-ZY6-000 |
SEAL A, COVER (LOWER) Price: $37.14 |
| 12 |
63719-ZY6-000 |
SEAL B, COVER (LOWER) Price: $16.12 |
| 13 |
82873-ZY6-010 |
GROMMET, WATER CHECK Price: $14.18 |
| 14 |
90111-ZY3-000 |
BOLT, SPECIAL (6X17) Price: $2.90 |
| 15 |
90301-ZY6-000 |
NUT, CLIP Price: $5.08 |
| 16 |
90302-921-000 |
NUT, HEX. (16MM) DUAL QTY = (2) (SINGLE) Price: $5.62 |
| 17 |
90653-HC4-900 |
CLIP, SPLASH GUARD Price: $0.74 |
| 18 |
90683-KJ2-003 |
CLIP, WIRE HARNESS Price: $4.92 |
| 19 |
91553-ZY6-000 |
COLLAR, DISTANCE (6.5X9X11.5) Price: $5.58 |
| 20 |
93500-06025-4J |
SCREW, PAN (6X25) Price: $2.28 |
