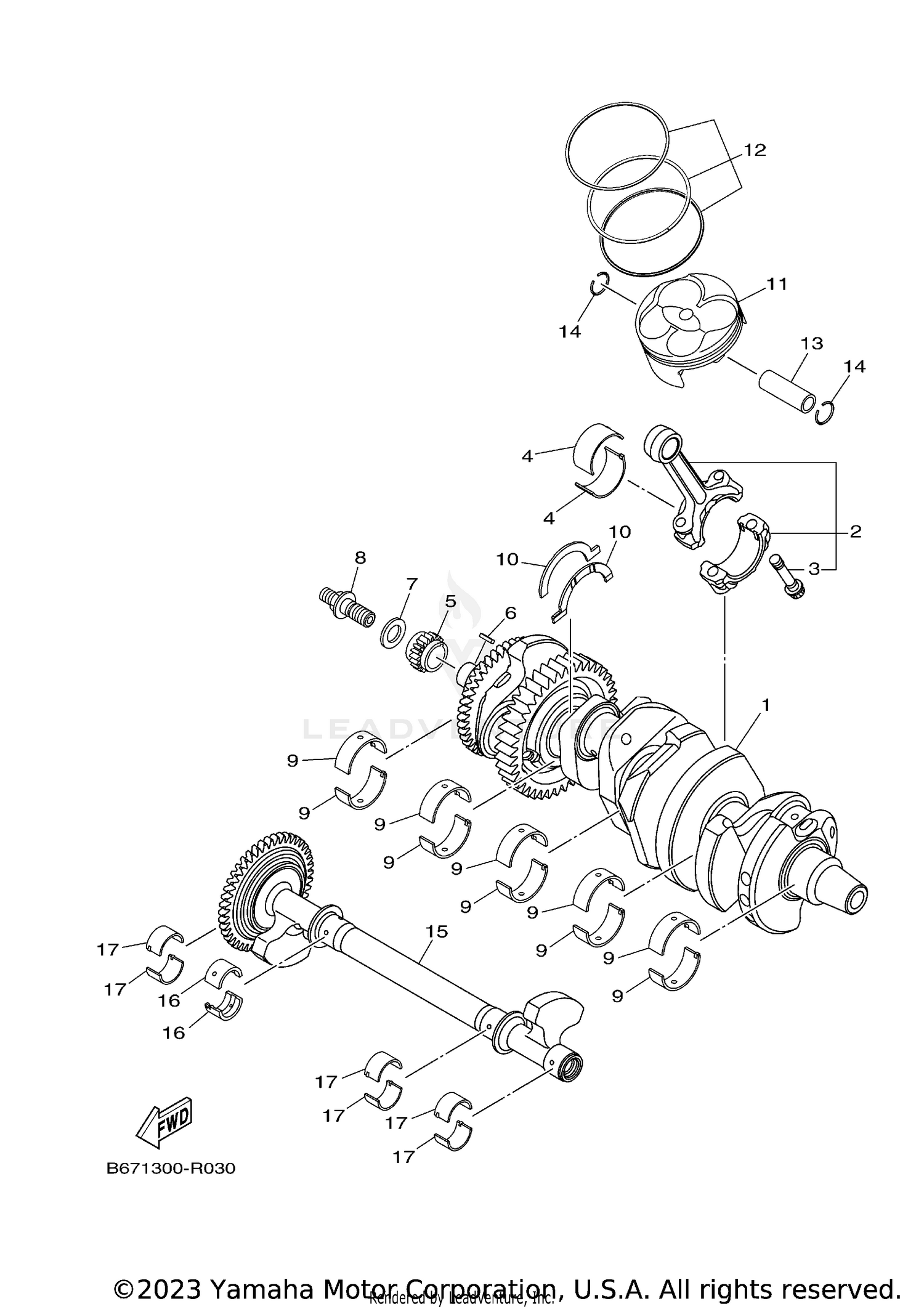

CRANKSHAFT & PISTON
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B67-11400-00-00 | CRANKSHAFT ASSY Price: $977.99 |
| 2 | B60-11650-00-00 | CONNECTING ROD ASSY Price: $197.99 |
| 3 | 5VY-11654-01-00 | BOLT, CONNECTING ROD Price: $17.99 |
| 5 | 2CR-11549-00-00 | SPROCKET, CAM CHAIN Price: $50.99 |
| 6 | 90282-03012-00 | KEY, STRAIGHT Price: $14.49 |
| 7 | 90201-13021-00 | WASHER, PLATE Price: $3.90 |
| 8 | 2CR-12157-00-00 | BOLT Price: $21.99 |
| 10 | BW8-11426-00-00 | BEARING, THRUST 1 Price: $16.49 |
| 11 | B67-11631-00-00 | PISTON (STD) Price: $182.99 |
| 12 | 2CR-11603-11-00 | PISTON RING SET (STD) Price: $72.99 |
| 13 | 4C8-11633-00-00 | PIN, PISTON Price: $46.99 |
| 14 | 93450-18170-00 | CIRCLIP Price: $0.65 |
| 15 | 2CR-11500-00-00 | BALANCER ASSY This part replaces 2CR-11500-01-00. Price: $467.99 |
