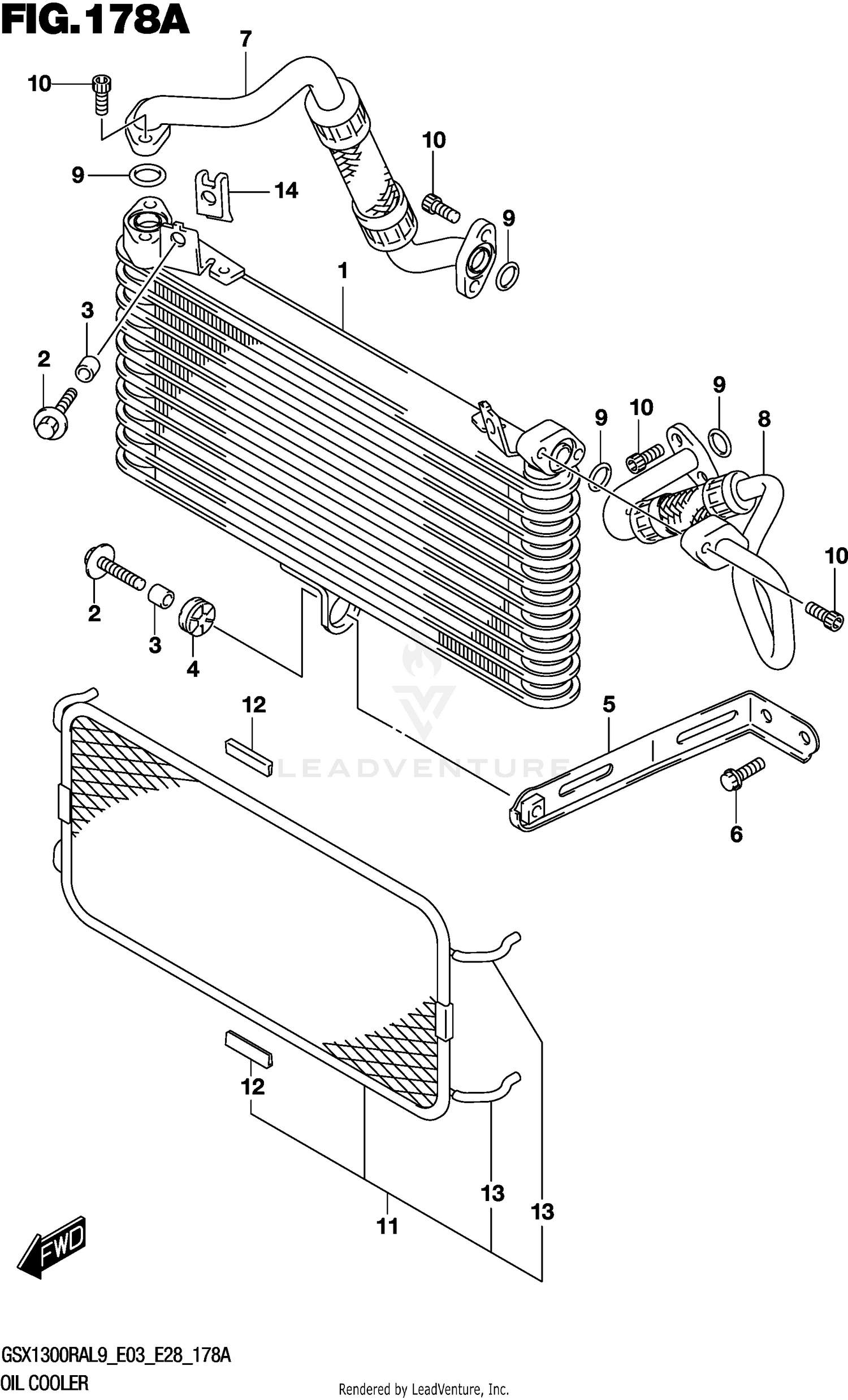

OIL COOLER
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 16600-15H20 | COOLER ASSY, OIL Price: $1,053.92 |
| 2 | 09118-06097 | BOLT (6X25) Price: $3.02 |
| 3 | 09180-06290 | SPACER (6.5X10X12) Price: $2.45 |
| 4 | 09320-10051 | CUSHION Price: $3.80 |
| 5 | 16640-24F00 | BRACKET, OIL COOLER Price: $12.08 |
| 6 | 01550-0612A | BOLT Price: $2.37 |
| 7 | 16460-15H00 | HOSE, OIL COOLER RH Price: $171.13 |
| 8 | 16470-15H00 | HOSE, OIL COOLER LH Price: $198.96 |
| 9 | 09280-15015 | O-RING (D:2.4,ID:16) Price: $5.96 |
| 10 | 09106-06073 | BOLT (6X16) Price: $2.87 |
| 11 | 16650-15H01 | GUARD,OIL COOLER This part replaces 16650-15H00. Price: $69.40 |
