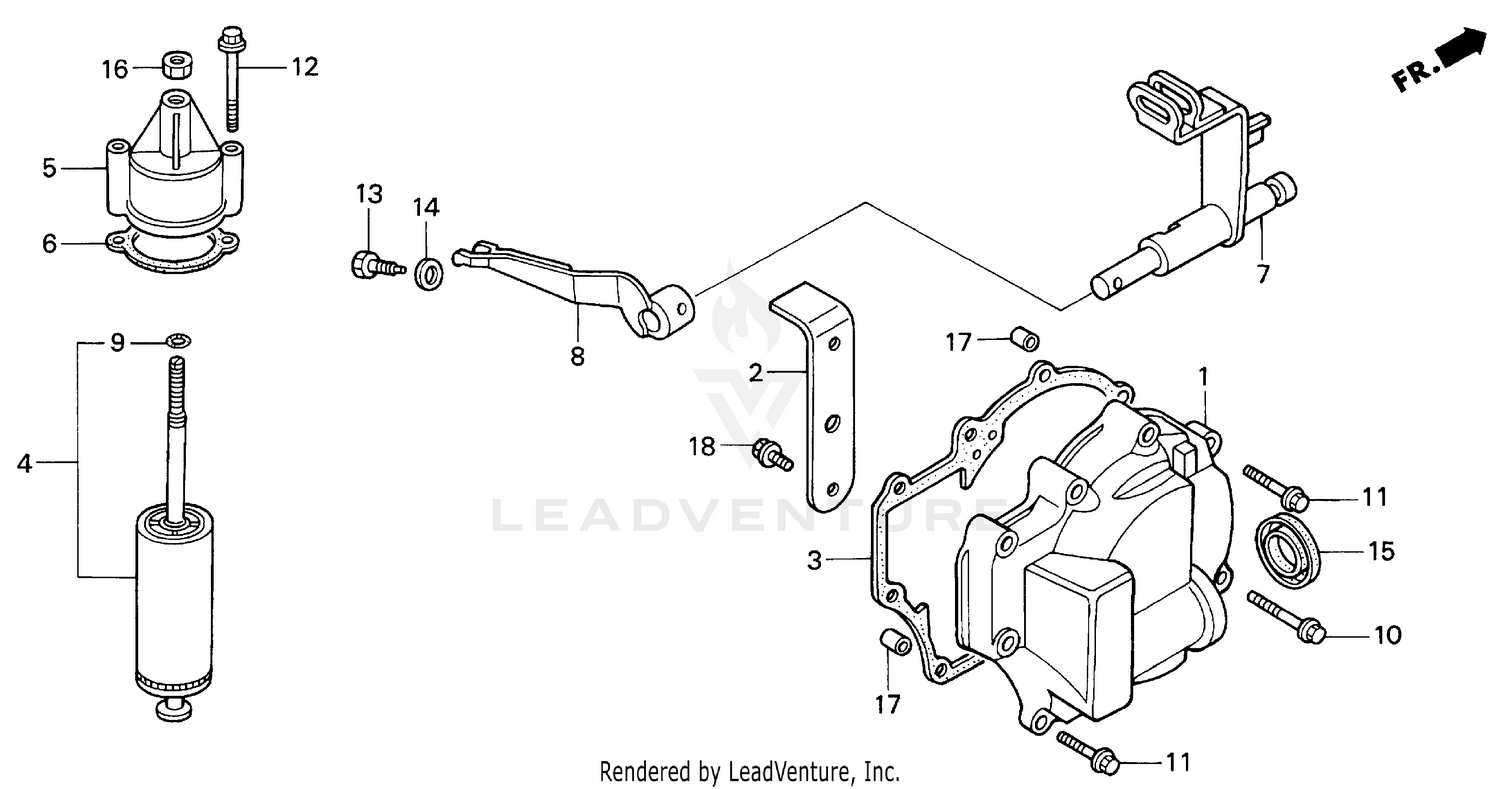

| Ref | Part Number | Description |
|---|
| 1 |
21311-758-000 |
COVER, CLUTCH Price: $147.28 |
| 2 |
21314-758-000 |
GUIDE, OIL Price: $8.12 |
| 3 |
21315-758-010 |
GASKET, CLUTCH COVER Price: $11.14 |
| 4 |
22710-758-003 |
DAMPER ASSY., CLUTCH Price: $144.02 |
| 5 |
22711-758-000 |
BRACKET, DAMPER (UPPER) Price: $19.20 |
| 6 |
22715-751-010 |
SEE PART DETAILS - PRI; GASKET, CLUTCH DAMPER Price: $7.04 |
| 6 |
22715-758-010 |
GASKET, CLUTCH DAMPER Price: $4.90 |
| 7 |
22811-758-010 |
SHAFT, CLUTCH Price: $108.36 |
| 8 |
22826-758-000 |
ARM, DAMPER Price: $38.20 |
| 9 |
52771-MB9-871 |
O-RING A (7.5X1.5) Price: $1.70 |
| 10 |
90012-751-000 |
BOLT, FLANGE (6X40) (CT200) Price: $3.62 |
| 11 |
90014-ZE6-000 |
BOLT, FLANGE (6X35) (Honda Code 1688076). Price: $2.60 |
| 12 |
90014-888-000 |
BOLT, FLANGE (6X50) (Honda Code 0671537). Price: $5.56 |
| 13 |
90029-611-010 |
SEE PART DETAILS - PRI; BOLT, SPECIAL (8X24) Price: $11.70 |
| 14 |
90412-679-000 |
WASHER, CONICAL SPRING (8MM) Price: $6.70 |
| 15 |
91214-GK1-004 |
OIL SEAL (26X34.5X5.5) Price: $7.50 |
| 16 |
94030-08000 |
SEE PART DETAILS - PRI; NUT, HEX. (8MM) Price: $1.34 |
| 17 |
94301-08140 |
SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310). Price: $2.82 |
