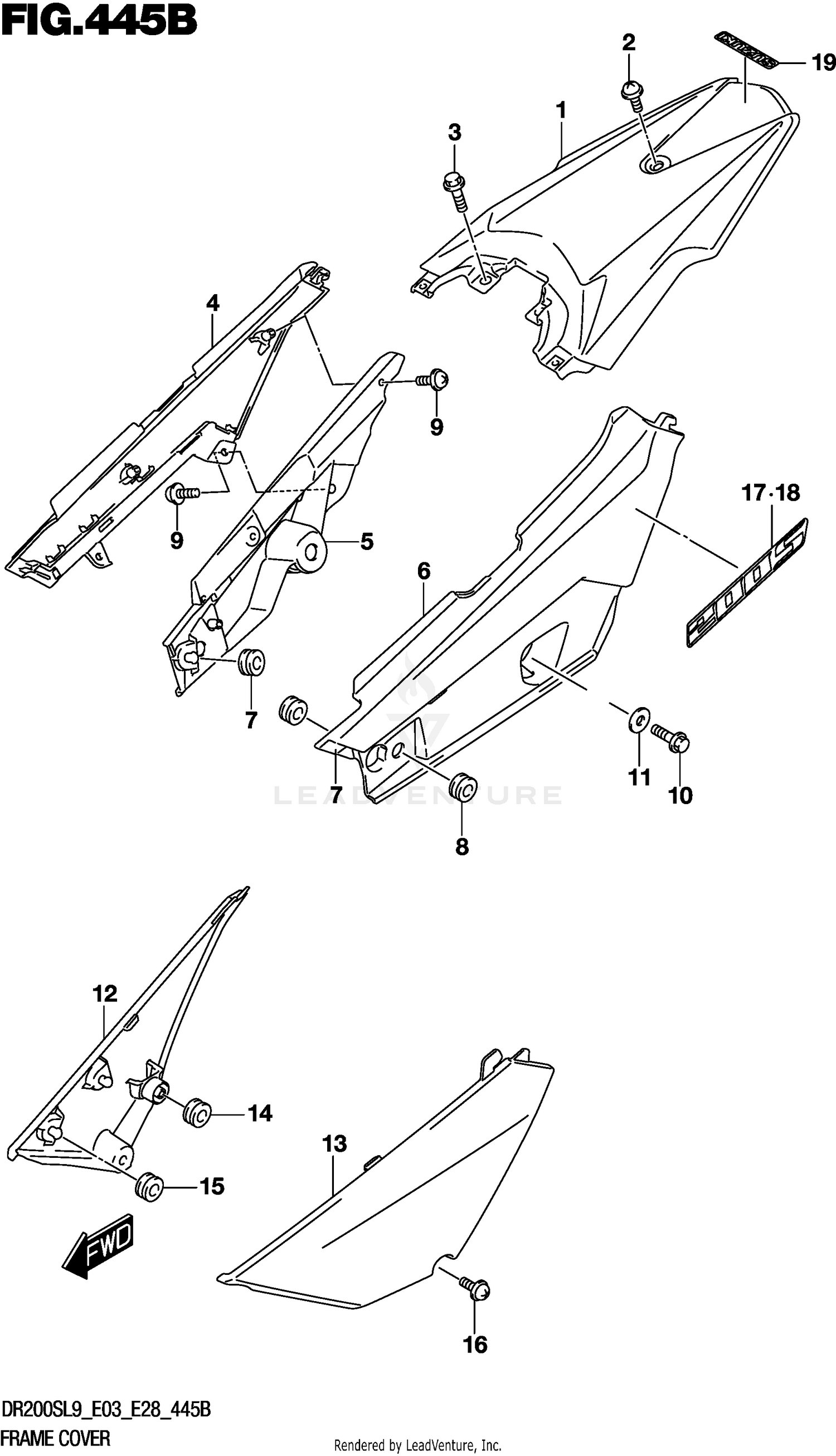

FRAME COVER (DR200SL9 E28)
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 47311-49J00-30H | COVER Price: $98.84 |
| 2 | 09139-06188 | SCREW (6X12) Price: $3.91 |
| 3 | 01550-0612A | BOLT Price: $2.37 |
| 4 | 47121-49J00-30H | COVER Price: $86.92 |
| 5 | 47131-49J00 | COVER, FRAME INNER RH Price: $39.89 |
| 6 | 47221-49J00-30H | COVER Price: $86.92 |
| 7 | 09320-08018 | CUSHION (8X26X7) Price: $3.70 |
| 8 | 09320-08028 | CUSHION (8X26X7) Price: $3.70 |
| 9 | 03541-0516A | SCREW Price: $1.65 |
| 10 | 09135-08012 | BOLT (8X25) Price: $2.74 |
| 11 | 09169-08045 | WASHER Price: $2.50 |
| 12 | 47111-49J00-30H | COVER Price: $93.00 |
| 13 | 47211-49J00-30H | COVER Price: $93.00 |
| 14 | 47161-08G00 | CUSHION, MUFFLER Price: $10.42 |
| 15 | 09320-08029 | CUSHION Price: $2.83 |
| 16 | 09139-06169 | SCREW (6X16) Price: $3.78 |
| 18 | 68145-49J30-8WM | EMBLEM, "200" LH Price: Call Us |
