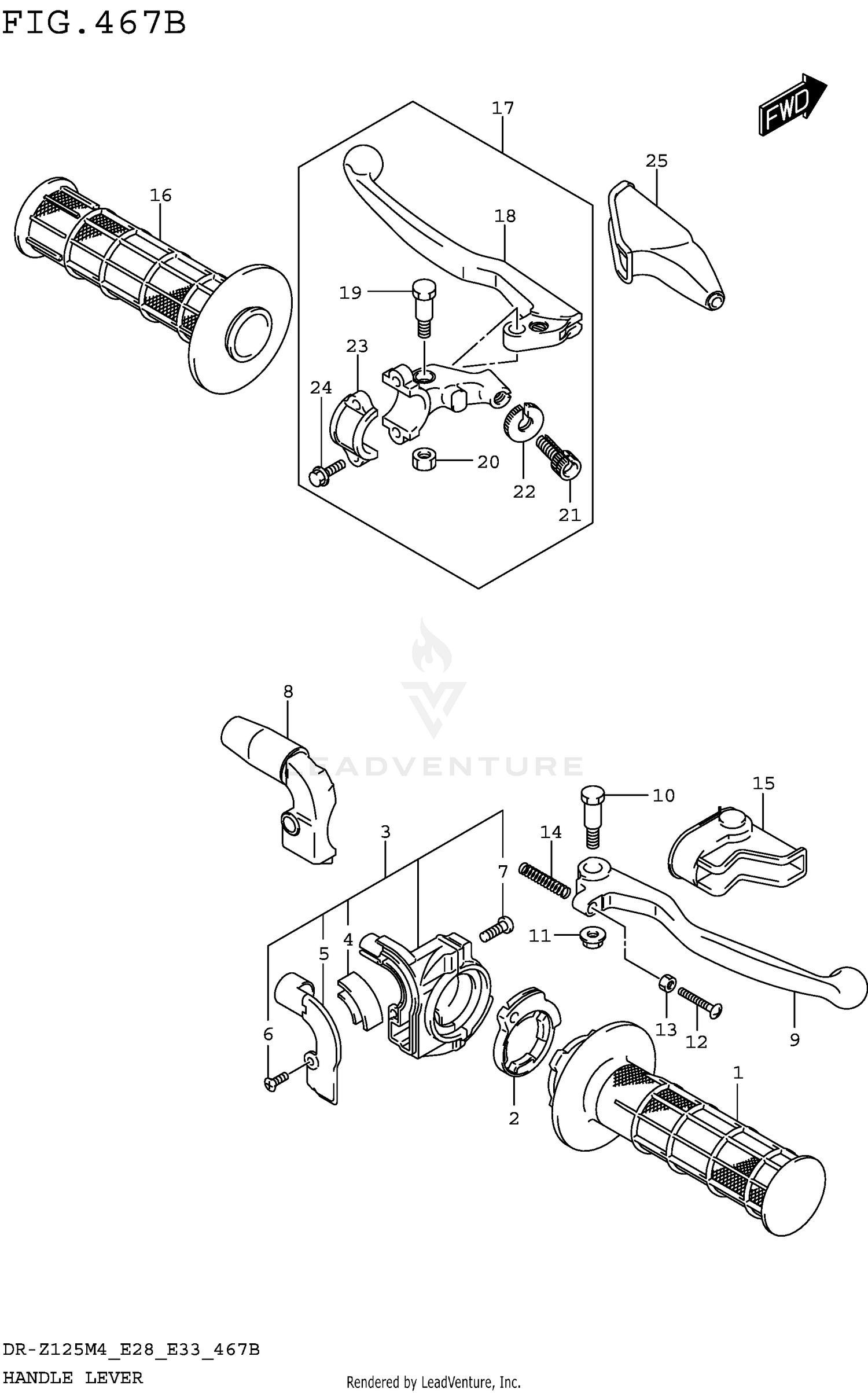

HANDLE LEVER (DR-Z125L)
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 57110-27C00 | GRIP, THROTTLE Price: $32.58 |
| 2 | 57114-20430 | ROTOR, THROTTLE Price: $13.59 |
| 3 | 57100-03D12 | CASE ASSY, THROTTLE Price: $56.38 |
| 8 | 57129-08G00 | COVER, THROTTLE CASE Price: $23.59 |
| 9 | 57421-27C00 | LEVER, BRAKE Price: $17.09 |
| 10 | 57431-14500 | BOLT Price: $7.76 |
| 11 | 08316-1006B | NUT This part replaces 57442-14500. Price: $3.02 |
| 12 | 57431-14511 | BOLT, ADJUST Price: $7.37 |
| 13 | 08310-0005A | NUT Price: $2.22 |
| 14 | 57318-14502 | SPRING Price: $5.53 |
| 15 | 57341-14501 | COVER, BRAKE LEVER Price: $10.13 |
| 16 | 57211-27C00 | GRIP, LH Price: $15.18 |
| 17 | 57500-14322 | LEVER ASSY, CLUTCH Price: $47.73 |
