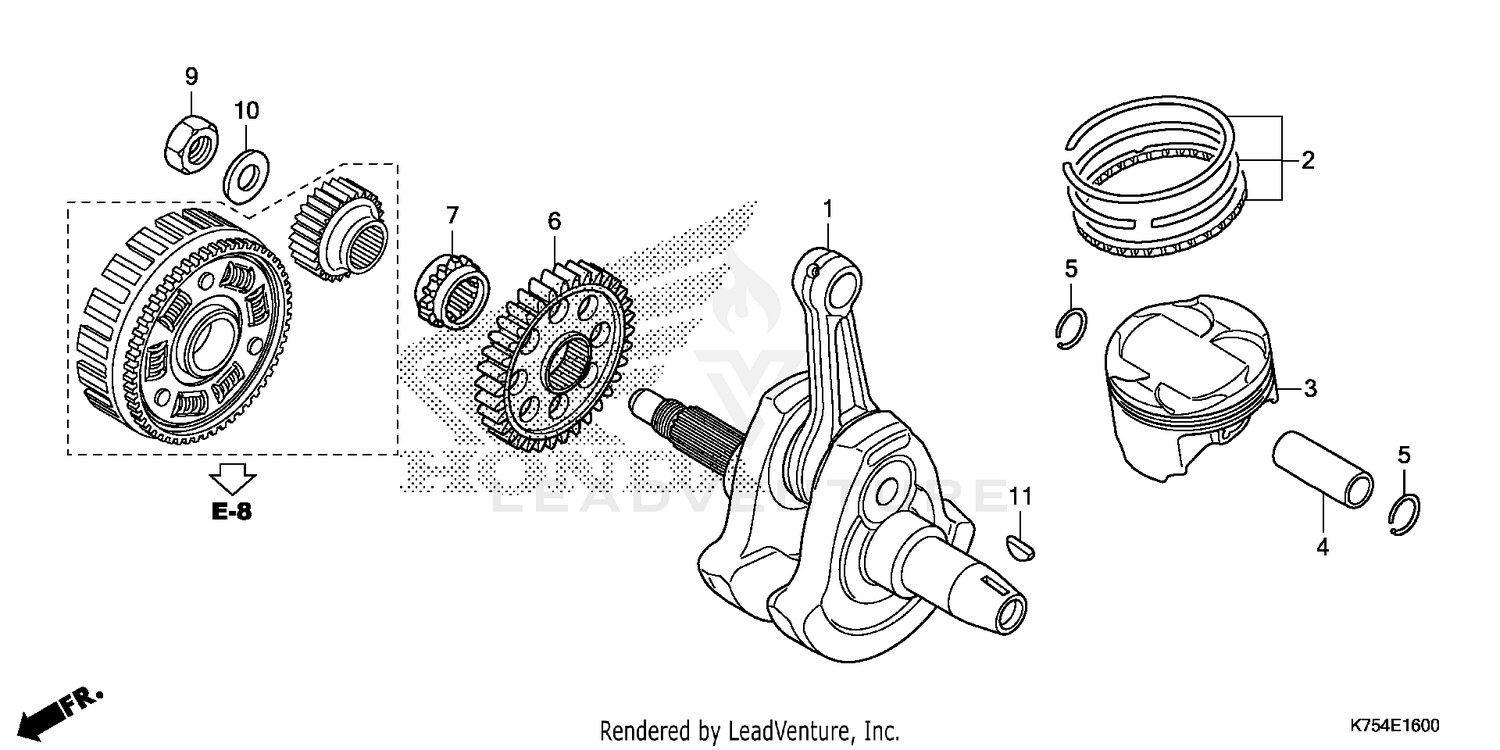

CRANKSHAFT@PISTON
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13000-K33-D04 | CRANKSHAFT (N/A- ORDER 06130-K33-305) Price: Call Us |
| 2 | 13010-KYJ-305 | RING SET, PISTON (STD) Price: $24.60 |
| 3 | 13101-K33-D00 | PISTON Price: $74.55 |
| 4 | 13111-MEL-000 | PIN, PISTON Price: $91.00 |
| 5 | 13112-K33-D00 | CLIP, PISTON PIN (17MM) Price: $1.40 |
| 6 | 13417-K33-D00 | GEAR, BALANCER DRIVE (35T) Price: $41.73 |
| 7 | 14311-KYJ-900 | SPROCKET, TIMING (17T) Price: $11.33 |
| 9 | 90235-KYJ-900 | NUT, LOCK (16MM) Price: $6.27 |
| 10 | 90434-KPS-900 | WASHER (16MM) Price: $2.27 |
