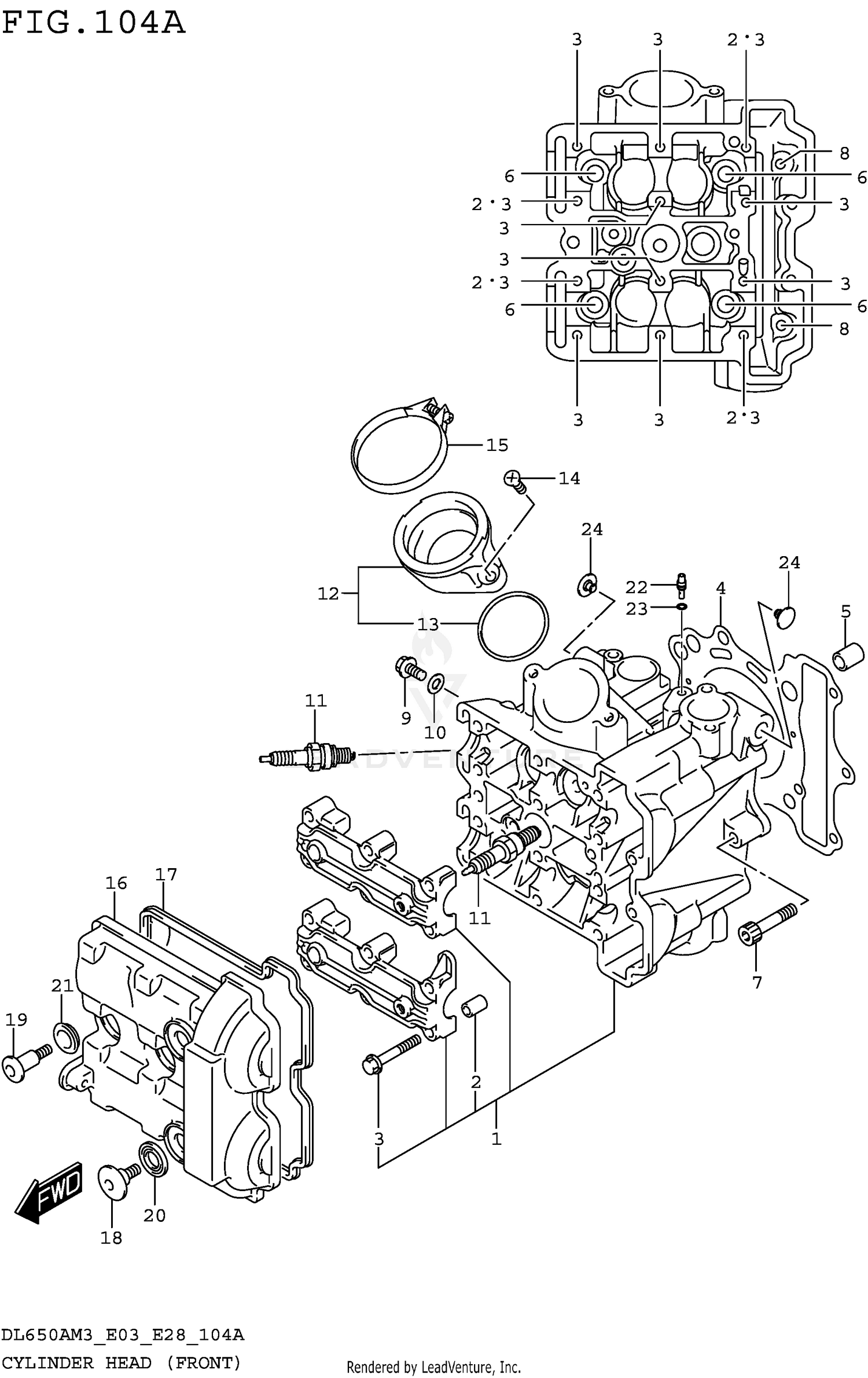

CYLINDER HEAD (FRONT)
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11101-44H01 | HEAD ASSY,CYLINDER FRONT Price: $959.68 |
| 5 | 04211-13189 | PIN (10.4X13X18) Price: $2.64 |
| 6 | 11117-44H00 | BOLT,CYL HEAD (L:160) Price: $21.32 |
| 8 | 09103-06103 | BOLT (6X70) Price: $2.95 |
| 9 | 01550-0612A | BOLT Price: $2.37 |
| 10 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 12 | 13101-17G11 | PIPE ASSY,INTAKE FRONT Price: $59.76 |
| 14 | 02122-0616B | SCREW Price: $2.39 |
| 16 | 11171-19F20 | COVER,CYLINDER HEAD FR Price: $163.93 |
| 18 | 09106-07021 | BOLT (7X17.5) Price: $5.49 |
| 19 | 09106-07010 | BOLT (7X31) Price: $5.74 |
| 21 | 11192-13E00 | CUSHION,HEAD COVER BOLT Price: $5.36 |
| 22 | 09493-80005 | JET (#80) Price: $17.07 |
| 23 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
