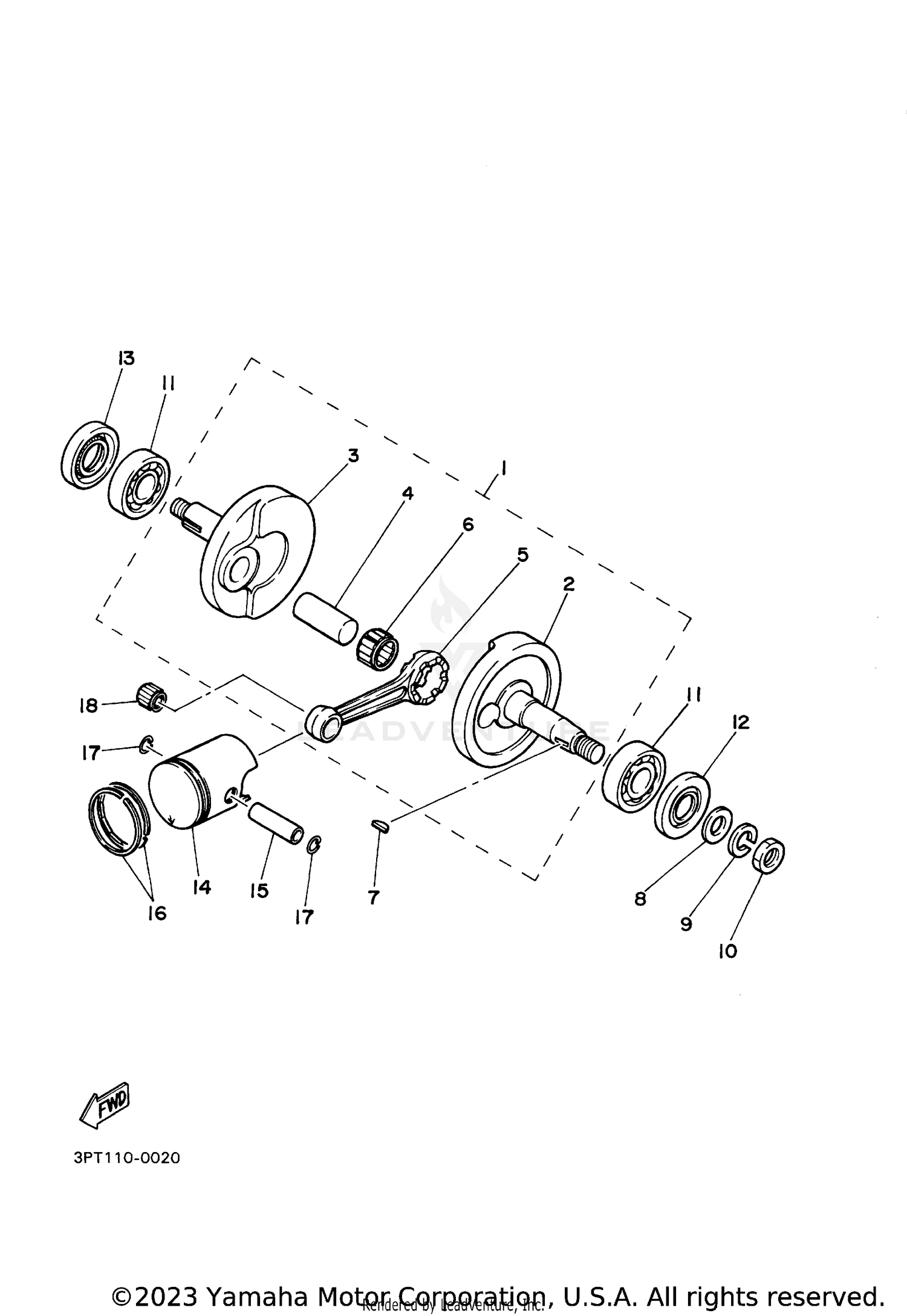

CRANKSHAFT PISTON
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3L5-11400-02-00 | CRANKSHAFT ASSY Price: $383.99 |
| 2 | 3L5-11412-00-00 | CRANK 1 Price: $111.99 |
| 3 | 3L5-11422-02-00 | CRANK 2 This part replaces 3L5-11422-01-00. Price: $86.99 |
| 4 | 1YU-11681-00-00 | PIN, CRANK 1 Price: $33.99 |
| 5 | 2E9-11651-00-00 | ROD, CONNECTING Price: $122.99 |
| 6 | 93310-416N7-00 | BEARING Price: $39.99 |
| 7 | 90280-03017-00 | KEY, WOODRUFF This part replaces 90280-03045-00. Price: $8.49 |
| 8 | 92907-12600-00 | WASHER, PLATE Price: $1.85 |
| 9 | 92907-12100-00 | WASHER, SPRING Price: $9.49 |
| 10 | 95317-12700-00 | NUT This part replaces 95307-12700-00. Price: $9.49 |
| 11 | 93306-20335-00 | BEARING This part replaces 93306-20326-00. Price: $38.99 |
| 12 | 93102-17067-00 | OIL SEAL Price: $12.49 |
| 13 | 93102-23174-00 | OIL SEAL Price: $16.49 |
| 14 | 18U-11631-00-A0 | PISTON (STD) Price: $96.99 |
| 15 | 2E9-11633-00-00 | PIN, PISTON This part replaces 3L5-11633-00-00. Price: $12.99 |
| 16 | 260-11601-03-00 | PISTON RING SET (STD) This part replaces 260-11610-04-00. Price: $70.99 |
| 17 | 93450-11021-00 | CIRCLIP Price: $2.90 |
