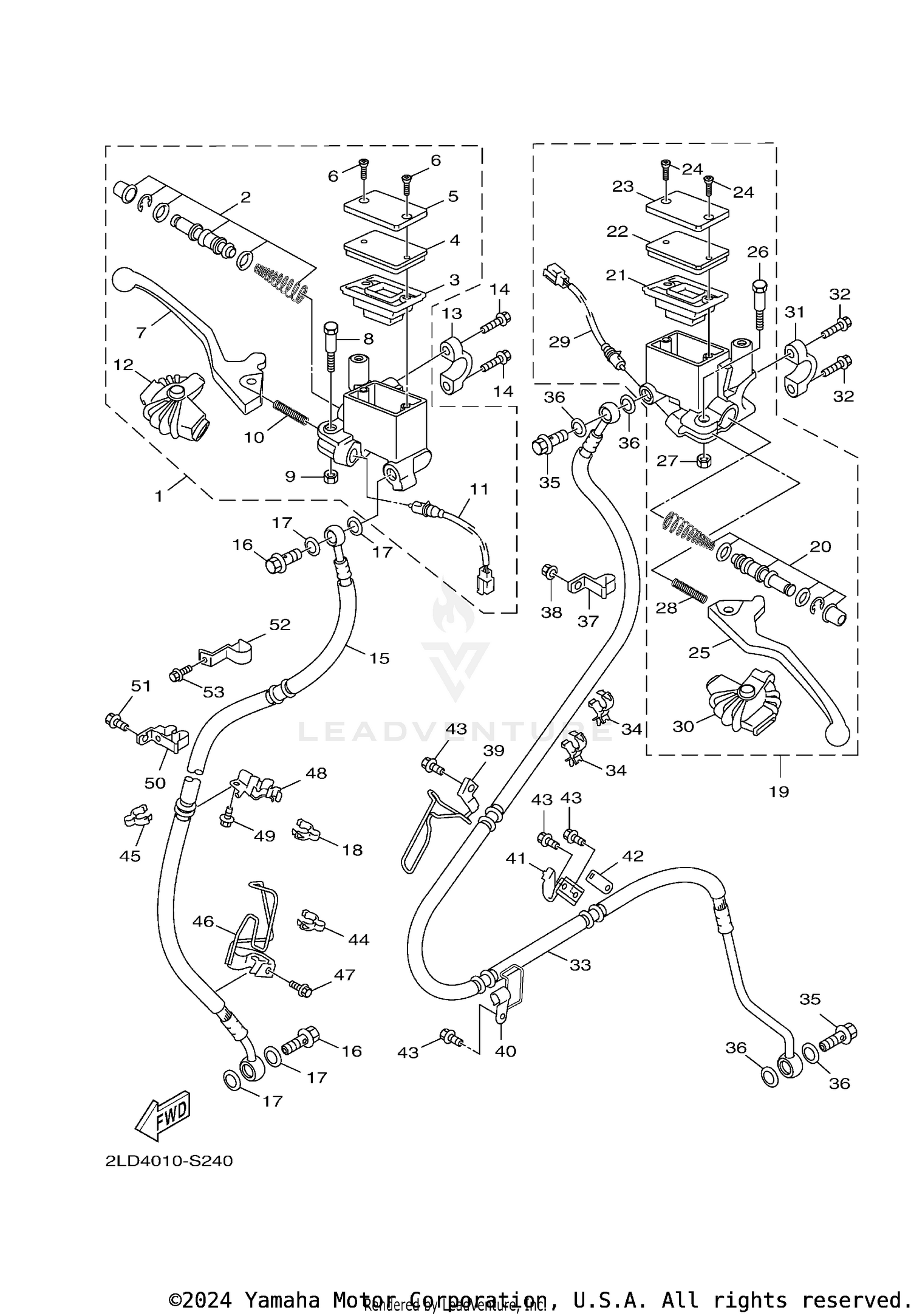

| Ref | Part Number | Description |
|---|
| 1 |
1DK-F5870-01-00 |
MASTER CYLINDER SUB ASSY Price: $82.99 |
| 2 |
5NW-W0041-00-00 |
CYLINDER KIT, MASTER Price: $11.49 |
| 3 |
53B-F5854-00-00 |
DIAPHRAGM, RESERVOIR Price: $3.55 |
| 4 |
53B-F5855-00-00 |
BUSH, DIAPHRAGM Price: $2.05 |
| 5 |
1DK-F5852-00-00 |
CAP, RESERVOIR Price: $3.99 |
| 6 |
98707-04012-00 |
SCREW, FLAT HEAD Price: $1.85 |
| 7 |
1DK-H3922-00-00 |
LEVER 2 Price: $13.49 |
| 8 |
41D-H3945-00-00 |
BOLT, LEVER Price: $1.15 |
| 9 |
95617-06100-00 |
NUT, U This part replaces 95607-06100-00. Price: $2.90 |
| 10 |
90501-10312-00 |
SPRING, COMPRESSION Price: $9.49 |
| 11 |
1DK-H3980-01-00 |
FRONT STOP SWITCH ASSY Price: $13.49 |
| 12 |
1DK-F6372-01-00 |
COVER, HANDLE LEVER 1 Price: $7.99 |
| 13 |
3GF-F5867-00-00 |
BRACKET, MASTER CYLINDER Price: $3.50 |
| 14 |
90105-068B4-00 |
BOLT, FLANGE Price: $2.35 |
| 15 |
1DK-F5872-01-00 |
HOSE, BRAKE 1 Price: $52.99 |
| 16 |
90401-10820-00 |
BOLT, UNION Price: $3.25 |
| 17 |
90201-10118-00 |
WASHER, PLATE Price: $3.80 |
| 18 |
90464-17003-00 |
CLAMP Price: $3.90 |
| 19 |
1DK-F5870-11-00 |
MASTER CYLINDER SUB ASSY Price: $103.99 |
| 20 |
5NW-W0041-00-00 |
CYLINDER KIT, MASTER Price: $11.49 |
| 21 |
53B-F5854-00-00 |
DIAPHRAGM, RESERVOIR Price: $3.55 |
| 22 |
53B-F5855-00-00 |
BUSH, DIAPHRAGM Price: $2.05 |
| 23 |
1DK-F5852-00-00 |
CAP, RESERVOIR Price: $3.99 |
| 24 |
98707-04012-00 |
SCREW, FLAT HEAD Price: $1.85 |
| 25 |
1DK-H3912-00-00 |
LEVER 1 Price: $13.49 |
| 26 |
41D-H3945-00-00 |
BOLT, LEVER Price: $1.15 |
| 27 |
95617-06100-00 |
NUT, U This part replaces 95607-06100-00. Price: $2.90 |
| 28 |
90501-10312-00 |
SPRING, COMPRESSION Price: $9.49 |
| 29 |
1DK-H3980-11-00 |
FRONT STOP SWITCH ASSY Price: $12.49 |
| 30 |
1DK-F637A-01-00 |
COVER, HANDLE LEVER 2 Price: $7.99 |
| 31 |
3GF-F5867-00-00 |
BRACKET, MASTER CYLINDER Price: $3.50 |
| 32 |
90105-068B4-00 |
BOLT, FLANGE Price: $2.35 |
| 33 |
1DK-F5873-00-00 |
HOSE, BRAKE 2 Price: $120.99 |
| 34 |
90464-16803-00 |
CLAMP Price: $0.85 |
| 35 |
90401-10820-00 |
BOLT, UNION Price: $3.25 |
| 36 |
90201-10118-00 |
WASHER, PLATE Price: $3.80 |
| 37 |
1DK-F588F-00-00 |
HOLDER, BRAKE HOSE 5 Price: $10.99 |
| 38 |
90176-06065-00 |
NUT, CROWN Price: $10.49 |
| 39 |
1DK-F5887-00-00 |
HOLDER, BRAKE HOSE Price: $12.49 |
| 40 |
1DK-F588G-00-00 |
HOLDER, BRAKE HOSE 6 Price: $53.99 |
| 41 |
1DK-F8216-00-00 |
PLATE, LOCK 1 Price: $3.99 |
| 42 |
1DK-F1682-00-00 |
STAY, PLATE Price: $1.10 |
| 43 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95807-06012-00. Price: $1.95 |
| 44 |
90464-14803-00 |
CLAMP Price: $0.50 |
| 45 |
90464-14810-00 |
CLAMP Price: $1.10 |
| 46 |
1DK-F5875-00-00 |
HOLDER, BRAKE HOSE 1 Price: $10.49 |
| 47 |
95817-06014-00 |
BOLT, FLANGE This part replaces 95807-06014-00. Price: $2.80 |
| 48 |
1DK-F5876-00-00 |
HOLDER, BRAKE HOSE 2 Price: $6.99 |
| 49 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95807-06012-00. Price: $1.95 |
| 50 |
1DK-F587A-00-00 |
HOLDER, BRAKE HOSE Price: $3.60 |
| 51 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95802-06012-00. Price: $1.95 |
| 52 |
1DK-F5886-00-00 |
HOLDER, BRAKE HOSE Price: $3.15 |
