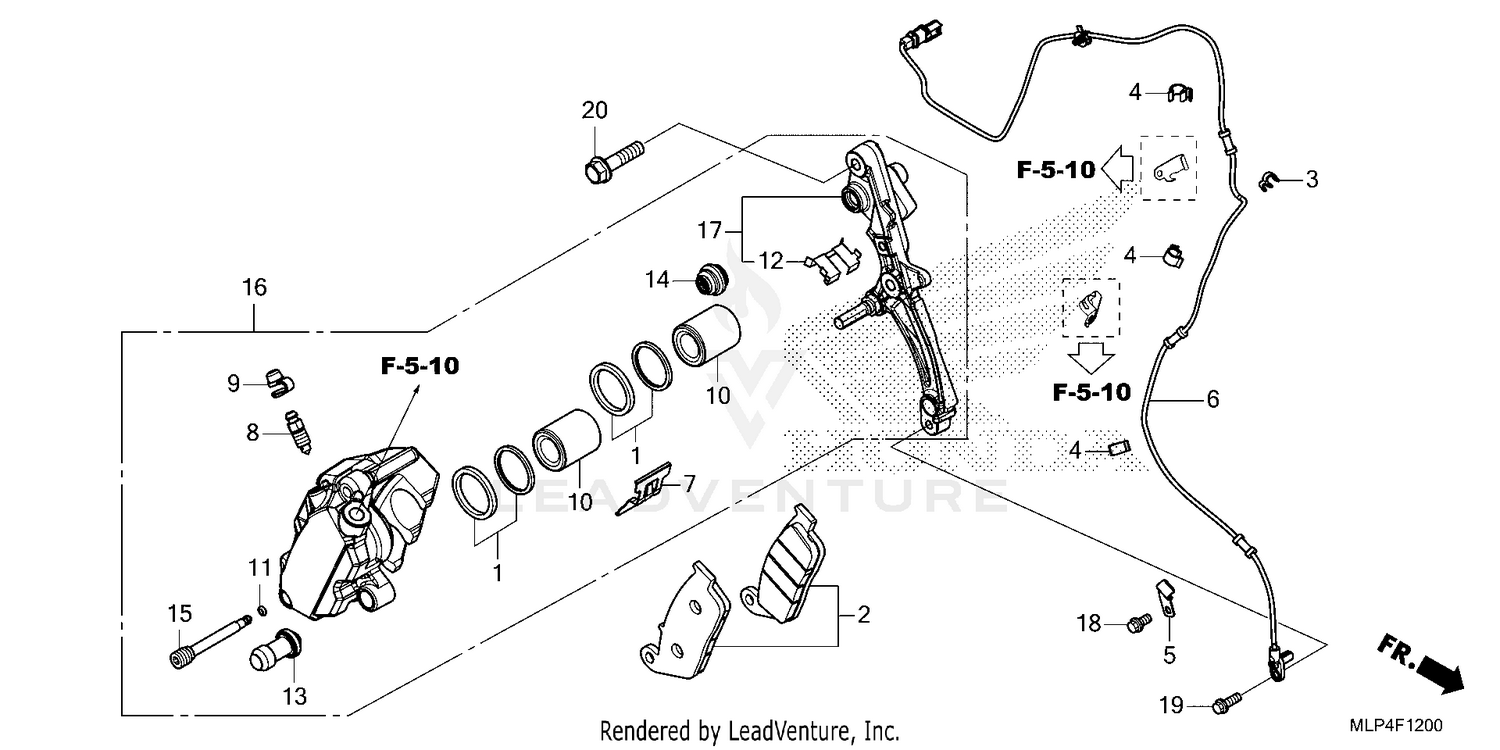

| Ref | Part Number | Description |
|---|
| 1 |
06431-MA3-405 |
SEAL SET, PISTON (RIGHT SIDE, QTY-1) Price: $9.21 |
| 2 |
06455-K3S-JA1 |
PAD SET, FR. Price: $87.22 |
| 3 |
38516-MGE-003 |
CLAMP, ABS WIRE (D8.5) Price: $3.55 |
| 4 |
38517-MGE-003 |
CLAMP, ABS WIRE (D12) Price: $3.11 |
| 5 |
38517-MKA-D80 |
CLAMP, SENSOR WIRE Price: $1.20 |
| 6 |
38520-K3S-JA1 |
SENSOR, FR. Price: $22.88 |
| 7 |
43108-MCT-006 |
SPRING, PAD Price: $6.18 |
| 8 |
43352-568-003 |
SCREW, BLEEDER (NISSIN) Price: $9.98 |
| 9 |
43353-461-771 |
CAP, BLEEDER Price: $6.35 |
| 10 |
45107-ML4-006 |
PISTON (NISSIN) Price: $45.89 |
| 11 |
45111-MAJ-G41 |
RING, STOPPER Price: $4.78 |
| 12 |
45112-MS9-611 |
RETAINER Price: $6.85 |
| 13 |
45132-166-016 |
BOOT, PIN BUSH (NISSIN) Price: $6.85 |
| 14 |
45133-MA3-006 |
BOOT B Price: $6.85 |
| 15 |
45215-MAJ-G41 |
PIN, HANGER Price: $8.09 |
| 16 |
45250-MKP-J81 |
CALIPER SUB-ASSY., R. FR. (NISSIN) Price: $205.02 |
| 17 |
45290-MKP-J81 |
BRACKET SUB-ASSY., R. FR. Price: $58.38 |
| 18 |
90013-GHB-610 |
BOLT, FLANGE (6X12) (L. SIDE ONLY) Price: $2.65 |
| 19 |
90116-MKP-DN0 |
BOLT, FLANGE (6X16) Price: $1.22 |
