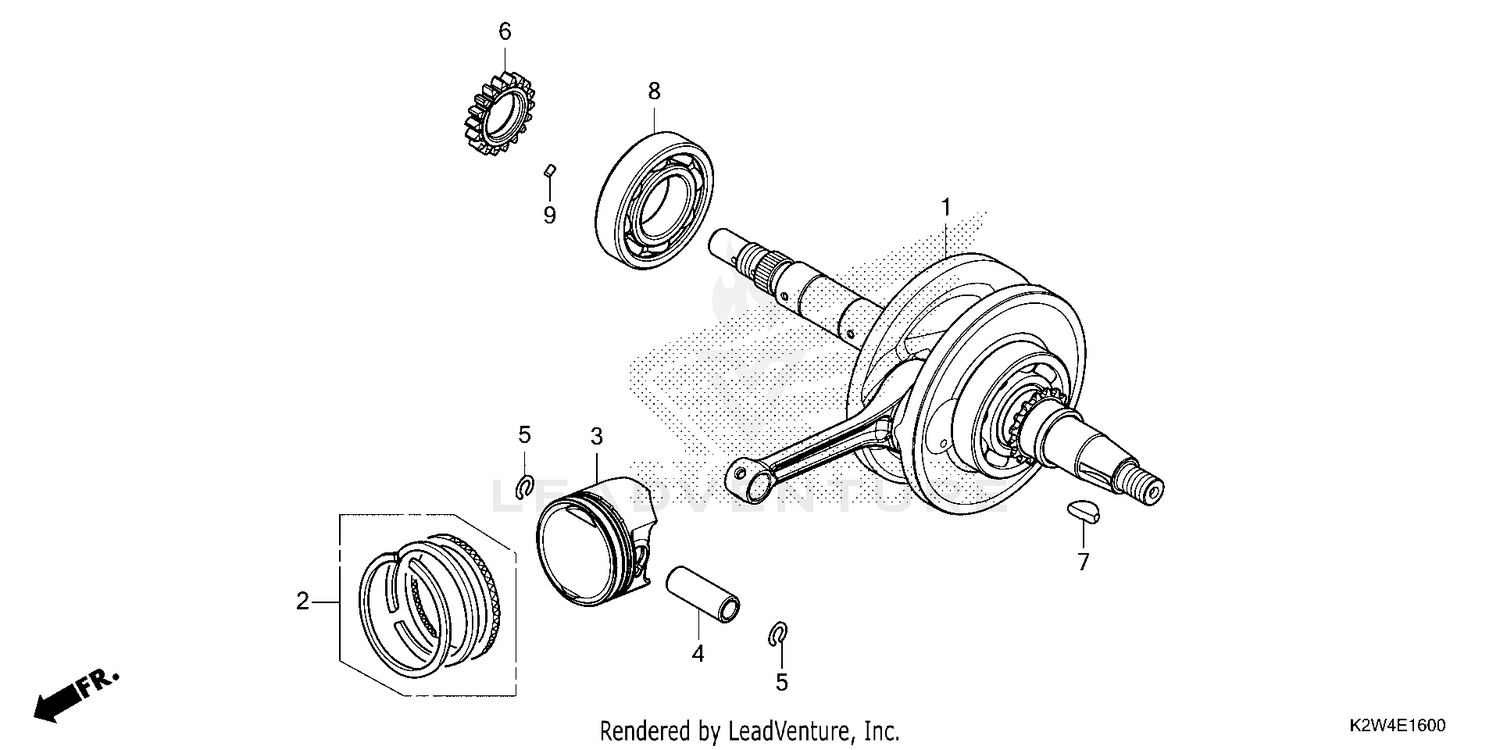

CRANKSHAFT@PISTON
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13000-K1M-T00 | CRANKSHAFT Price: $114.64 |
| 2 | 13011-K0L-D00 | RING SET (STD) Price: $7.15 |
| 2 | 13011-K1J-D00 | RING SET, PISTON (STD) (TPR) Price: $7.29 |
| 3 | 13101-K26-G00 | PISTON (STD) Price: $30.73 |
| 4 | 13111-K0J-N00 | PIN, PISTON Price: $11.29 |
| 5 | 13115-K1M-T00 | CLIP, PISTON PIN (12MM) Price: $1.78 |
| 6 | 15341-K1M-T01 | GEAR, OIL PUMP DRIVE (18T) Price: $10.29 |
| 7 | 90701-HB6-010 | KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000. Price: $4.76 |
| 8 | 91001-K1M-T02 | BEARING, R. RADIAL BALL SPECIAL (62/28) (NTN) Price: $18.00 |
