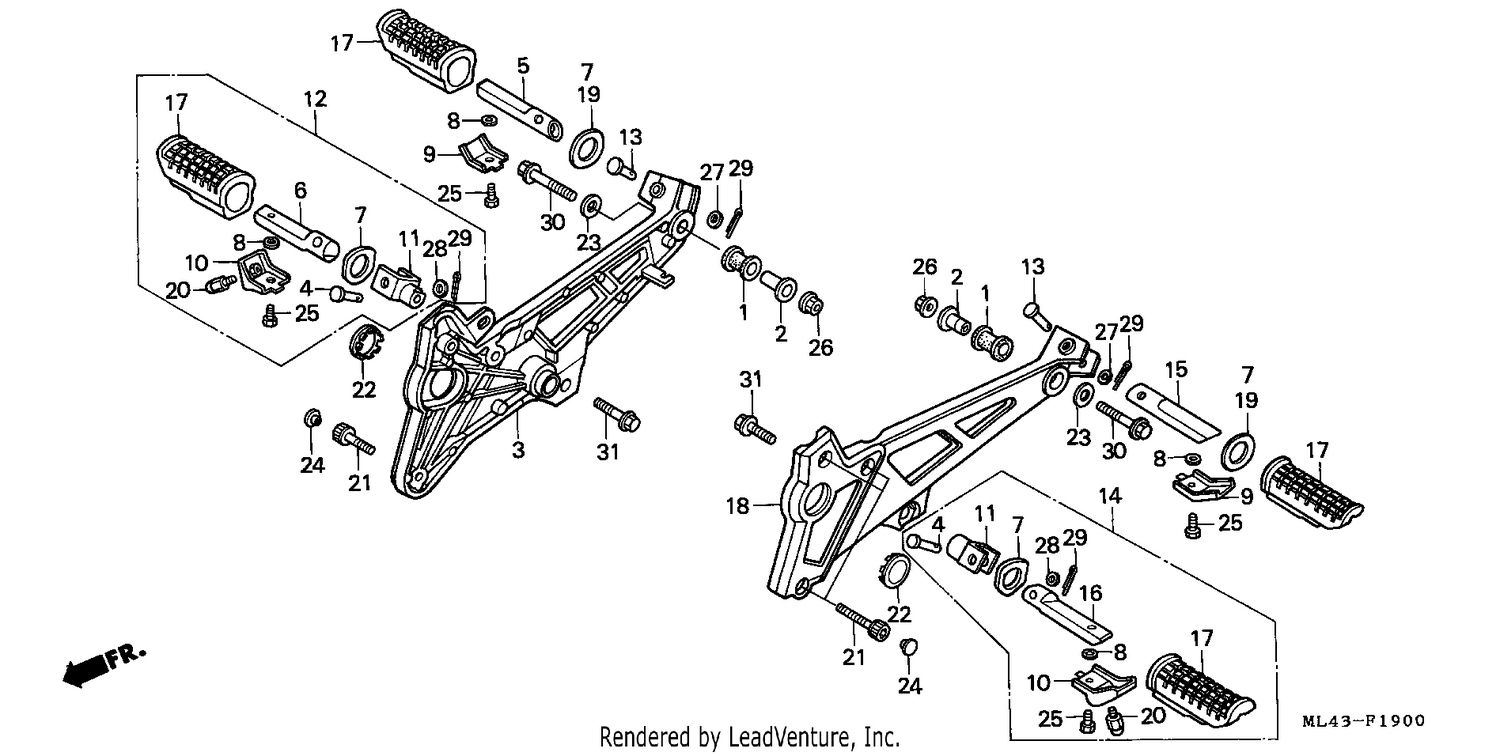

STEP

STEP

Parts (30)

RefPart NumberDescription
1 18421MA6000 RUBBER, MUFFLER MOUNTING Price: Call Us
2 18422MA6000 COLLAR, MUFFLER MOUNTING Price: Call Us
3 50600ML4000 HOLDER, R. STEP Price: Call Us
4 50603KE8000 PIN, MAIN STEP BAR JOINT Price: Call Us
5 50612KE8000 BAR, R. MAIN STEP Price: Call Us
6 50612ML4000 BAR, R. MAIN STEP Price: Call Us
7 50614KE8000 PLATE, MAIN STEP SIDE Price: Call Us
8 50618KE8000 COLLAR, 6.5X11X3 Price: Call Us
9 50619KE8000 PLATE, MAIN STEP LOWER Price: Call Us
10 50619MJ6000 PLATE COMP., MAIN STEP LOWER Price: Call Us
11 50623ML4000 BRACKET, MAIN STEP Price: Call Us
12 50630ML4000 BAR ASSY., R. MAIN STEP Price: Call Us
13 50639MJ0000 PIN, STEP BAR JOINT Price: Call Us
14 50640ML4000 BAR ASSY., L. MAIN STEP Price: Call Us
15 50643KE8000 BAR, L. MAIN STEP Price: Call Us
16 50643ML4000 BAR, L. MAIN STEP Price: Call Us
17 50661MF2000 RUBBER, MAIN STEP Price: Call Us
18 50700ML4000 HOLDER, L. STEP Price: Call Us
19 50715ML4000 PLATE, PILLION STEP SIDE Price: Call Us
20 90101MJ6710 BOLT, CAP, 8X9 Price: Call Us
21 90105MA6750 BOLT, SOCKET, 8X28 Price: Call Us
22 90302MJ1780 CAP, LOCK NUT Price: Call Us
23 90504MA6000 WASHER, 8.5X26 Price: Call Us
24 91455MA6750 CAP, SOCKET BOLT, 8MM Price: Call Us
25 92000060120A BOLT, HEX., 6X12 Price: Call Us
26 9405008080 NUT, FLANGE, 8MM Price: Call Us
27 9410108000 WASHER, PLAIN, 8MM Price: Call Us
28 9410208700 WASHER, PLAIN, 8MM Price: Call Us
29 9420116150 PIN, SPLIT, 1.6X15 Price: Call Us
30 957000804500 BOLT, FLANGE, 8X45 Price: Call Us
