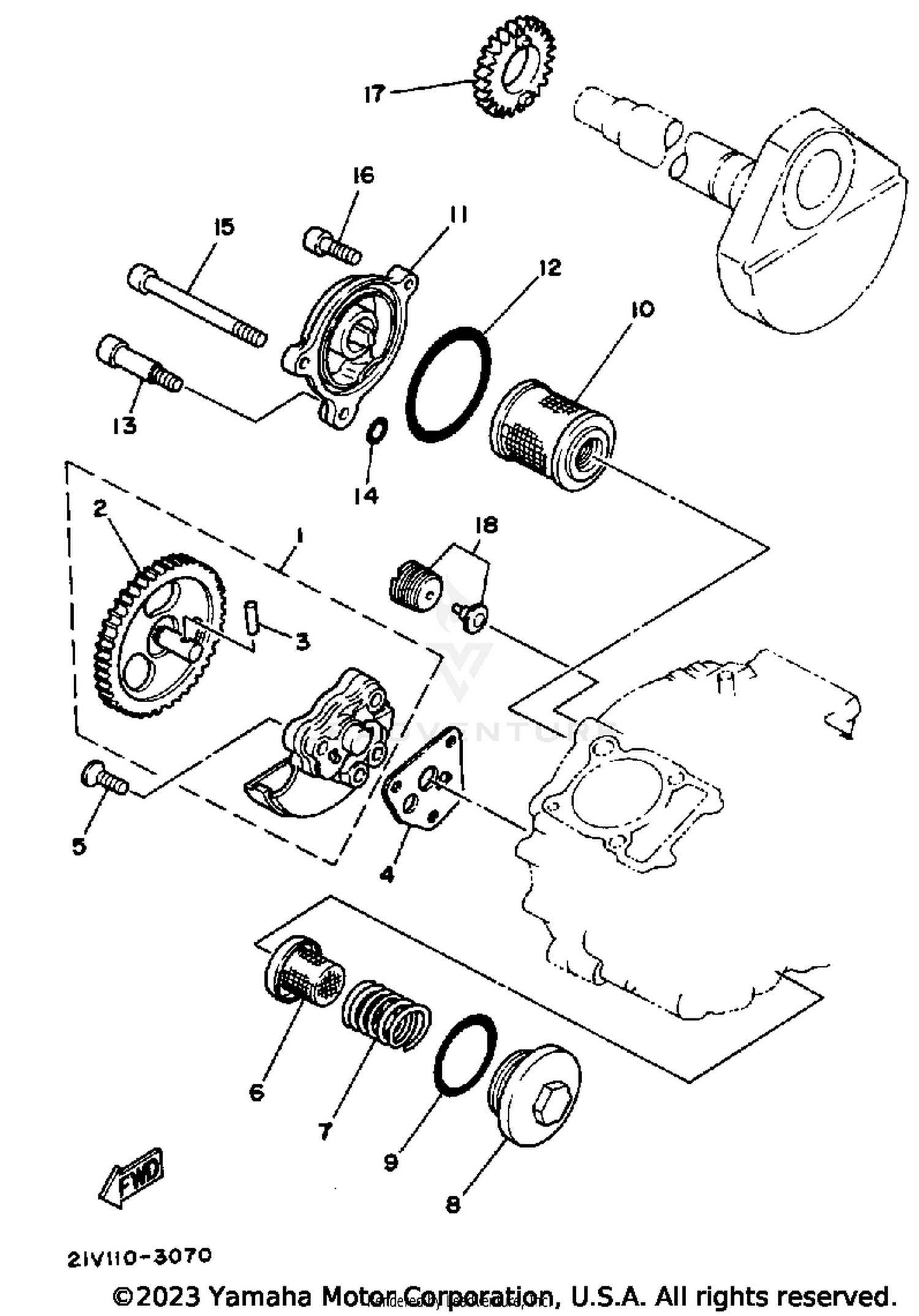

| Ref | Part Number | Description |
|---|
| 1 |
21V-13300-00-00 |
OIL PUMP ASSEMBLY Price: $221.99 |
| 2 |
21V-13326-00-00 |
GEAR, PUMP DRIVEN 2 (41T) Price: $52.99 |
| 3 |
93603-12030-00 |
PIN, PLUNGER Price: $2.80 |
| 4 |
3GD-13329-00-00 |
GASKET, PUMP COVER This part replaces 4BE-13329-00-00. Price: $8.49 |
| 5 |
98707-06030-00 |
SCREW, FLAT HEAD This part replaces 98701-06030-00. Price: $7.99 |
| 6 |
51Y-13411-00-00 |
STRAINER, OIL Price: $41.99 |
| 7 |
90501-18576-00 |
SPRING, COMPRESSION Price: $9.49 |
| 8 |
5H0-15351-00-00 |
PLUG, DRAIN Price: $34.99 |
| 9 |
93210-347A1-00 |
O-RING This part replaces 93210-35389-00. Price: $8.49 |
| 10 |
5H0-13440-09-00 |
ELEMENT ASSY, OIL CLEANER This part replaces 5H0-13440-00-00. Price: $11.49 |
| 11 |
15A-13447-01-00 |
COVER, OIL ELEMENT This part replaces 15A-13447-00-00. Price: $32.99 |
| 12 |
93210-54175-00 |
O-RING Price: $13.99 |
| 13 |
90109-06419-00 |
BOLT Price: $9.49 |
| 14 |
93210-07135-00 |
O-RING Price: $6.99 |
| 15 |
91317-06020-00 |
BOLT This part replaces 91316-06020-00. Price: $2.75 |
| 16 |
91317-06115-00 |
BOLT This part replaces 91316-06115-00. Price: $17.49 |
| 17 |
21V-13324-00-00 |
GEAR, PUMP DRIVE Price: $25.99 |
