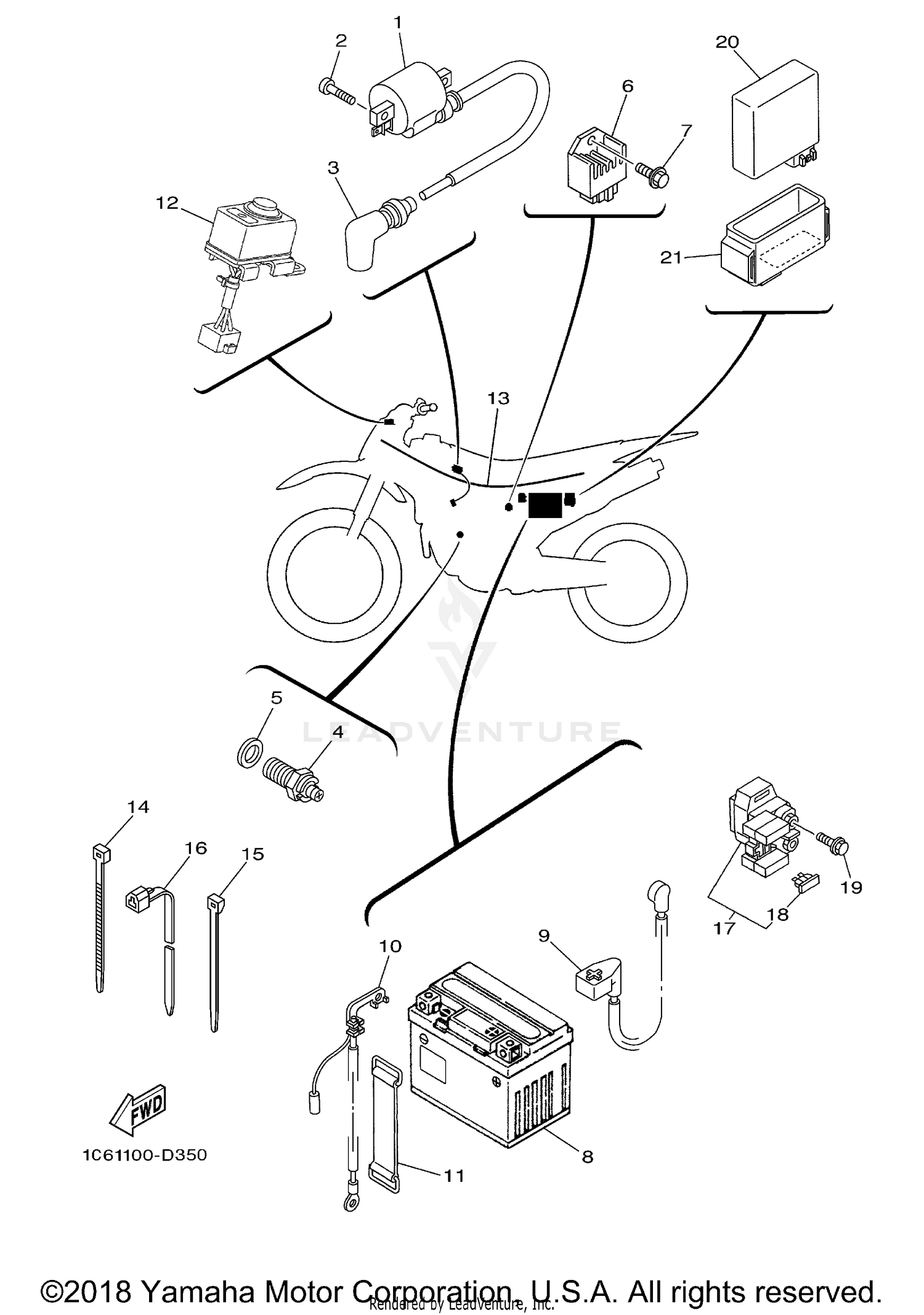

ELECTRICAL 1
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3KJ-82310-14-00 | IGNITION COIL ASSY This part replaces 3NS-82310-10-00. Price: $41.99 |
| 2 | 95817-06016-00 | BOLT, FLANGE This part replaces 9502M-06016-00. Price: $1.95 |
| 3 | 3NS-82370-00-00 | PLUG CAP ASSY Price: $41.99 |
| 4 | 4GY-82540-10-00 | NEUTRAL SWITCH ASSY Price: $41.99 |
| 5 | 90430-10148-00 | GASKET Price: $5.99 |
| 6 | 4CK-81960-01-00 | RECTIFIER & REGULATOR ASSY This part replaces 5HH-H1960-00-00. Price: $217.99 |
| 7 | 95027-06012-00 | BOLT, FLANGE This part replaces 9502M-06012-00. Price: $4.20 |
| 8 | YTX-5LBS0-00-00 | YTX5LBS YUASA BATTE This part replaces 1C6-H2100-11-00. Price: $76.99 |
| 9 | 1C6-H2115-00-00 | WIRE, PLUS LEAD Price: $25.99 |
| 10 | 1C6-H2116-00-00 | WIRE, MINUS LEAD Price: $17.49 |
| 11 | 1C6-H2131-00-00 | BAND, BATTERY Price: $10.49 |
| 12 | 1C6-82510-01-00 | MAIN SWITCH ASSY Price: $122.99 |
| 13 | 1C6-H2590-00-00 | WIRE HARNESS ASSY Price: $168.99 |
| 14 | 90464-70800-00 | CLAMP Price: $0.85 |
| 15 | 1UA-82591-00-00 | BAND This part replaces 90465-13152-00. Price: $5.49 |
| 17 | 5HH-81940-02-00 | STARTER RELAY ASSY (RC19-028) Price: $137.99 |
| 18 | 42X-82151-00-00 | FUSE (10A-BL) Price: $4.70 |
| 19 | 95027-06008-00 | BOLT, FLANGE This part replaces 9502M-06008-00. Price: $7.99 |
| 20 | 1C6-H5540-00-00 | C.D.I. UNIT ASSY Price: $516.99 |
