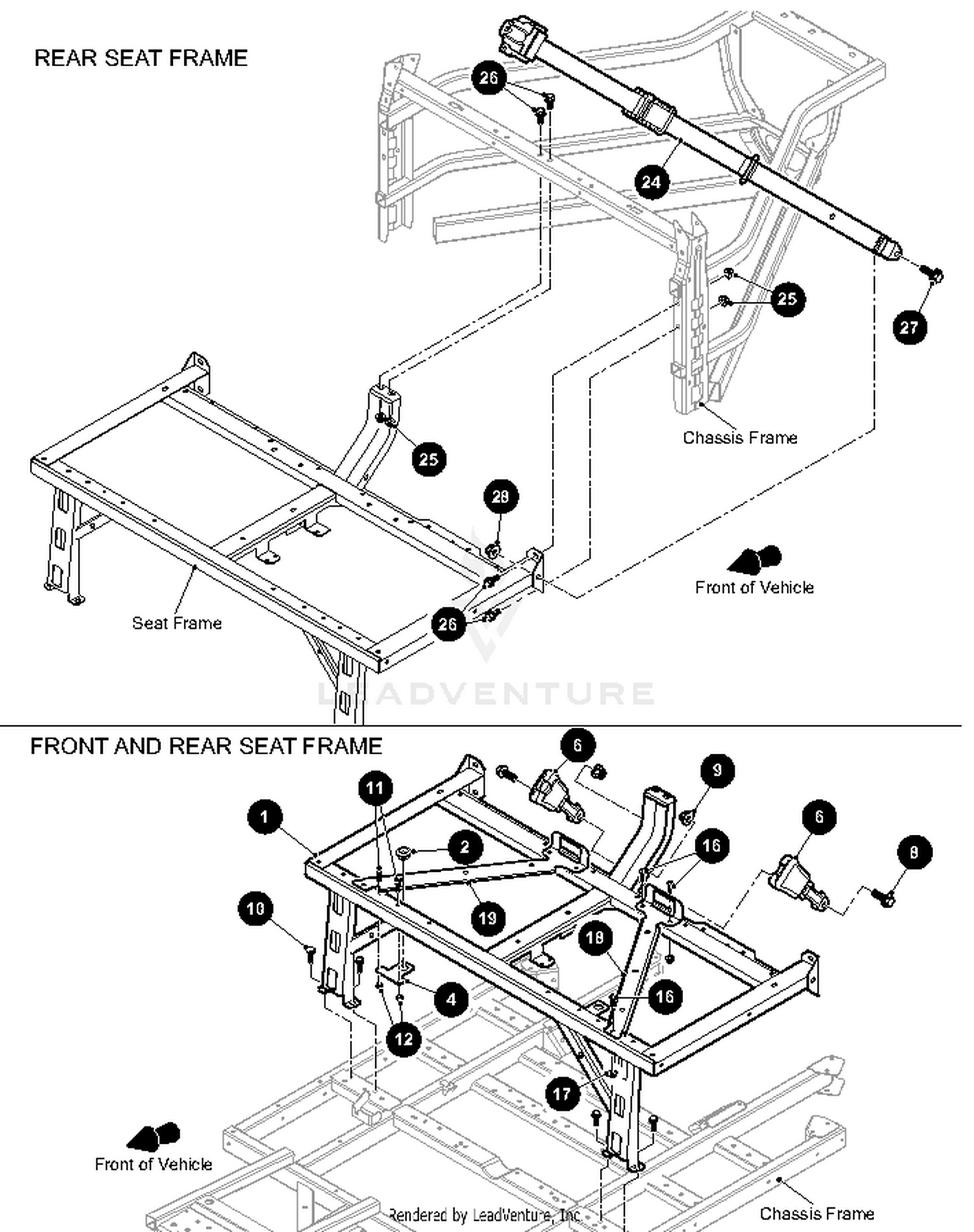

| Ref | Part Number | Description |
|---|
| 1 |
643943 |
OBS - SEAT FRAME-WLD Price: $247.95 |
| 2 |
638668 |
SEAT RETENTION GROMMET Price: $5.99 |
| 4 |
638697 |
BRACKET,SEAT RETENTION Price: $9.74 |
| 6 |
648412 |
SVC - SEATBELT LATCH W/O CONNECTOR Price: $46.95 |
| 8 |
649013 |
BOLT,HXFL,M12X1.75X30 Price: $1.88 |
| 9 |
648198 |
NUT, PLS, LK, M12-1.75 Price: $2.03 |
| 10 |
640723 |
SCREW,SELF TAPPING,M8X1.25X20 Price: $1.25 |
| 11 |
612859 |
PAN HEAD TORX SCREW, M5-0.8 X 12 Not Available Price: |
| 12 |
610683 |
NUT,LK-M5-0.8 Price: $1.63 |
| 16 |
646371 |
BOLT,PHD,MAT PT,M8-1.25 X 20 Price: $1.58 |
| 17 |
645956 |
FLANGED HEX NUT, M8-1.25 Price: $0.99 |
| 18 |
645357G01 |
OBS - SUPPORT CROSSMEMBER,SEAT FRAME,LH Not Available Price: |
| 19 |
645357G02 |
OBS - SUPPORT CROSSMEMBER,SEAT FRAME,RH Not Available Price: |
| 24 |
649870 |
SVC-RETRACTOR, ANTICINCH, ST BELT,112 IN Price: $142.99 |
| 25 |
600525 |
LOCK NUT, M10-1.5 Price: $1.99 |
| 26 |
603799 |
FLANGED HEX HEAD BOLT, M10-1.5X25 Price: $1.99 |
| 27 |
649013 |
BOLT,HXFL,M12X1.75X30 Price: $1.88 |
