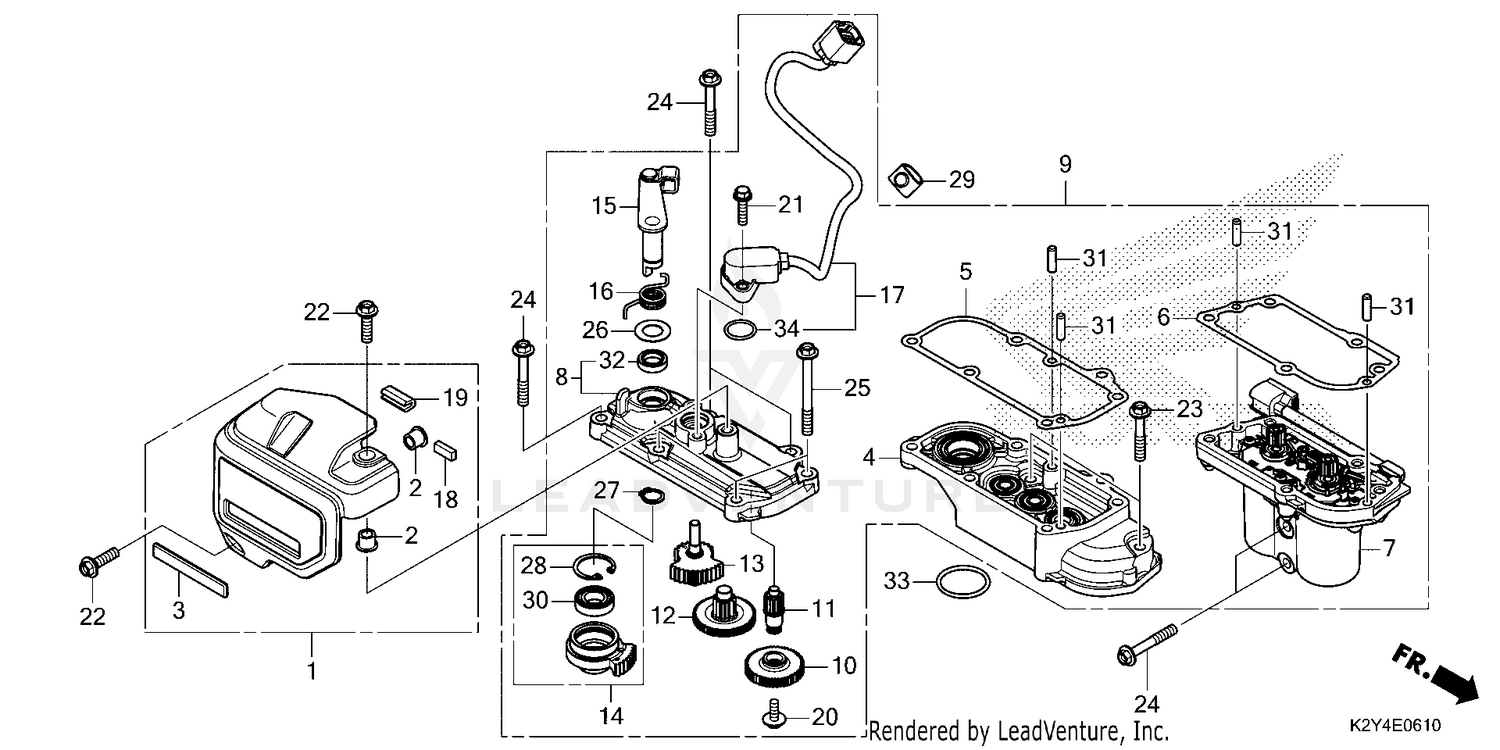

| Ref | Part Number | Description |
|---|
| 1 |
11370-K2Y-J70 |
COVER, CLUTCH ARM Price: $41.45 |
| 2 |
11372-K2Y-J70 |
COLLAR Price: $1.93 |
| 3 |
11378-MKY-E80 |
PLATE, EMBLEM Price: $25.66 |
| 4 |
11410-MKY-E80 |
CASE Price: $70.51 |
| 5 |
11412-K2Y-J71 |
GASKET Price: $6.78 |
| 6 |
11413-K2Y-J71 |
GASKET Price: $1.27 |
| 7 |
11420-K2Y-J71 |
CASE ASSY. Price: $229.33 |
| 8 |
11430-MKY-E80 |
CVR, CLUTCH ACTUATOR Price: $94.96 |
| 9 |
22200-K2Y-J70 |
ACTUATOR, CLUTCH Price: $785.22 |
| 10 |
22661-MKY-E81 |
GEAR A (51T) Price: $34.47 |
| 11 |
22662-MKY-E80 |
SHAFT A (17T) Price: $45.54 |
| 12 |
22671-MKY-E81 |
GEAR B (62T/11T) Price: $47.14 |
| 13 |
22680-MKY-E81 |
GEAR C (12T/9T) Price: $62.73 |
| 14 |
22690-MKY-E80 |
GEAR ASSY. D (8T) Price: $64.04 |
| 15 |
22810-K2Y-J70 |
LEVER, CLUTCH Price: $30.09 |
| 16 |
22816-K2Y-J70 |
SPRING, CLUTCH LEVER Price: $1.53 |
| 17 |
38800-K2Y-J71 |
SENSOR (110DEG) Price: $264.96 |
| 18 |
53209-K0G-900 |
RUBBER, HANDLE COVER Price: $1.36 |
| 19 |
77212-MFJ-D00 |
PROTECTOR, RUBBER Price: $1.98 |
| 20 |
90002-MKY-E80 |
BOLT-WASHER (5X14) Price: $1.09 |
| 21 |
90003-MKY-E80 |
BOLT, FLANGE (5X20) Price: $1.02 |
| 22 |
90026-GHB-670 |
BOLT, FLANGE (6X22) Price: $2.76 |
| 23 |
90026-GHB-720 |
BOLT, FLANGE (6X35) Price: $2.35 |
| 24 |
90026-GHB-740 |
BOLT, FLANGE (6X40) Price: $2.73 |
| 25 |
90026-GHB-780 |
BOLT, FLANGE (6X60) Price: $2.20 |
| 26 |
90525-MBZ-610 |
WASHER Price: $2.73 |
| 27 |
90601-MKY-E81 |
CIRCLIP (12MM) Price: $1.11 |
| 28 |
90602-MKY-E81 |
CIRCLIP (24MM) Price: $1.98 |
| 29 |
90652-MKH-D20 |
BAND, RUBBER (50) Price: $3.35 |
| 30 |
91002-MKY-E81 |
BEARING (6901ZZ) Price: $4.78 |
| 31 |
91101-MKY-E81 |
ROLLER (5X17.8) Price: $1.11 |
| 32 |
91204-MKY-E81 |
OIL SEAL (12X18X5) Price: $1.02 |
| 33 |
91301-MKY-E81 |
O-RING (28X2.6) Price: $1.60 |
