| Ref | Part Number | Description |
|---|
| 1 |
8KJ-11102-00-00 |

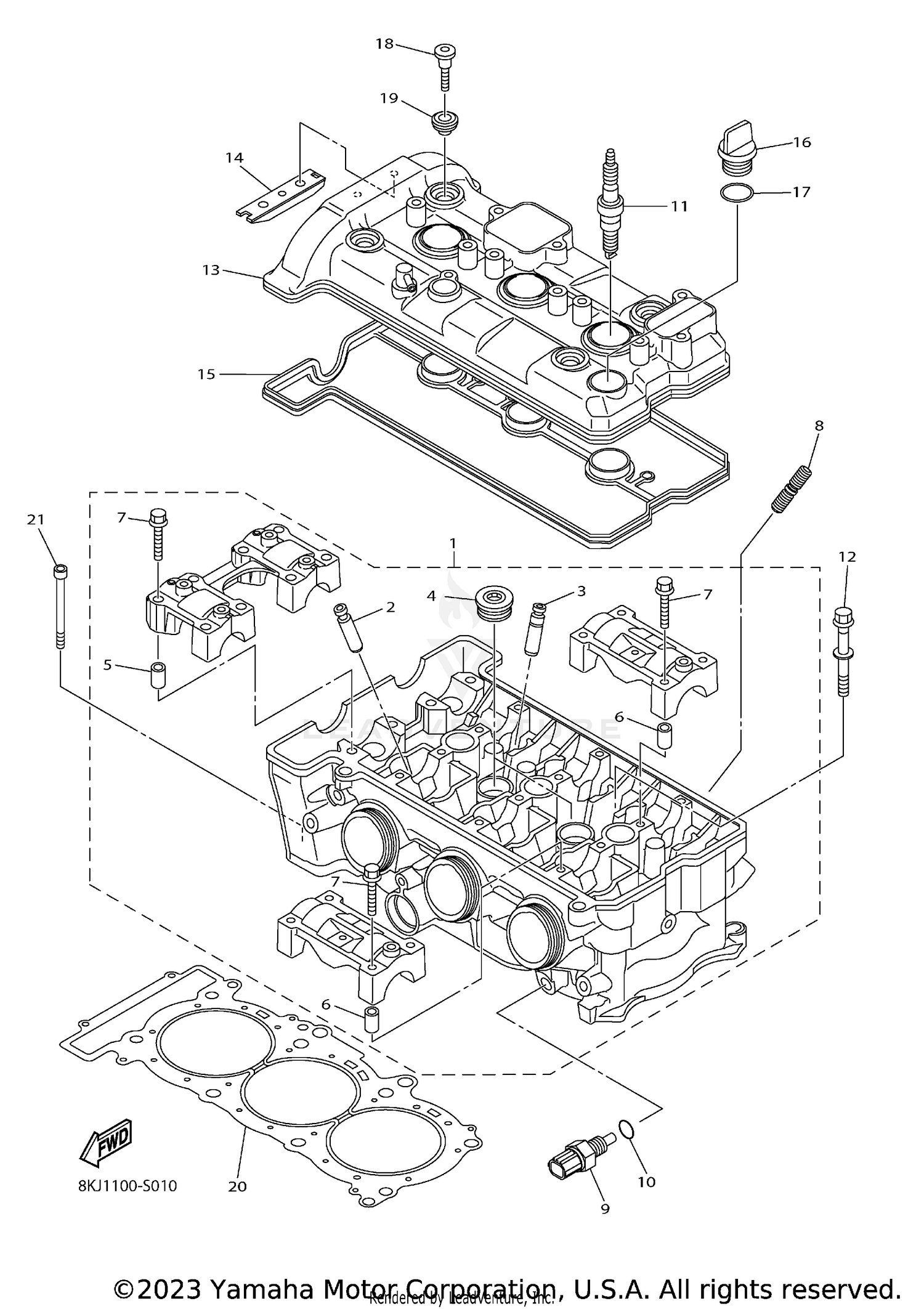

CYLINDER HEAD ASSY Price: $1,395.99 |
| 2 |
2C0-11133-11-00 |
GUIDE, VALVE 1 Price: $69.99 |
| 3 |
8HF-11134-10-00 |
GUIDE, VALVE 2 Price: $107.99 |
| 4 |
90340-27129-00 |
PLUG, STRAIGHT SCREW Price: $5.60 |
| 5 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 6 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 7 |
90105-06027-00 |
BOLT, FLANGE Price: $8.49 |
| 8 |
90116-09011-00 |
BOLT, STUD Price: $6.49 |
| 9 |
52B-H3591-00-00 |
THERMO UNIT This part replaces 4P9-83591-00-00. Price: $37.99 |
| 10 |
90430-10004-00 |
GASKET Price: $7.49 |
| 11 |
CR8-E0000-00-00 |
PLUG, SPARK (NGK CR8E) Price: $10.49 |
| 12 |
90119-10059-00 |
BOLT, WITH WASHER Price: $19.49 |
| 13 |
8KJ-11191-00-00 |
COVER, CYLINDER HEAD 1 Price: $114.99 |
| 14 |
5BE-12241-01-00 |
GUIDE, STOPPER 2 Price: $32.99 |
| 15 |
2HC-11193-00-00 |
GASKET, HEAD COVER 1 Price: $28.99 |
| 16 |
3Y1-15363-10-00 |
PLUG, OIL Price: $19.99 |
| 17 |
93210-19123-00 |
O-RING Price: $8.99 |
| 18 |
90109-066F0-00 |
BOLT Price: $9.49 |
| 19 |
5VY-1111G-00-00 |
RUBBER, MOUNT 1 Price: $13.49 |
| 20 |
8KJ-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $74.99 |
