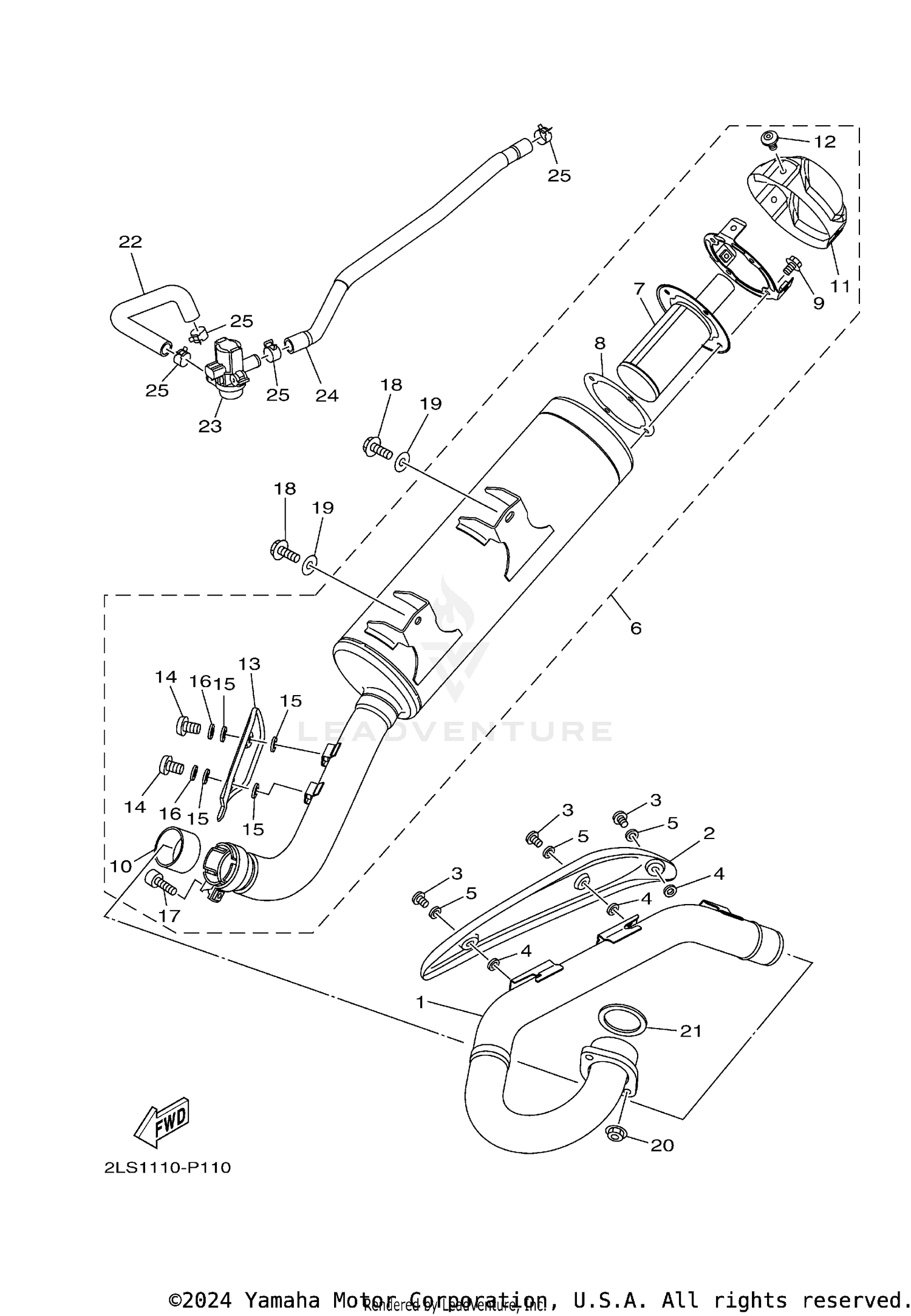

| Ref | Part Number | Description |
|---|
| 1 |
2LS-E4611-00-00 |
PIPE, EXHAUST 1 Price: $163.99 |
| 2 |
2LS-E4628-00-00 |
PROTECTOR, EXHAUST PIPE Price: $65.99 |
| 3 |
98980-06010-00 |
SCREW, BIND Price: $10.49 |
| 4 |
90201-05019-00 |
WASHER, PLATE Price: $4.75 |
| 5 |
90201-05037-00 |
WASHER, PLATE Price: $5.49 |
| 6 |
2LS-E4710-01-00 |
MUFFLER ASSY 1 Price: $339.99 |
| 7 |
2LS-E4780-00-00 |
SPARK ARRESTER ASSY Price: $80.99 |
| 8 |
2BG-E4755-00-00 |
GASKET, SILENCER Price: $23.99 |
| 9 |
95022-06012-00 |
BOLT, FLANGE Price: $3.55 |
| 10 |
2LS-E4714-00-00 |
GASKET, MUFFLER Price: $70.99 |
| 11 |
1TD-E4787-00-00 |
CAP, SILENCER Price: $77.99 |
| 12 |
90149-06298-00 |
SCREW Price: $6.49 |
| 13 |
2LS-E4728-00-00 |
PROTECTOR, MUFFLER 2 Price: $26.99 |
| 14 |
98980-06010-00 |
SCREW, BIND This part replaces 98902-06010-00. Price: $10.49 |
| 15 |
90201-05017-00 |
WASHER, PLATE Price: $9.49 |
| 16 |
92990-06200-00 |
WASHER, PLAIN This part replaces 92902-06200-00. Price: $1.00 |
| 17 |
91314-08035-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.70 |
| 18 |
90105-08142-00 |
BOLT, FLANGE Price: $6.49 |
| 19 |
90201-08048-00 |
WASHER, PLATE Price: $6.49 |
| 20 |
95702-08500-00 |
NUT, WITH WASHER Price: $1.05 |
| 21 |
3EG-14613-00-00 |
GASKET, EXHAUST PIPE Price: $25.99 |
| 22 |
2LS-E4881-00-00 |
HOSE, BEND 1 Price: $4.90 |
| 23 |
1TD-14840-00-00 |
AIR CUT VALVE ASSY Price: $95.99 |
| 24 |
2LS-E4882-00-00 |
HOSE, BEND 2 Price: $9.49 |
