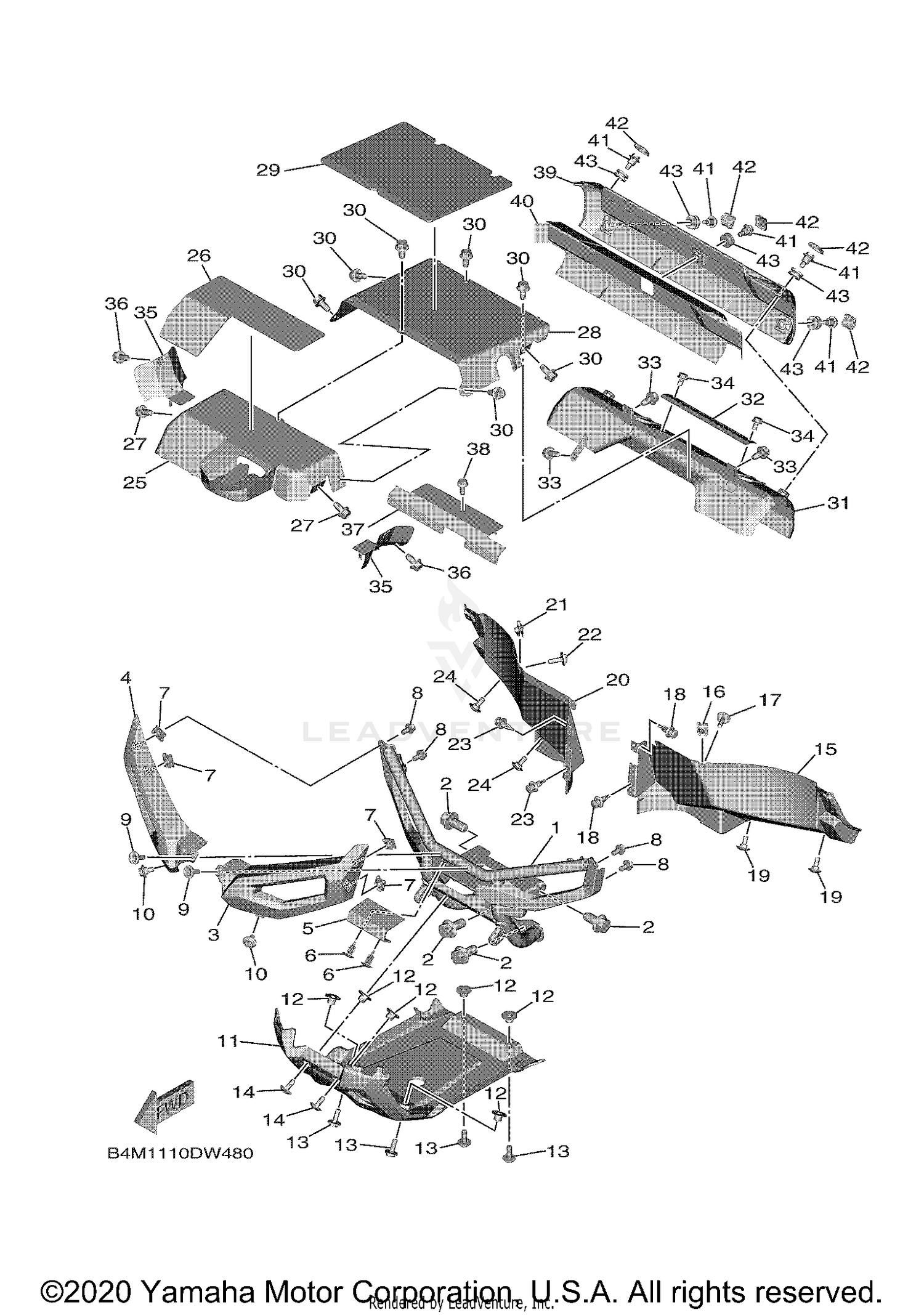

| Ref | Part Number | Description |
|---|
| 1 |
B4J-F845N-02-00 |
BAR, CARRY FRONT This part replaces B4J-F845N-00-00. Price: $319.99 |
| 2 |
95812-12025-00 |
BOLT, FLANGE Price: $10.49 |
| 3 |
B4J-F842M-00-00 |
COVER 1 Price: $20.99 |
| 4 |
B4J-F842N-00-00 |
COVER 2 Price: $21.99 |
| 5 |
B4J-F286H-10-00 |
COVER, FRONT This part replaces B4J-F286H-01-00. Price: $5.49 |
| 6 |
90269-05055-00 |
RIVET Price: $9.49 |
| 7 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 8 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95812-06012-00. Price: $1.95 |
| 9 |
JW1-K6179-01-00 |
BOLT, SPECIAL 1 This part replaces 90119-06868-00. Price: $1.75 |
| 10 |
90109-06202-00 |
BOLT Price: $3.10 |
| 11 |
B4J-F8385-01-00 |
COVER, UNDER Price: $74.99 |
| 12 |
90387-071E0-00 |
COLLAR Price: $8.49 |
| 13 |
JW1-K6179-01-00 |
BOLT, SPECIAL 1 This part replaces 90119-06868-00. Price: $1.75 |
| 14 |
90110-06090-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 15 |
BG4-F2361-01-00 |
GUARD 1 Price: $20.99 |
| 16 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 17 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 18 |
90269-07805-00 |
RIVET Price: $1.75 |
| 19 |
90109-06334-00 |
BOLT Price: $2.80 |
| 20 |
BG4-F2362-01-00 |
GUARD 2 Price: $29.99 |
| 21 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 22 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 23 |
90269-07805-00 |
RIVET Price: $1.75 |
| 24 |
90109-06334-00 |
BOLT Price: $2.80 |
| 25 |
B4J-F2898-04-00 |
INSULATOR, HEAT This part replaces B4J-F2898-03-00. Price: $118.99 |
| 26 |
B4J-F8415-00-00 |
DAMPER 1 Price: $36.99 |
| 27 |
90105-08867-00 |
BOLT, FLANGE Price: $1.95 |
| 28 |
B4J-F3892-02-00 |
SHIELD, HEAT This part replaces B4J-F3892-00-00. Price: $53.99 |
| 29 |
B4J-F8425-00-00 |
DAMPER 3 Price: $47.99 |
| 30 |
90105-08867-00 |
BOLT, FLANGE Price: $1.95 |
| 31 |
B4J-F2891-01-00 |
INSULATOR, MOUNTIN Price: $61.99 |
| 32 |
BG4-F2894-00-00 |
INSULATOR, MOUNTING 2 Price: $4.10 |
| 33 |
90105-08867-00 |
BOLT, FLANGE Price: $1.95 |
| 34 |
95D32-06010-00 |
BOLT, FLANGE DEEP RECESS Price: $0.80 |
| 35 |
BAR-F2825-00-00 |
PROTECTOR 1 Price: $10.49 |
| 36 |
90105-08867-00 |
BOLT, FLANGE Price: $1.95 |
| 37 |
B4J-F2825-03-00 |
PROTECTOR 1 This part replaces B4J-F2825-01-00. Price: $9.49 |
| 38 |
90105-06831-00 |
BOLT, FLANGE Price: $1.55 |
| 39 |
B4J-F194H-03-00 |
PROTECTOR, MUFFLER This part replaces B4J-F194H-02-00. Price: $70.99 |
| 40 |
B4J-HA7E0-00-00 |
SHEET, INSULATOR Price: $55.99 |
| 41 |
90109-06214-00 |
BOLT Price: $8.49 |
| 42 |
2MB-F143A-00-00 |
CAP Price: $1.95 |
