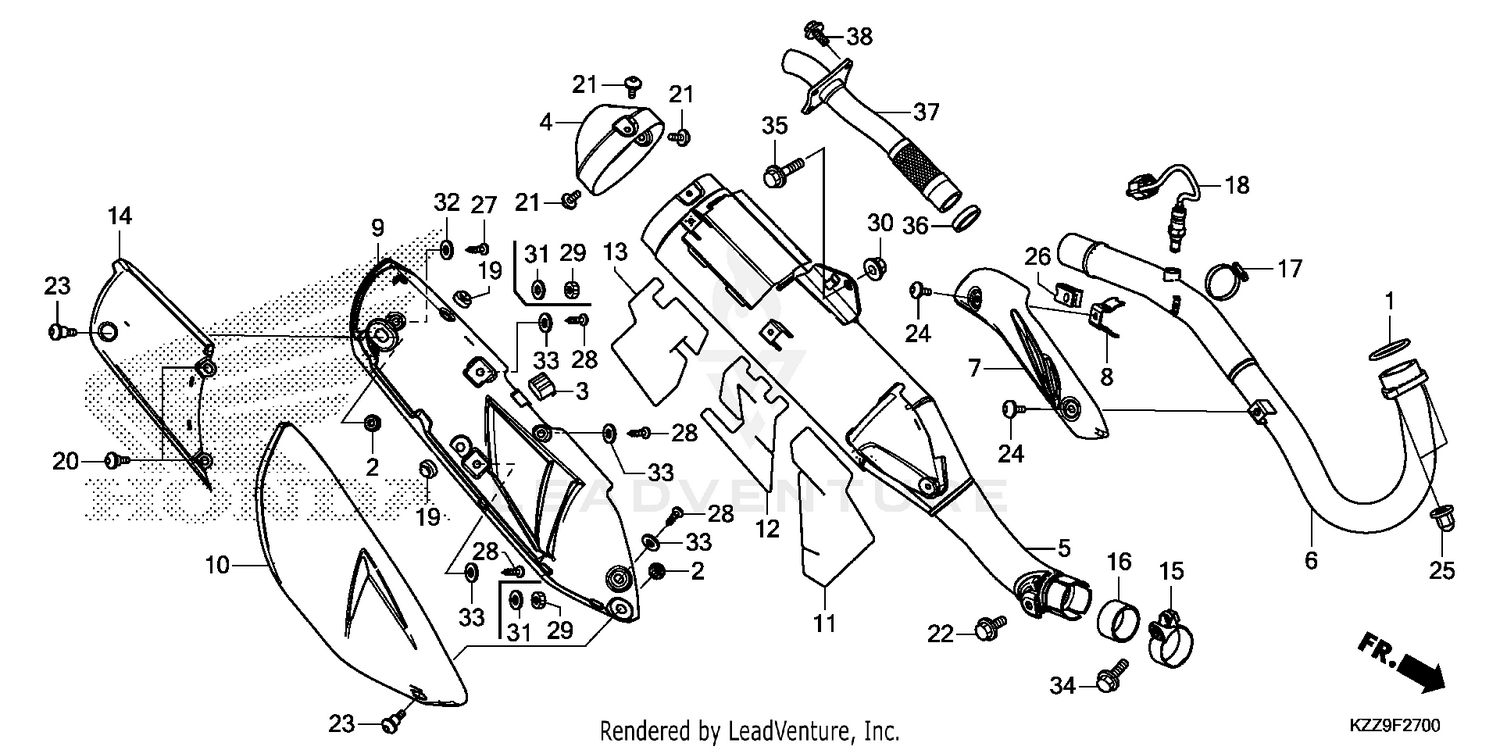

| Ref | Part Number | Description |
|---|
| 1 |
18291-MEB-670 |
GASKET, EX. PIPE Price: $6.18 |
| 2 |
18293-KZZ-900 |
RUBBER, PROTECTOR GASKET Price: $1.64 |
| 3 |
18293-MN0-000 |
RUBBER, PROTECTOR Price: $2.44 |
| 4 |
18306-KZZ-900 |
CAP, TAIL Price: $32.24 |
| 5 |
18310-KZZ-J10 |
MUFFLER Price: $732.52 |
| 6 |
18320-KZZ-J00 |
PIPE, EX. Price: $109.93 |
| 7 |
18325-KZZ-900 |
PROTECTOR, EX. PIPE Price: $34.24 |
| 8 |
18327-KZZ-J00 |
STAY, EX. PIPE PROTECTOR Price: $19.05 |
| 9 |
18355-KZZ-J00 |
PROTECTOR, MUFFLER Price: $76.89 |
| 10 |
18360-KZZ-D20ZA |
COVER, FR. MUFFLER *NH196* (ROSS WHITE) Price: $65.31 |
| 11 |
18361-KZZ-J00 |
GUARD, HEAT (A) Price: $5.15 |
| 12 |
18362-KZZ-J00 |
GUARD, HEAT (B) Price: $6.87 |
| 13 |
18363-KZZ-J00 |
GUARD, HEAT (C) Price: $7.24 |
| 14 |
18365-KZZ-900 |
COVER, RR. MUFFLER Price: $13.49 |
| 15 |
18373-KYJ-900 |
BAND, MUFFLER Price: $14.29 |
| 16 |
18392-KYJ-901 |
GASKET, MUFFLER Price: $8.55 |
| 17 |
19509-MM5-003 |
CLAMP, R. RADIATOR HOSE Price: $16.45 |
| 18 |
36531-KZZ-J02 |
SENSOR, OXYGEN (NGK) Price: $100.47 |
| 19 |
83512-KZZ-900 |
RUBBER, MUFFLER PROTECTOR Price: $1.58 |
| 21 |
90114-KZZ-900 |
SCREW, SPECIAL (5X10) Price: $0.93 |
| 22 |
90118-KZZ-900 |
BOLT, FLANGE (8X16) Price: $1.65 |
| 23 |
90160-KZZ-900 |
BOLT, MUFFLER PROTECTOR (5MM) Price: $1.56 |
| 24 |
90170-KZZ-900 |
SCREW, PAN (6X10) Price: $1.13 |
| 25 |
90304-KPH-700 |
NUT, HEX. CAP (8MM) Price: $1.95 |
| 26 |
90344-964-003 |
NUT, CLIP (6MM) Price: $4.84 |
| 27 |
93913-142J0 |
SCREW, TAPPING (4X12) Price: $2.10 |
| 28 |
93913-142J0 |
SCREW, TAPPING (4X12) Price: $2.10 |
| 30 |
94050-08000 |
NUT, FLANGE (8MM) NUT, FLANGE (10MM) Price: $0.98 |
| 32 |
94103-04000 |
WASHER, PLAIN (4MM) Price: $0.82 |
| 33 |
94103-04000 |
WASHER, PLAIN (4MM) Price: $0.82 |
| 34 |
95701-08038-02 |
BOLT, FLANGE (8X38) Price: $5.33 |
| 35 |
96300-08040-00 |
BOLT, FLANGE (8X40) Price: $2.44 |
| 36 |
18291-KR1-680 |
GASKET A, EX. PIPE Price: $10.53 |
| 37 |
18317-KZZ-J10 |
ARRESTER, SPARK Price: $73.65 |
| 38 |
96001-06010-07 |
BOLT, FLANGE (6X10) This part replaces 90101-KCE-000. Price: $1.70 |
