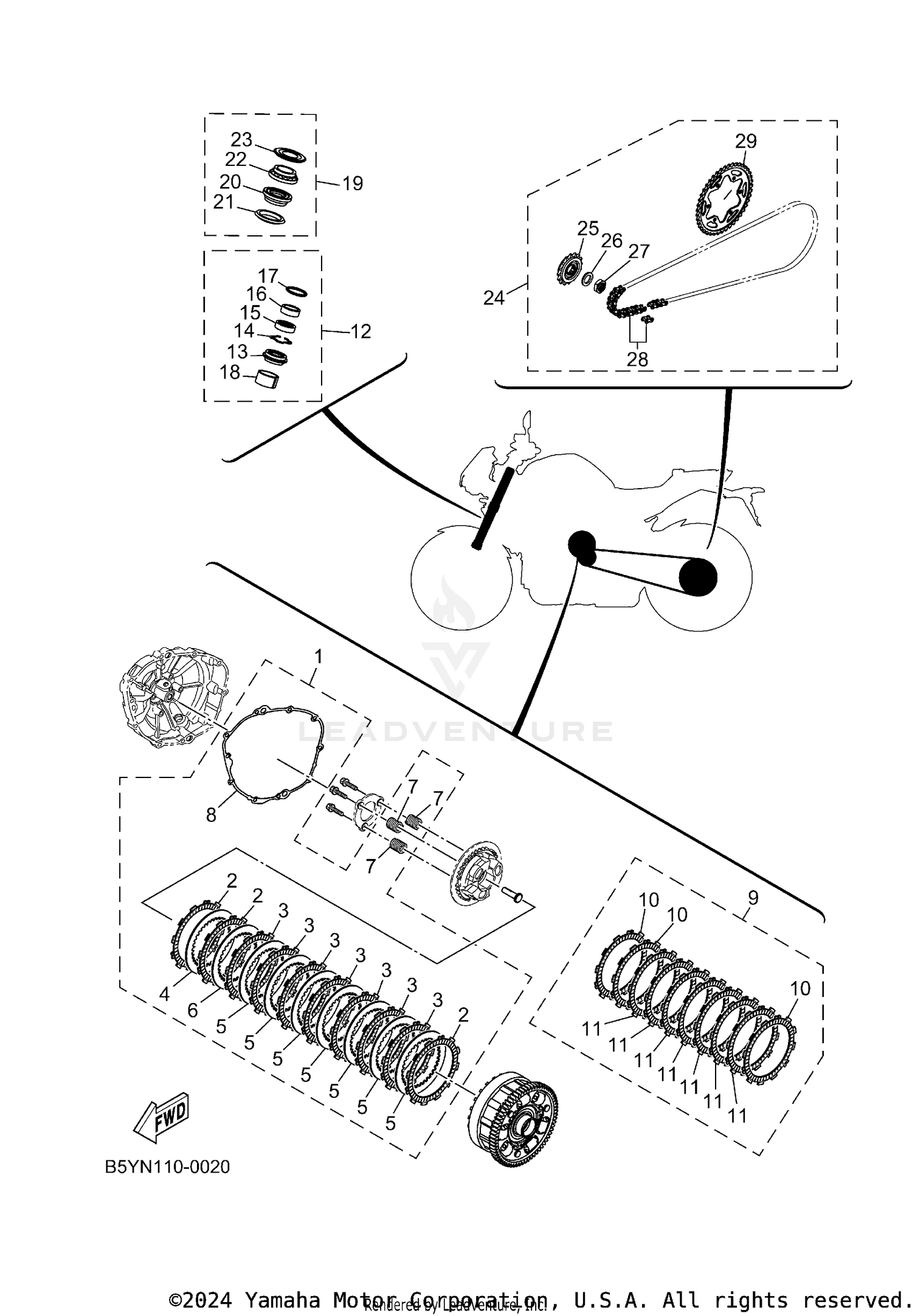

| Ref | Part Number | Description |
|---|
| 2 |
2CR-16330-00-00 |
PLATE, FRICTION 2 Price: $33.99 |
| 3 |
B5Y-16321-00-00 |
PLATE, FRICTION Price: $22.99 |
| 7 |
B5Y-16173-00-00 |
SPRING, COMPRESSION Price: $10.49 |
| 8 |
2CR-15461-00-00 |
GASKET, CRANKCASE COVER 2 Price: $26.99 |
| 10 |
2CR-16330-00-00 |
PLATE, FRICTION 2 Price: $33.99 |
| 11 |
B5Y-16321-00-00 |
PLATE, FRICTION Price: $22.99 |
| 13 |
4PU-23144-00-00 |
SEAL, DUST Price: $26.99 |
| 15 |
4PU-23145-01-00 |
OIL SEAL Price: $28.99 |
| 16 |
2CR-23125-00-00 |
METAL, SLIDE 1 Price: $12.99 |
| 17 |
39P-23147-00-00 |
O-RING Price: $9.49 |
| 18 |
2CR-23171-00-00 |
PISTON, FRONT FORK Price: $30.99 |
| 20 |
93399-99957-00 |
BEARING Price: $76.99 |
| 21 |
3FV-23462-00-00 |
SEAL, STEERING Price: $26.99 |
| 22 |
93399-99932-00 |
BEARING Price: $69.99 |
| 23 |
4XV-23415-01-00 |
COVER, BALL RACE 1 Price: $26.99 |
| 25 |
2CR-17460-00-00 |
SPROCKET, DRIVE (16T) Price: $66.99 |
| 26 |
90208-22002-00 |
WASHER, CONICAL SPRING Price: $22.99 |
| 27 |
90179-22018-00 |
NUT Price: $31.99 |
| 28 |
94A40-12114-00 |
CHAIN (DID525HV3 114 Price: $340.99 |
