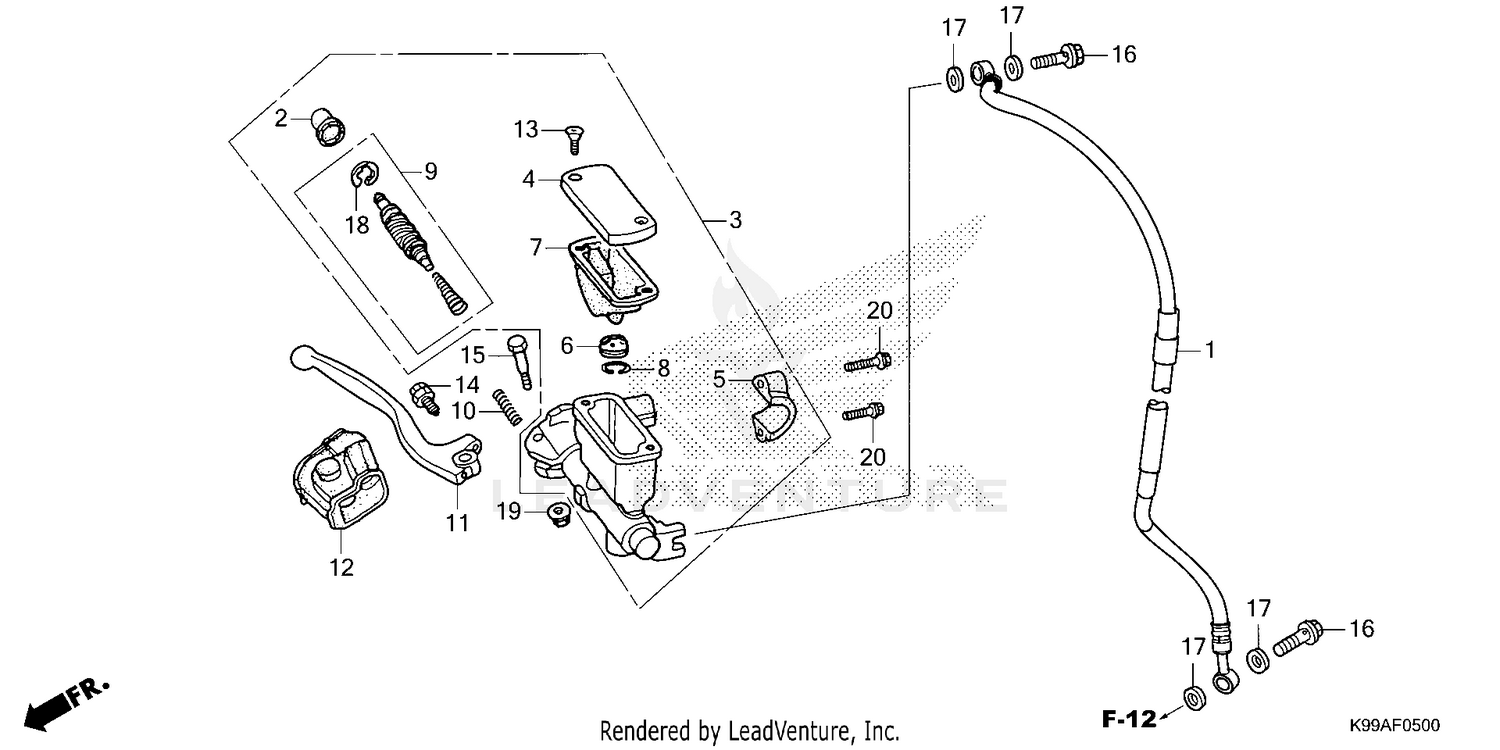

| Ref | Part Number | Description |
|---|
| 1 |
45125-K99-A71 |
HOSE, FR. BRAKE Price: $313.42 |
| 2 |
45504-KN5-006 |
BOOT Price: $12.93 |
| 3 |
45510-KPT-305 |
MASTER CYLINDER SET, FR. (COO) This part replaces 45510-KPS-901. Price: $167.87 |
| 4 |
45513-KCE-671 |
CAP, MASTER CYLINDER Price: $27.89 |
| 5 |
45517-GW0-751 |
HOLDER, MASTER CYLINDER Price: $15.04 |
| 6 |
45518-KA3-731 |
SEPARATOR Price: $14.76 |
| 7 |
45520-KA3-731 |
DIAPHRAGM Price: $16.44 |
| 8 |
45523-KA3-731 |
RING Price: $3.35 |
| 9 |
45530-KPS-901 |
MASTER CYLINDER SET Price: $127.69 |
| 10 |
53174-KN5-006 |
SPRING, BRAKE LEVER Price: $3.73 |
| 11 |
53175-KPT-305 |
LEVER, R. HANDLEBAR (COO) This part replaces 53175-KCE-670. Price: $22.29 |
| 12 |
53176-ML3-791 |
COVER, R. HANDLE LEVER Price: $8.53 |
| 13 |
93600-04012-0G |
SCREW, FLAT (4X12) This part replaces 90104-KRM-R80. Price: $0.95 |
| 14 |
90111-ML3-791 |
BOLT SET, ADJUSTER (NISSIN) Price: $8.29 |
| 15 |
90114-166-006 |
BOLT, HANDLE LEVER PIVOT Price: $8.16 |
| 16 |
90145-GAZ-981 |
BOLT, OIL (10X22) Price: Call Us |
| 17 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 18 |
90651-MA5-671 |
CIRCLIP Price: $3.35 |
| 19 |
94050-06000 |
NUT, FLANGE (6MM) Price: $0.68 |
