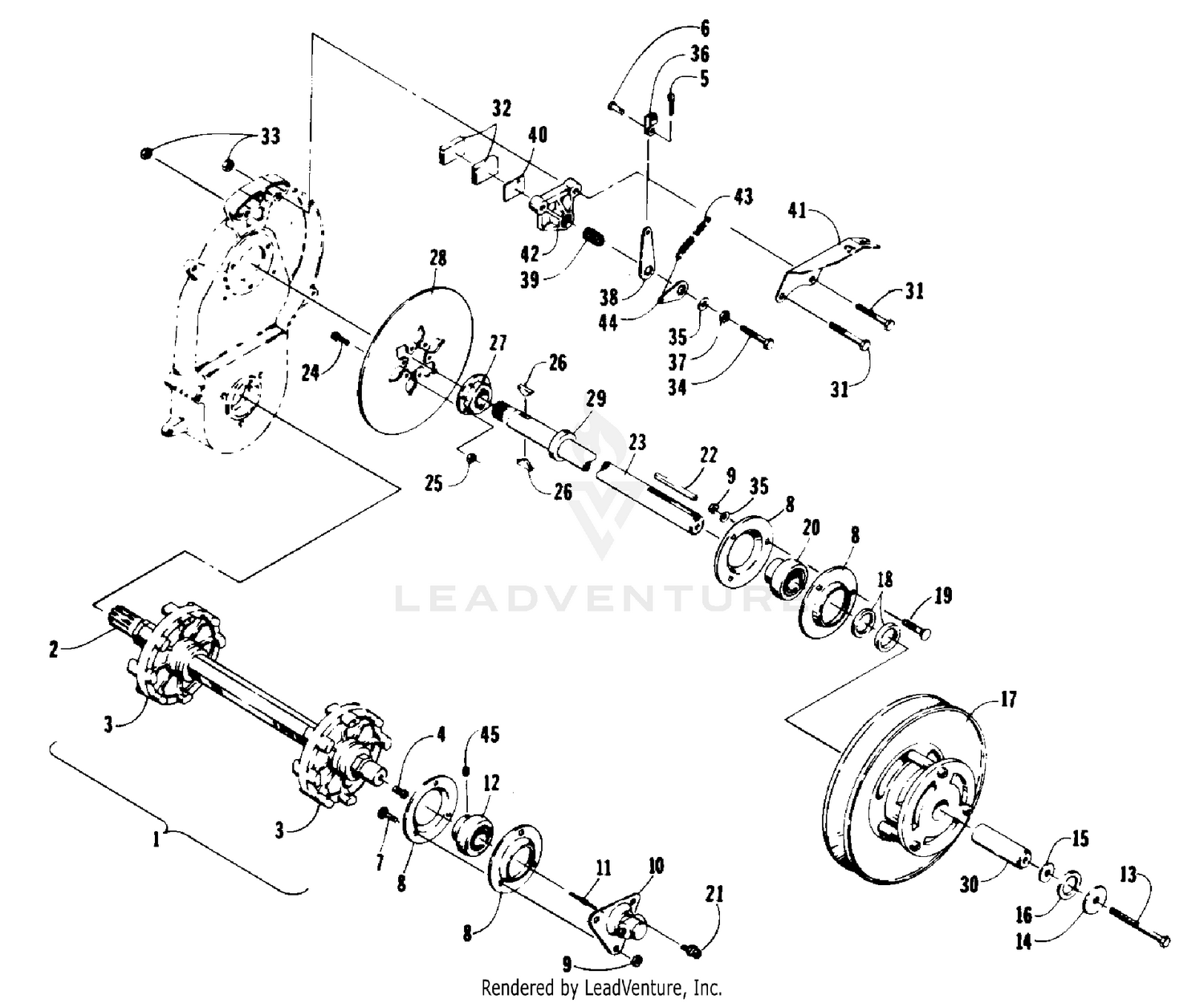

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES [58142]

Parts (43)

Ref	Part Number	Description
1	0728-008	Track Drive Ass'y (inc. 2-4) Price: $155.59
2	0228-045	SHAFT,DRIVE HEX Price: $136.95
3	0602-007	SPROCKET,DRIVE Price: $37.95
4	0120-247	Bushing, Drive Price: $5.50
5	0117-868	Pin, Cotter Price: $0.35
6	0423-109	PIN,CP26 Price: $0.29
7	8002-132	SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y Price: $1.20
8	0602-198	PLATE,FLANGE-BEARING (TRIANGLE) Price: $13.28
9	8040-426	Nut, Hex Lock - NYL 5/16-18 Z&Y Price: $1.79
12	1602-375	BEARING,1.00 W/COLLAR Price: $177.95
13	8012-142	Screw, Cap Price: $0.89
14	0123-019	Washer, Flat Price: $3.67
15	0123-063	Washer Price: $2.65
16	0123-578	Washer Price: $2.29
17	0726-021	Driven Clutch Assembly Price: $498.95
18	0623-118	Washer, Shim (.030 in.) Price: $6.57
18	0623-119	Washer, Shim (.075 in.) Price: $8.43
19	8011-130	Bolt, Carriage Price: $1.18
20	1602-290	BEARING,1 W/LOCK(LARGE RACE) Price: $85.95
22	0602-170	Key Price: $2.46
23	0602-038	SHAFT, DRIVEN Price: $177.95
24	0623-185	Screw, Socket Head Price: $9.95
25	0123-430	Nut, Lock Price: $2.91
26	0602-598	Key, Woodruff - Hardened Price: $19.35
27	0602-040	HUB,BRAKE Price: $99.95
28	0109-867	Disc, Brake Price: $52.95
29	0107-030	Collar, Lock (inc. 47) Price: $3.09
30	0148-231	Stub, Shaft Price: $9.95
31	8002-228	Screw, Cap Price: $3.75
32	0115-643	Puck, Brake Price: $22.99
33	8040-486	Nut, Lock Price: $1.20
34	0124-302	Screw, Cap-Lock Price: $1.20
35	8050-242	Washer Price: $2.26
36	0117-867	CLEVIS Price: $9.95
37	8042-426	NUT,5/16-18 HEX-REG-GR5 Z&Y Price: $0.71
38	0117-865	Lever, Actuator Price: $10.58
39	0117-864	Shaft, Actuator Price: $24.95
40	0117-871	Plate, Backing Price: $47.47
41	0117-790	Bracket, Brake Cable Price: $3.95
42	0219-282	Actuator, Brake Price: $85.95
43	0117-792	Spring Price: $1.68
44	0117-870	Arm, Brake Return Spring Price: $3.09
45	0623-216	Screw, Set (1/4-28 UNF) Price: $0.69
