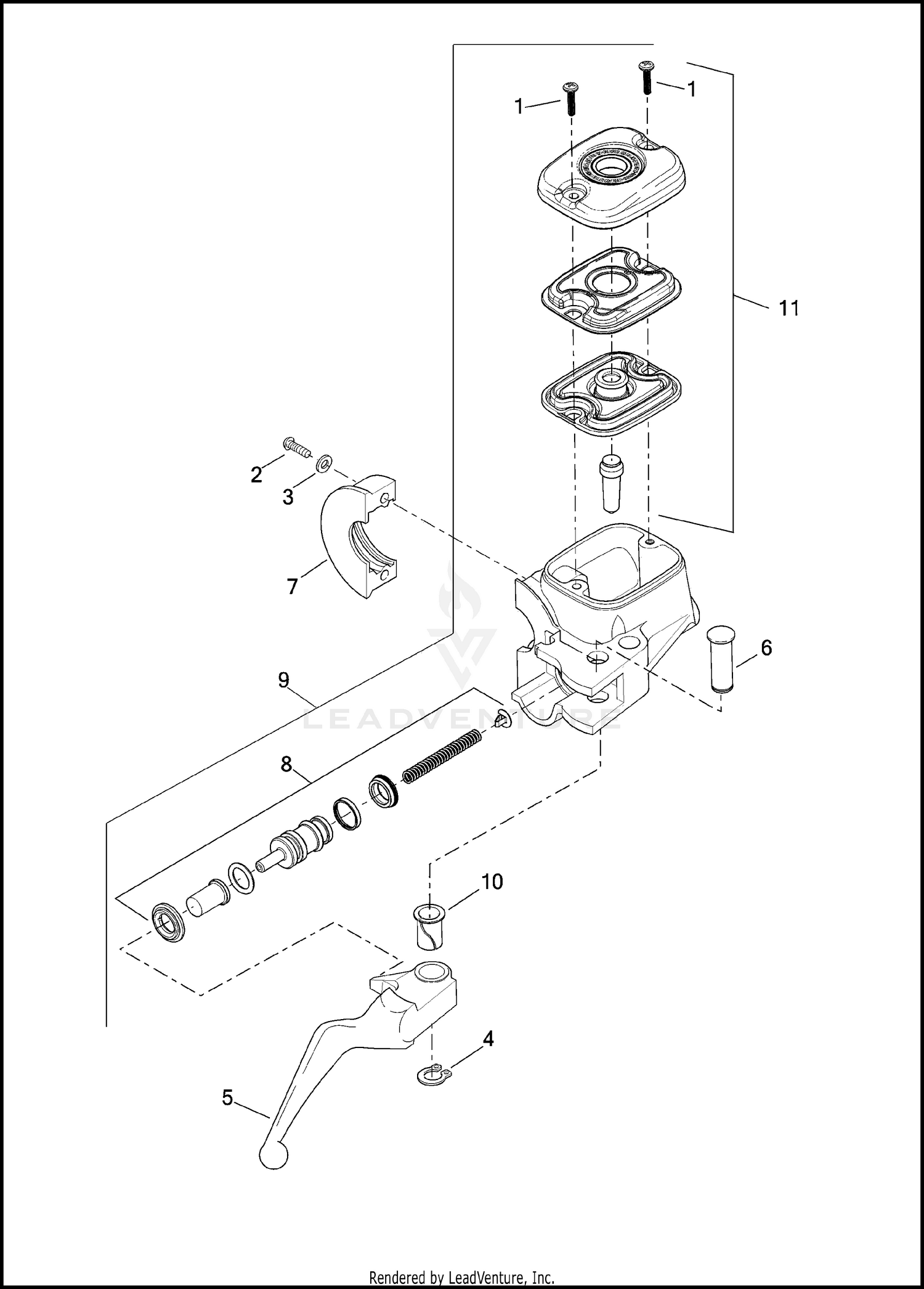

| Ref | Part Number | Description |
|---|
| 1 |
2590 |
SCREW NO. 8-32 X 5/8 PHILLIPS HEAD Price: $9.08 |
| 2 |
4132 |
SCREW 1/4-20 X 1-1/8 TORX BUTTON HEAD (GRADE 5) (BLACK) Price: $0.59 |
| 3 |
6101 |
WASHER 17/64 X 27/64 X 1/16 Price: $1.22 |
| 4 |
11143 |
RETAINING RING Price: $1.22 |
| 5 |
45016-08 |
HAND LEVER WITH 45423-96 (RIGHT) Price: $52.87 |
| 6 |
45032-82 |
PIVOT PIN Price: $12.17 |
| 7 |
45044-96A |
CLAMP HANDLEBAR CONTROL Price: $20.52 |
| 8 |
45072-96E |
PISTON SET,BRK MA CYL,PISTON SERVICE KIT This part replaces 45072-96D. Price: $52.56 |
| 9 |
45170-08F |
BRAKE MA CYL ASSY,FR,DUAL,BLACK,DOT 4 This part replaces 45170-08D. Price: $269.14 |
| 10 |
45423-96 |
BUSHING LEVER PIVOT Price: $7.49 |
