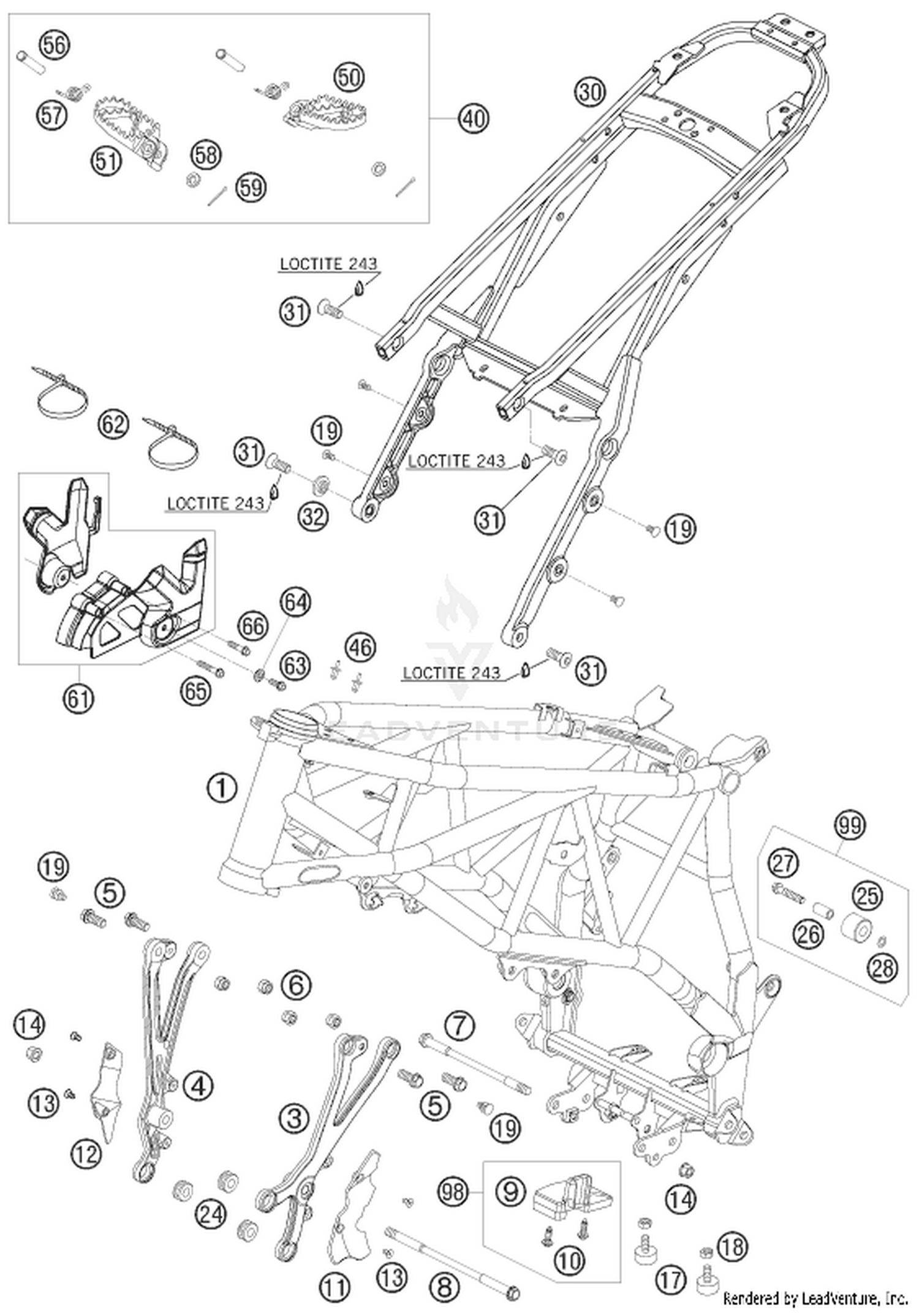

| Ref | Part Number | Description |
|---|
| 1 |
6300300100004 |
FRAME ''FE06'' 950 SE Not Available Price: |
| 3 |
62503005000 |
ENGINE SUPPORT LEFT 05 Not Available Price: |
| 4 |
62503006000 |
ENGINE SUPPORT RIGHT 05 Price: Call Us |
| 5 |
0015100243 |
HH COLLAR SCREW M10X24 WS=13 Price: Call Us |
| 6 |
54310086100 |
SELF LOCKING NUT M10 CU WS=14 Price: Call Us |
| 7 |
60003013000 |
ENGINE BRAC. SCREW M10X172 03 Price: Call Us |
| 8 |
60003014000 |
ENGINE BRAC. SCREW M10X206 03 Price: Call Us |
| 9 |
60004076100 |
CHAIN SLIDING BLOCK 05 Price: Call Us |
| 10 |
0017060206 |
SCREW F. PLASTIC K60X20AL SW6 This part replaces 0017060204. Price: Call Us |
| 11 |
62503005050 |
COVER ENGINE SUPPORT LEFT 05 Not Available Price: |
| 12 |
62503006050 |
COVER ENGINE SUPPORT RIGHT 05 Not Available Price: |
| 13 |
0991050102 |
Flat head screw DIN7991 M5X10 Price: Call Us |
| 14 |
55530044000 |
Collar nut M10-SW13 ZnNi This part replaces 54630044000. Price: Call Us |
| 17 |
58303070100 |
BUMP RUBBER M8X25MM Price: Call Us |
| 18 |
0934080003 |
Hexagon nut DIN934 M8 Price: Call Us |
| 19 |
54403135000 |
PLASTIC CAP SFL10 Price: Call Us |
| 24 |
60003098000 |
RUBBER SLEEVE 03 Price: Call Us |
| 25 |
58403060000 |
CHAIN ROLL 12X29X22,5 '98 Price: Call Us |
| 26 |
58403060065 |
BUSH CHAIN ROLL 8X12X23 '98 Price: Call Us |
| 27 |
0025080406 |
HH COLLAR SCREW M8X40 TX40 This part replaces 0015080403. Price: Call Us |
| 28 |
36003014000 |
LOCK WASHER 8MM Price: Call Us |
| 30 |
6250300210092 |
SUB FRAME 07 Not Available This part replaces 62503002100. Price: |
| 31 |
60003004027 |
FL.HEAD SCREW M10X1,25 L=27 03 Price: Call Us |
| 32 |
60003001051 |
COLLAR BUSHING 10X15X25X4 03 Price: Call Us |
| 40 |
5030314013390 |
FOOTPEG L.+R. CPL. 03 Price: Call Us |
| 46 |
60003088000 |
PLASTIC CAP FOR M6 03 Price: Call Us |
| 50 |
78003040050 |
FOOTREST L/S 08 This part replaces 59003040250. Price: Call Us |
| 51 |
78003041050 |
FOOTREST R/S 08 This part replaces 59003041250. Price: Call Us |
| 56 |
54803044000 |
PIN FOR FOOT PED 51.5X9.8 MM Price: Call Us |
| 57 |
54603041000 |
FOOTREST SPRING L/S R/S Price: Call Us |
| 59 |
0094032250 |
PIN DIN 0094-3.2X25 NIRO This part replaces 0094032253. Price: Call Us |
| 61 |
63003094000 |
FRAME PROTECTION SET 06 Not Available Price: |
| 62 |
44011076305 |
CABLE TIE 300/4,8MM BLACK Price: Call Us |
| 63 |
0025060166 |
HH collar screw M6x16 TX30 This part replaces 0015060163. Price: Call Us |
| 64 |
79608152000 |
Collar bushing 6x11x16x5 MM This part replaces 50308052000. Price: Call Us |
| 65 |
0025060356 |
HH collar screw M6x35 TX30 This part replaces 0015060353. Price: Call Us |
| 66 |
0025060306 |
HH collar screw M6x30 TX30 This part replaces 0015060303. Price: Call Us |
| 98 |
60004076110 |
CHAIN SLIDING KIT BELOW Price: Call Us |
