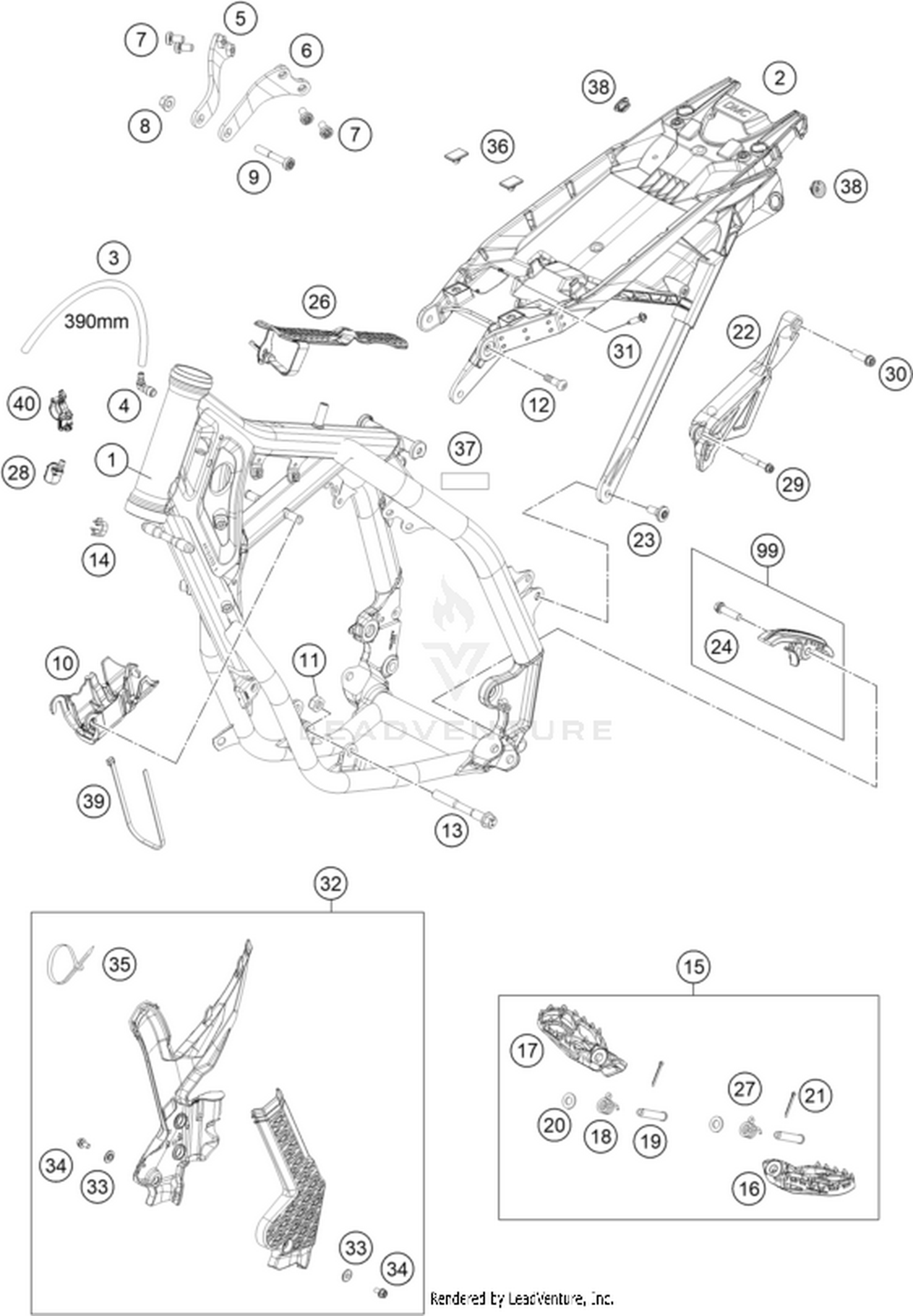

03 FRAME
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A41003001000EB | Frame Price: Call Us |
| 2 | A41003002000 | Subframe Price: Call Us |
| 3 | 50335030001 | PVC-HOSE 6X9 Price: Call Us |
| 4 | 51030022000 | ANGLE PIECE 90 DEGREE M10X1 Price: Call Us |
| 5 | A41003014000 | Engine brace right Price: Call Us |
| 6 | A41003013000 | Engine brace left Price: Call Us |
| 7 | 0035080156S | AH-COLLAR SCREW M8X15 TORX45 Price: Call Us |
| 8 | 54310086200 | Self locking nut M8 10.9 Price: Call Us |
| 9 | 0035080506S | AH collar screw M8x50 ISA45 Price: Call Us |
| 10 | A41011093000 | Cable compartment Price: Call Us |
| 11 | 54310086100 | SELF LOCKING NUT M10 CU WS=14 Price: Call Us |
| 12 | 09000008016U0 | Special screw M8x16 ISA45 self Price: Call Us |
| 13 | 47003013000 | ENGINE BRACKET SCREW 85 SX Price: Call Us |
| 14 | 57013072100 | WIRING HOLDER 16MM Price: Call Us |
| 15 | A41003037033 | Footpeg set Price: Call Us |
| 16 | A41003040000 | Footpeg left Price: Call Us |
| 17 | A41003041000 | Footpeg right Price: Call Us |
| 18 | A46003045000 | Footrest spring right Price: Call Us |
| 19 | 54803044000 | PIN FOR FOOT PED 51.5X9.8 MM Price: Call Us |
| 21 | 0094032250 | PIN DIN 0094-3.2X25 NIRO Price: Call Us |
| 22 | 47203096100 | Front sprocket cover Price: Call Us |
| 23 | 79003003000 | Special screw M8X18 TORX45 SL Price: Call Us |
| 24 | 0025080306 | HH collar screw M8x30 Price: Call Us |
| 26 | A41007012000 | Fuel tank rubber support Price: Call Us |
| 27 | A46003044000 | Footrest spring left Price: Call Us |
| 29 | 0025060406 | HH collar screw M6x40 TX30 Price: Call Us |
| 30 | 0025080256 | HH collar screw M8x25 Price: Call Us |
| 31 | 0017060205 | SCREW FOR PLASTIC K60X20 SW6 Price: Call Us |
| 33 | 54803092060 | Bush f. frame protection 03 Price: Call Us |
| 34 | 0025050106 | HH collar screw M5x10 TX30 Price: Call Us |
| 35 | 44011076200 | CABLE TIE 200/3,6MM BLACK Price: Call Us |
| 36 | 77307040041 | Isolation pad Price: Call Us |
| 37 | A40007012000 | Protective film trans. 80x40mm Price: Call Us |
| 39 | 44011076305 | CABLE TIE 300/4,8MM BLACK Price: Call Us |
