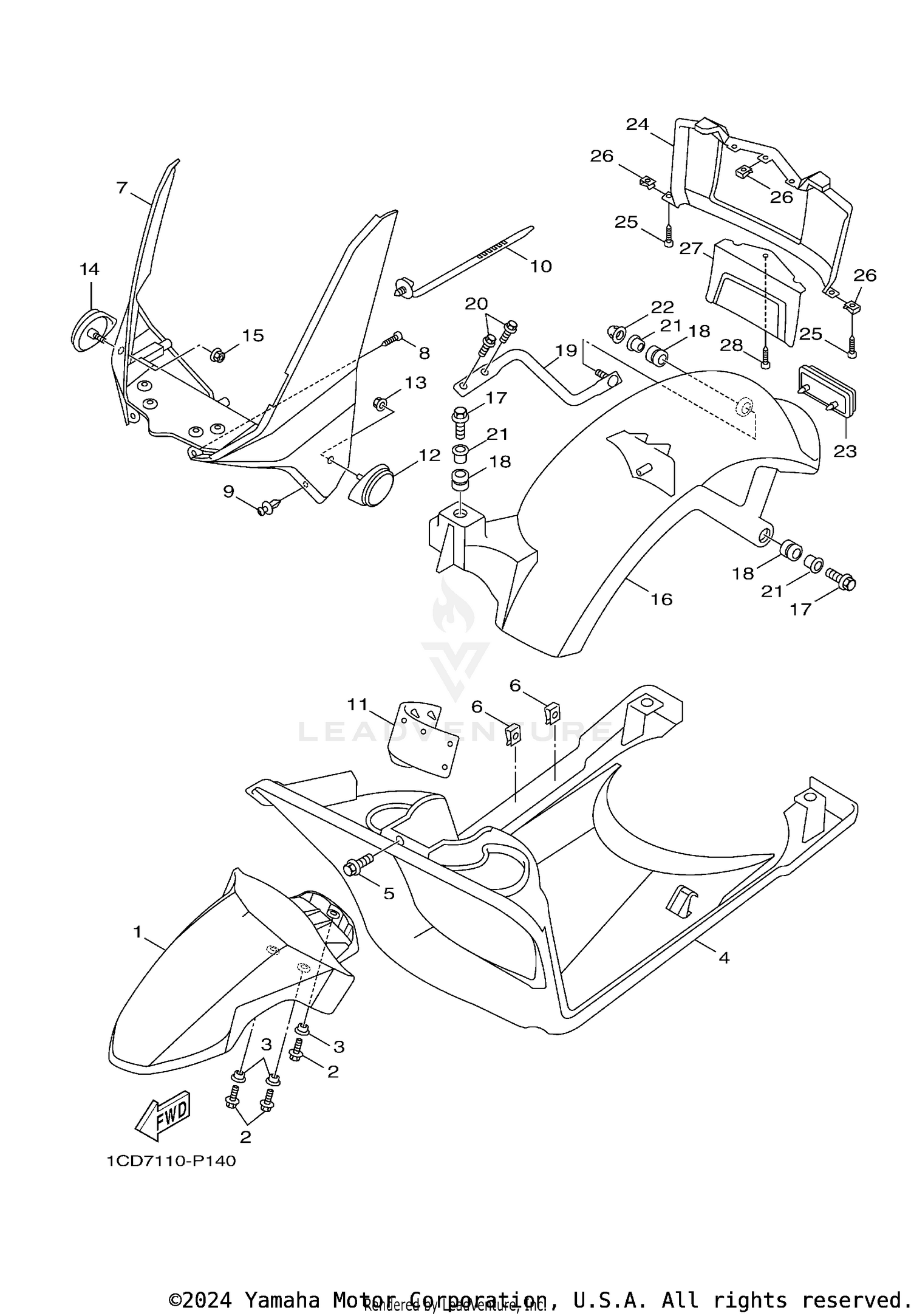

| Ref | Part Number | Description |
|---|
| 1 |
1CD-F1511-00-00 |
FENDER, FRONT Price: $13.49 |
| 2 |
90119-06821-00 |
BOLT, WITH WASHER Price: $1.80 |
| 3 |
90387-068F8-00 |
COLLAR Price: $1.15 |
| 4 |
1VC-F1552-00-00 |
FENDER, INNER Price: $131.99 |
| 5 |
90119-06821-00 |
BOLT, WITH WASHER Price: $1.80 |
| 6 |
90183-05827-00 |
NUT, SPRING This part replaces 90183-05816-00. Price: $1.65 |
| 7 |
1CD-F1519-00-00 |
MOLE, FENDER Price: $28.99 |
| 8 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 9 |
90269-06808-00 |
RIVET Price: $1.85 |
| 10 |
90464-30802-00 |
CLAMP Price: $1.15 |
| 11 |
1VC-F151B-00-00 |
CAP Price: $6.49 |
| 12 |
1CD-H5110-00-00 |
REFLECTOR ASSY Price: $6.49 |
| 13 |
95707-06500-00 |
NUT, FLANGE Price: $1.00 |
| 14 |
1CD-H5120-00-00 |
FRONT REFLECTOR ASSY 2 Price: $4.55 |
| 15 |
95707-06500-00 |
NUT, FLANGE Price: $1.00 |
| 16 |
3B3-F1611-01-00 |
FENDER, REAR Price: $18.49 |
| 17 |
90119-06096-00 |
BOLT, WITH WASHER Price: $4.30 |
| 18 |
90480-12237-00 |
GROMMET Price: $3.10 |
| 19 |
3B3-F1613-00-00 |
STAY, FENDER 1 Price: $9.49 |
| 20 |
95817-06014-00 |
BOLT, FLANGE Price: $2.80 |
| 21 |
90387-087L0-00 |
COLLAR Price: $9.49 |
| 22 |
90176-06008-00 |
NUT, CROWN Price: $2.85 |
| 23 |
3B3-H5150-00-00 |
PANEL, SIDE Price: $2.40 |
| 24 |
1CD-F1629-00-00 |
GUARD, MUD Price: $11.49 |
| 25 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING Price: $4.63 |
| 26 |
90183-05827-00 |
NUT, SPRING This part replaces 90183-05816-00. Price: $1.65 |
| 27 |
1CD-F162S-00-00 |
GUARD, DRESS Price: $4.65 |
