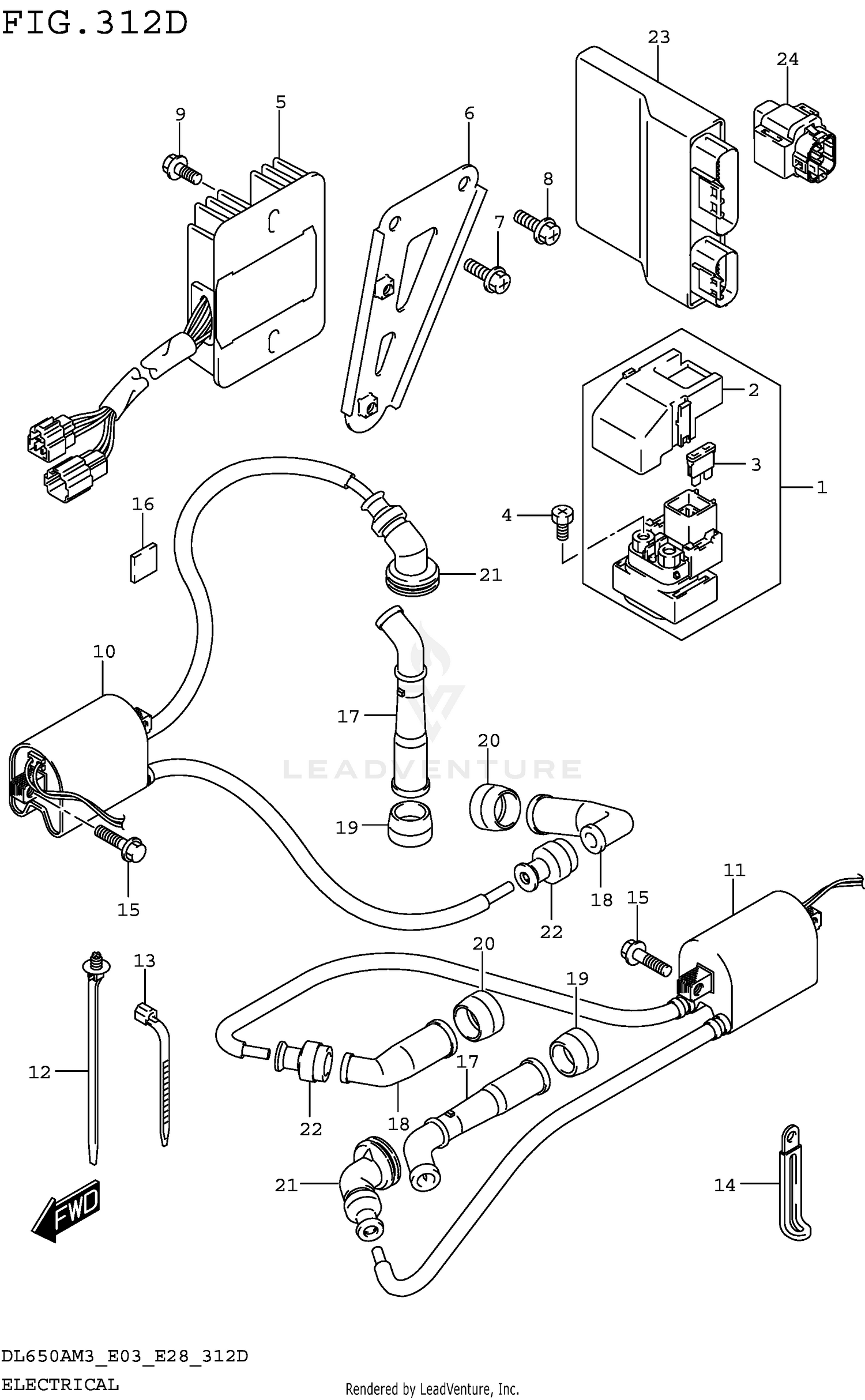

ELECTRICAL (DL650XAM3E03)
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31800-06G02 | RELAY ASSY, STARTING MOTOR Price: $83.16 |
| 4 | 09128-06013 | SCREW (6X8) Price: $1.50 |
| 5 | 32800-47H00 | RECTIFIER ASSY Price: $325.09 |
| 6 | 32830-11J00 | BRACKET, RECT FTG Price: $11.34 |
| 7 | 02162-0616B | SCREW (6X16) This part replaces 02162-0616A. Price: $2.48 |
| 8 | 02162-0610A | SCREW Price: Call Us |
| 9 | 02162-0616B | SCREW (6X16) This part replaces 02162-0616A. Price: $2.48 |
| 10 | 33410-27G02 | COIL ASSY, IGNITION Price: $136.12 |
| 11 | 33420-27G03 | COIL ASSY, IGNITION REAR Price: $143.12 |
| 12 | 09407-17403 | CLAMP (L:170) Price: $6.24 |
| 13 | 09407-18402 | CLAMP (L:165) Price: $2.68 |
| 14 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
| 15 | 01547-0625A | BOLT Price: $2.45 |
| 16 | 92213-33G00 | CUSHION,HELMET BOX (60X60X3.0 Price: $7.62 |
| 23 | 32920-28K52 | CONTROL UNIT, FI Price: $1,357.07 |
