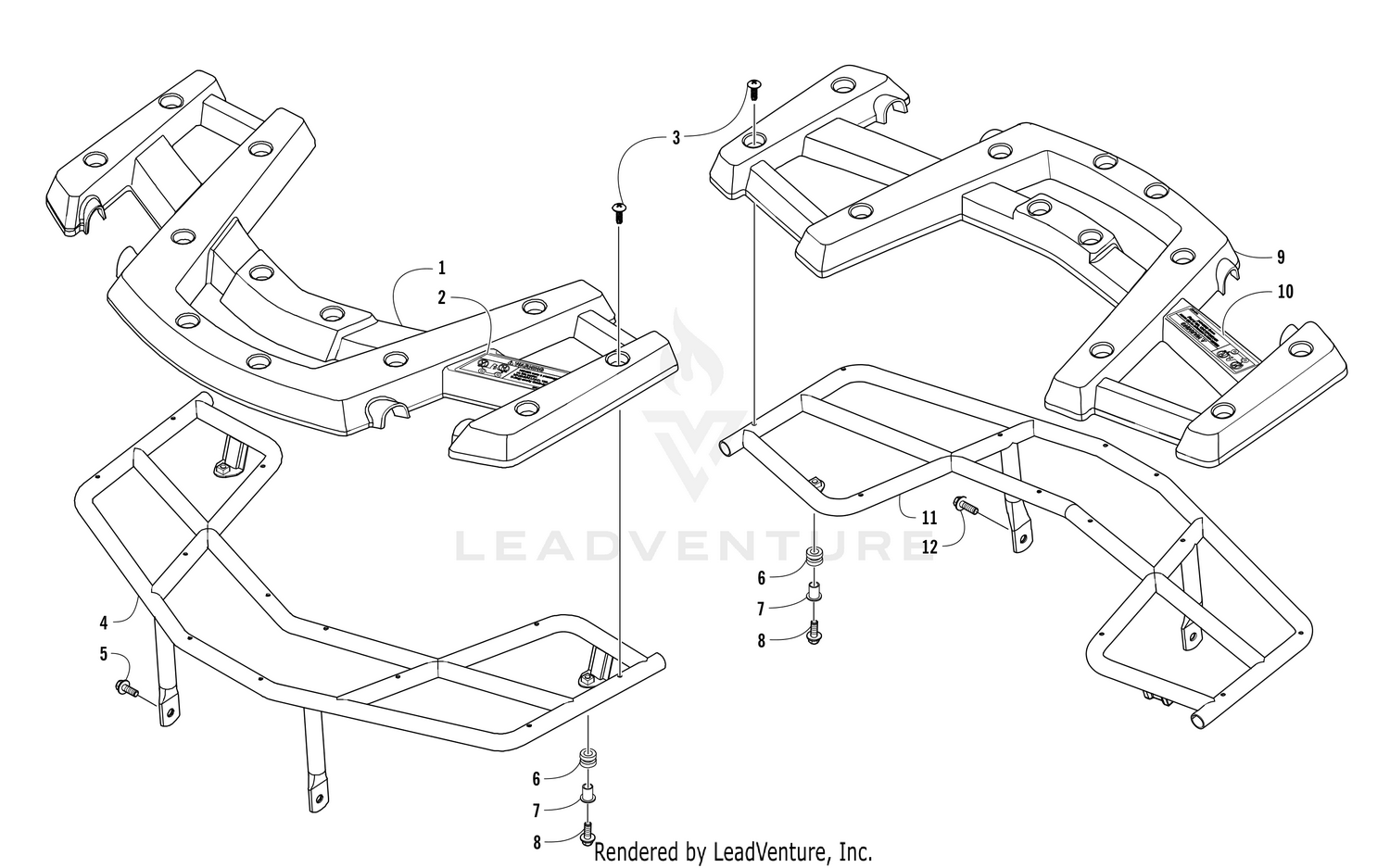

FRONT AND REAR RACK ASSEMBLY [302210]
![FRONT AND REAR RACK ASSEMBLY [302210]](https://cdn.datamanager.arinet.com/image/ARCT/51dcdcde-834f-4405-99a0-4142601b2e86/Max)
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 5411-394 | DECAL,WARNING-PASSENGER (XR 90) Price: $5.65 |
| 3 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) Price: $1.56 |
| 4 | 3307-690 | FRONT CARRIER LUGGAGE Price: $188.95 |
| 5 | 3304-543 | BOLT FLANGE 8*16 Price: $1.56 |
| 6 | 3303-227 | RUBBER WIND SCREEN Price: $2.18 |
| 7 | 3303-233 | COLLAR FLOOR Price: $2.65 |
| 8 | 3304-586 | BOLT WASHER 6*20 Price: $1.27 |
| 10 | 1411-317 | DECAL,WARNING-RACK(15 LB.) Price: $24.93 |
| 11 | 3307-691 | REAR CARRIER LUGGAGE Price: $171.95 |
