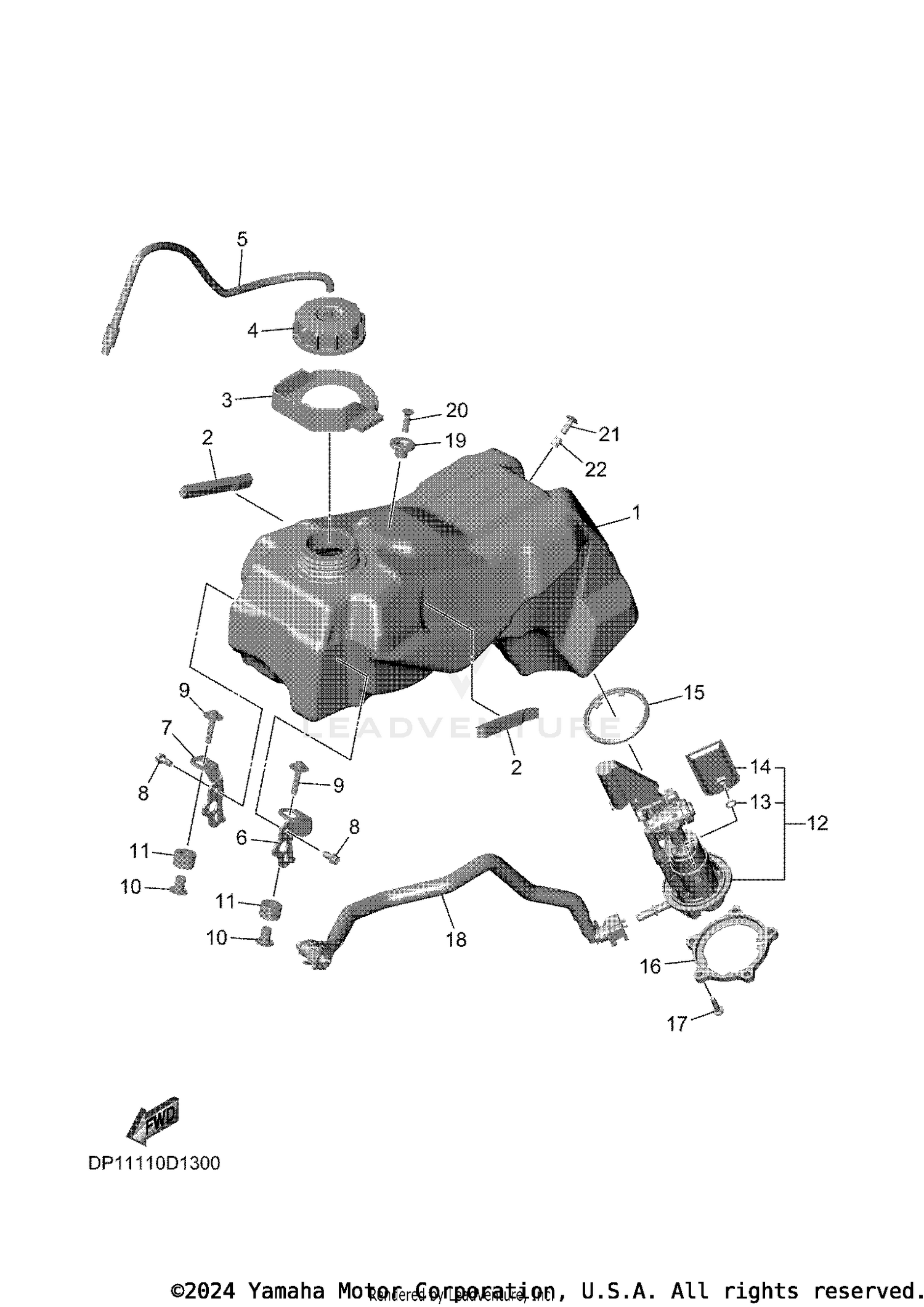

| Ref | Part Number | Description |
|---|
| 1 |
BNL-24110-00-00 |
FUEL TANK COMP. Price: $652.99 |
| 2 |
90520-10045-00 |
DAMPER, PLATE Price: $2.90 |
| 3 |
BNK-24188-00-00 |
MOLD, FUEL TANK Price: $58.99 |
| 4 |
BR9-24610-00-00 |
CAP ASSY Price: $74.99 |
| 5 |
90445-08050-00 |
HOSE Price: $9.49 |
| 6 |
BNK-24115-00-00 |
STAY, FUEL TANK 1 Price: $18.49 |
| 7 |
BNK-24116-00-00 |
STAY, FUEL TANK 2 Price: $19.49 |
| 8 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 9 |
90119-06262-00 |
BOLT, WITH WASHER Price: $9.49 |
| 10 |
90387-06136-00 |
COLLAR Price: $8.49 |
| 11 |
90480-14038-00 |
GROMMET Price: $18.49 |
| 12 |
BNK-13907-00-00 |
FUEL PUMP COMP. Price: $562.99 |
| 13 |
3C1-24512-00-00 |
GASKET Price: $24.99 |
| 15 |
B3J-2414G-00-00 |
SEAL Price: $18.49 |
| 16 |
B3J-24491-00-00 |
BRACKET, FUEL PUMP Price: $76.99 |
| 17 |
90110-05058-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 18 |
BNK-13971-00-00 |
PIPE, FUEL 1 Price: $107.99 |
| 19 |
4EW-2412F-00-00 |
BRACKET, SEAT Price: $15.49 |
| 20 |
90151-06005-00 |
SCREW, COUNTERSUNK Price: $10.49 |
| 21 |
90149-06021-00 |
SCREW Price: $9.49 |
