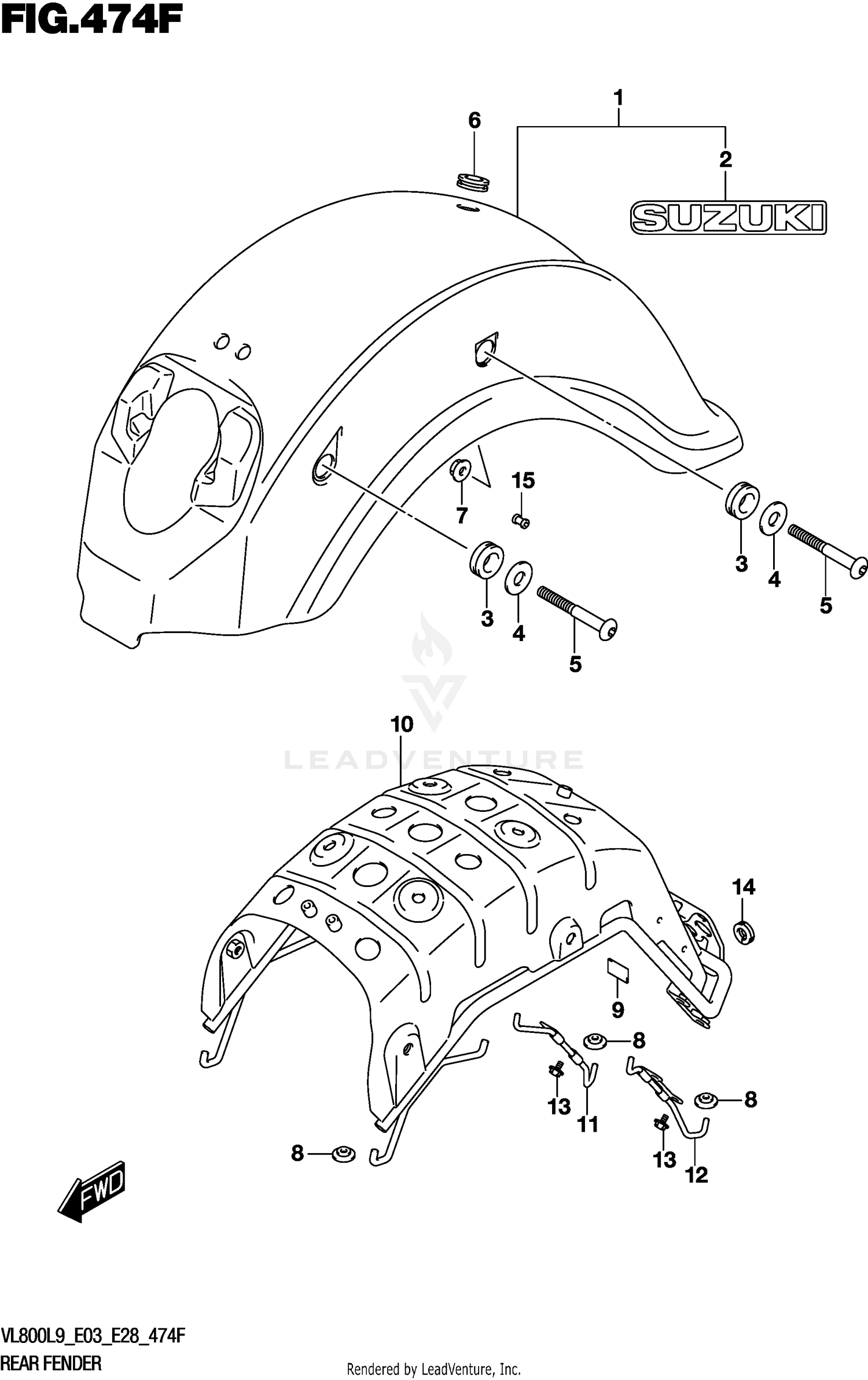

REAR FENDER (VL800TL9 E33)
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 63110-43H01-YVB | FENDER,REAR This part replaces 63110-43H00-YVB. Price: $548.39 |
| 3 | 47191-24F00 | CUSHION (16X26X8) Price: $6.57 |
| 4 | 09160-15002 | WASHER (15.5X26X2.3) Price: $1.99 |
| 5 | 63161-41F00 | BOLT,REAR FENDER Price: $11.95 |
| 6 | 09320-15008 | CUSHION Price: $4.81 |
| 7 | 08316-1008B | NUT Price: $3.21 |
| 8 | 09320-06026 | CUSHION Price: $4.31 |
| 9 | 53145-17C12 | CUSHION,FR FEND This part replaces 53145-17C11. Price: $5.53 |
| 10 | 63130-43H00 | REINF,REAR FENDER Price: $450.56 |
| 11 | 63150-43H00 | BRACKET,RR FENDER LWR,R Price: $44.27 |
| 12 | 63160-43H00 | BRACKET,RR FENDER LWR,L Price: $44.27 |
| 13 | 01550-0610B | BOLT Price: $2.95 |
| 14 | 09308-10017 | GROMMET (10X35X9.5) Price: $5.47 |
