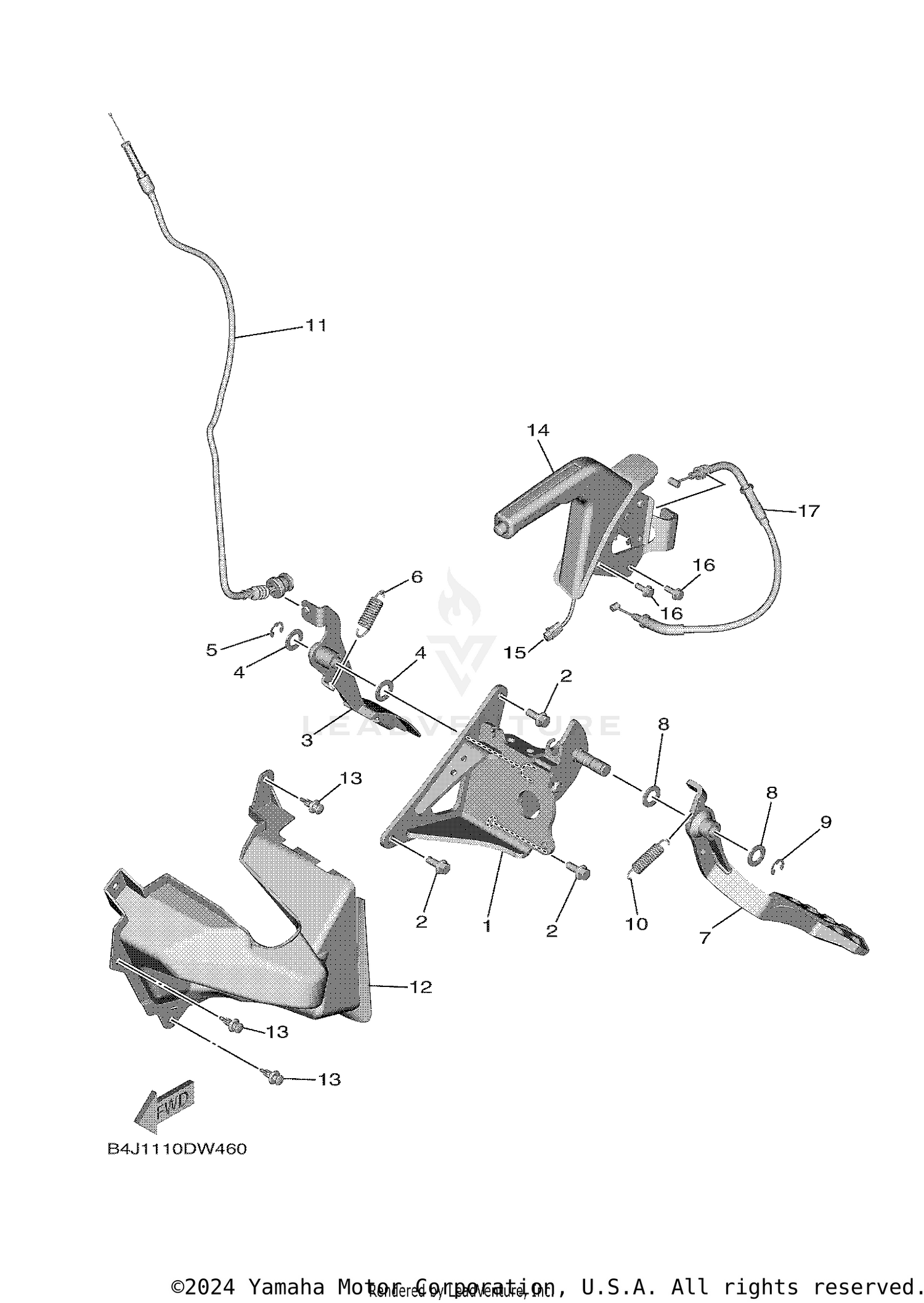

| Ref | Part Number | Description |
|---|
| 1 |
1XD-F2548-10-00 |
BRACKET, PEDAL SUPPORT Price: $66.99 |
| 2 |
95812-08020-00 |
BOLT, FLANGE Price: $2.80 |
| 3 |
B4J-F7801-00-00 |
ACCEL PEDAL ASSY Price: $31.99 |
| 4 |
90201-15018-00 |
WASHER, PLATE Price: $8.49 |
| 5 |
93430-12008-00 |
CIRCLIP, E-TYPE Price: $9.49 |
| 6 |
90506-23023-00 |
SPRING, TENSION Price: $5.99 |
| 7 |
B4J-F7200-00-00 |
PEDAL, BRAKE Price: $30.99 |
| 8 |
90201-15018-00 |
WASHER, PLATE Price: $8.49 |
| 9 |
93430-12008-00 |
CIRCLIP, E-TYPE Price: $9.49 |
| 10 |
90506-20192-00 |
SPRING, TENSION Price: $8.49 |
| 11 |
B4J-26311-00-00 |
WIRE, THROTTLE 1 Price: $52.99 |
| 12 |
B4J-F1620-00-00 |
MUD GUARD COMP. Price: $10.99 |
| 13 |
90269-07805-00 |
RIVET Price: $1.75 |
| 14 |
B4J-F5690-11-00 |
PARKING LEVER ASSY Price: $98.99 |
| 16 |
95D32-08016-00 |
BOLT, FLANGE DEEP RECESS Price: $1.60 |
