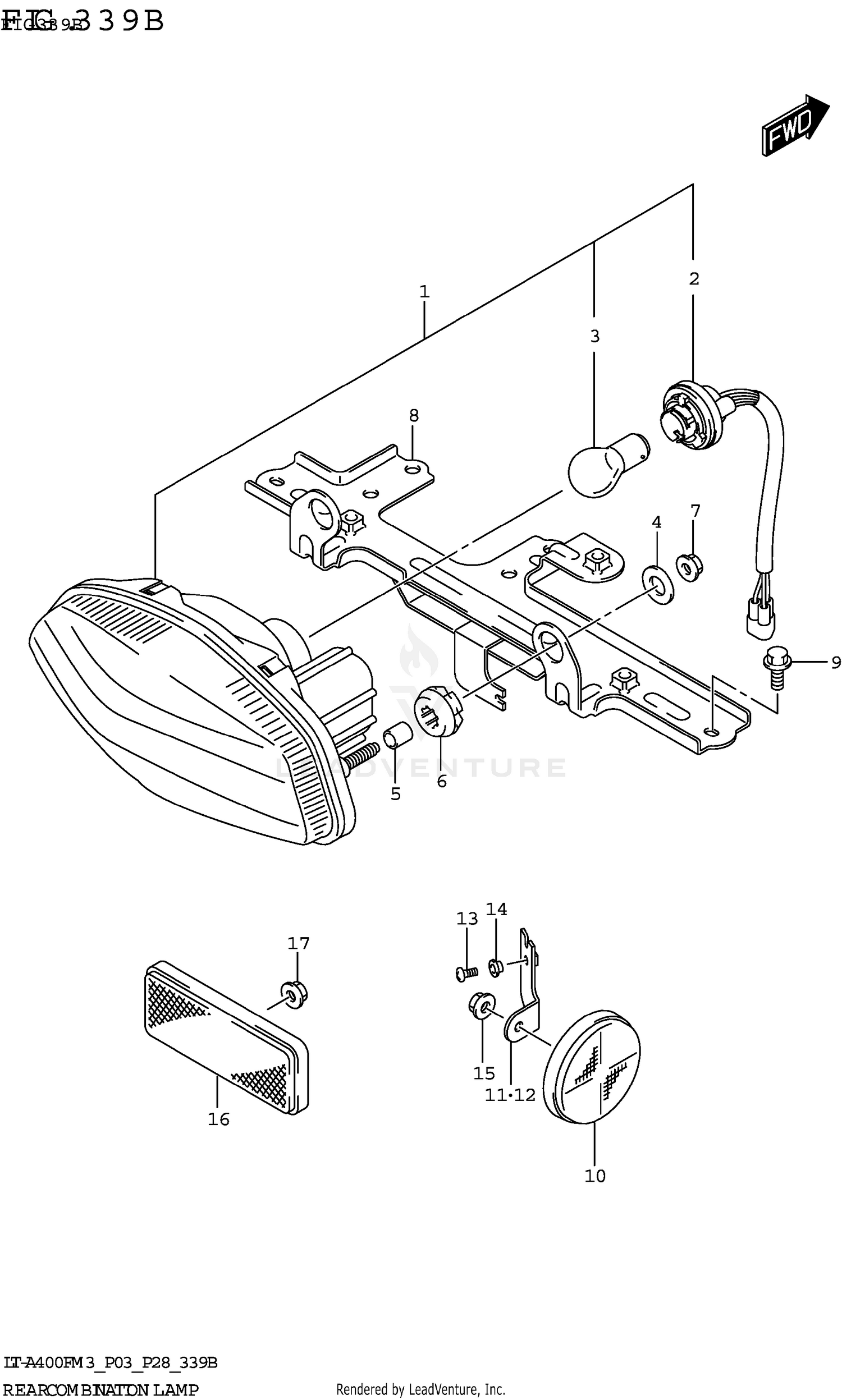

REAR COMBINATION LAMP
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35710-31G00 | LAMP ASSY,REAR COMB Price: $89.50 |
| 4 | 09160-06077 | WASHER (6.5X20X1.2) Price: $2.30 |
| 5 | 09180-06264 | SPACER (6.5X9X10.5) Price: $2.75 |
| 6 | 09320-09018 | CUSHION Price: $2.58 |
| 7 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 8 | 35720-27H30 | BRACKET,REAR COMB LAMP Price: $33.62 |
| 9 | 01550-0612A | BOLT Price: $2.37 |
| 10 | 35970-14A20 | REFLECTOR ASSY, RR SIDE Price: $19.20 |
| 11 | 35975-27H00 | BRACKET,REAR SIDE RR RH Price: $5.49 |
| 12 | 35976-27H00 | BRACKET,REAR SIDE RR LH Price: $6.95 |
| 13 | 09125-05073 | SCREW (5X8) Price: $2.50 |
| 14 | 09169-06071 | WASHER Price: $3.02 |
| 15 | 08316-1005A | NUT Price: $2.64 |
| 16 | 35970-07F01 | REFLECTOR ASSY,RR Price: $25.79 |
