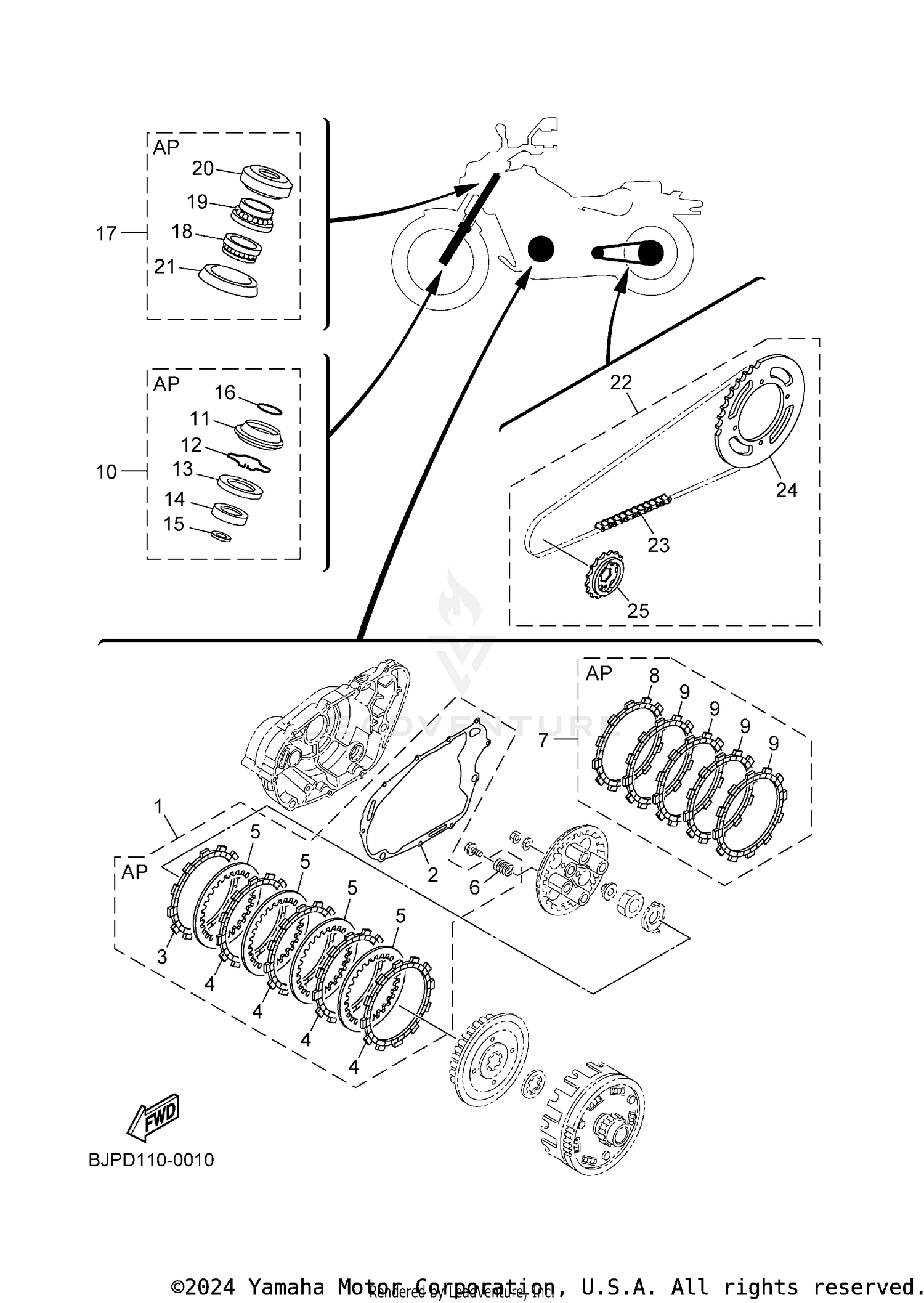

| Ref | Part Number | Description |
|---|
| 2 |
4RF-15461-01-00 |
GASKET, CRANKCASE COVER 2 Price: $28.99 |
| 3 |
4H7-16321-02-00 |
PLATE, FRICTION This part replaces 31A-16321-01-00. Price: $25.99 |
| 4 |
5Y1-16331-01-00 |
PLATE, FRICTION 2 Price: $32.99 |
| 5 |
3J2-16324-10-00 |
PLATE, CLUTCH 1 Price: $11.99 |
| 6 |
90501-26148-00 |
SPRING, COMPRESSION Price: $5.49 |
| 8 |
4H7-16321-02-00 |
PLATE, FRICTION This part replaces 31A-16321-01-00. Price: $25.99 |
| 9 |
5Y1-16331-01-00 |
PLATE, FRICTION 2 Price: $32.99 |
| 11 |
2UJ-23144-00-00 |
SEAL, DUST Price: $32.99 |
| 12 |
22W-23153-L0-00 |
RING, SNAP Price: $9.49 |
| 13 |
2UJ-23145-00-00 |
OIL SEAL Price: $24.99 |
| 14 |
51Y-23125-00-00 |
METAL, SLIDE 1 Price: $32.99 |
| 16 |
3J2-23114-00-00 |
O-RING Price: $9.49 |
| 18 |
93399-99942-00 |
BEARING Price: $92.99 |
| 19 |
93399-99950-00 |
BEARING Price: $55.99 |
| 20 |
4HF-23415-00-00 |
COVER, BALL RACE 1 Price: $34.99 |
| 21 |
5VC-23462-00-00 |
SEAL, DUST Price: $8.99 |
| 23 |
9Y581-92113-00 |
CHAIN (DID520DMA2 SDH 114LL) This part replaces 94581-11114-00. Price: $116.99 |
| 24 |
4DN-25445-30-00 |
SPROCKET, DRIVEN (45T) Price: $50.99 |
